Our Static Var Generator is extremely versatile in terms of installation, as it comes in both rack/wall hanging and rack options. This means that it can be easily integrated into your existing setup, without requiring any major modifications.
If you're looking to maintain a stable electrical source, you need a product that can effectively deal with low power factors. Our Static Var Generator is designed to do just that - it increases the active energy losses of installations and improves their stability.
Communication is key when it comes to maintaining electrical source stability, which is why our Static Var Generator comes with a two-channel RS485 communication interface that supports GPRS/WIFI wireless communication. This means that you can easily monitor and control your electrical source from a remote location.
Our Static Var Generator has a reactive power compensation rate of over 95%, which means that it is highly effective at maintaining voltage and frequency control. It also comes equipped with a Generator Longitudinal Regulator, which further enhances its ability to maintain stability.
In summary, our Static Var Generator is the perfect product for those looking to maintain electrical source stability in a variety of environments. With its low noise levels, versatile installation options, and advanced communication and compensation features, it is the ultimate Electrical Source Stability Maintainer.

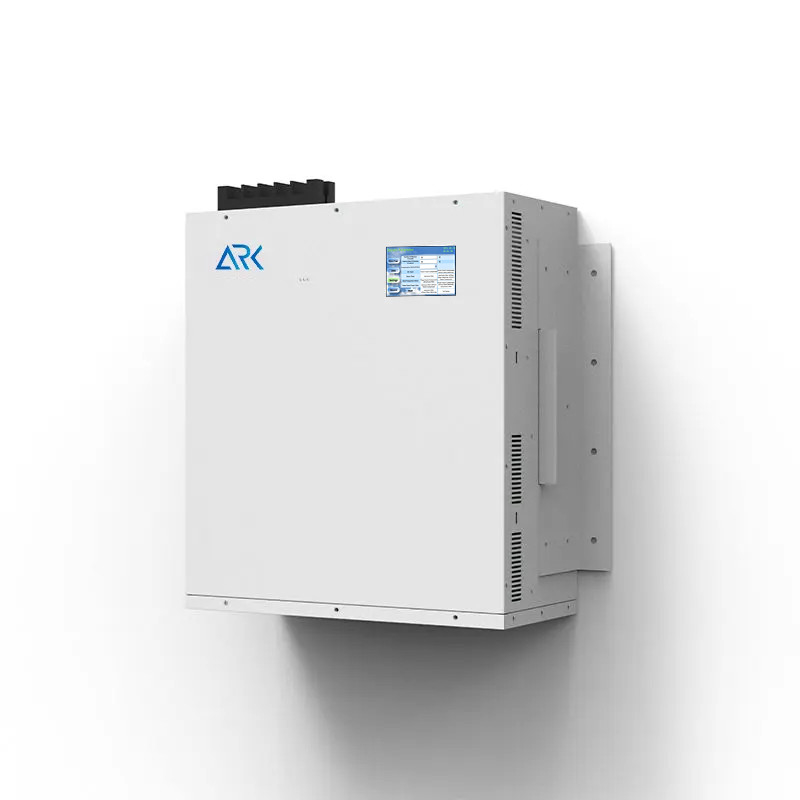

This product is an Electrical Source Stability Maintainer that also operates as a Power Variation Regulator . It provides Excellent Reactive Compensation with high speed and precision, and is capable of bi-directional compensation (capacitive and inductance) with step-less operation. The Waveform Display Function On HMI allows for easy monitoring of input voltage, grid current, load current, and SVG current. It is available in both back entry (rack type) and top entry (wall-mounted) configurations and has a High Stability with infinite impedance to grid, avoiding harmonic resonance problems. With a machine efficiency of over 97%, the Static Var Generator is a reliable and efficient solution for maintaining electrical source stability.
| Product Attribute | Technical Parameter |
| Machine Efficiency | >97% |
| Response Time | <10ms |
| Temperature | -20~+50°C |
| Waveform Display Function On HMI | Display Waveform Of Input Voltage, Grid Current, Load Current And SVG Current |
| Working Principle | The principle of the SVG is very similar to that of Active Power Filter, When the load is generating inductive or capacitive current, it makes load current lagging or leading the voltage. SVG detects the phase angle difference and generates leading or lagging current into the grid, making the phase angle of current almost the same as that of voltage on the transformer side, which means fundamental power factor is unit. YIY-SVG is also capable of correcting load imbalance. |
| Nominal Voltage | AC220V(-20%~+20%), AC380V(-20%~+20%), AC500V(-20%~+20%), AC690V(-20%~+20%) |
| Wide Capacity Range | 5~120 Kvar For A Single Cabinet, Up To 10 Cabinets In Parallel |
| Protection Function | Overload protection, hardware over-current protection, over-voltage protection, power grid voltage imbalance protection, power failure protection, over-temperature protection, frequency anomaly protection, short circuit protection, etc |
| Environmental Adaptability | -20~50°C Temperature, Compatible With Diesel Generators |
| Excellent Imbalance Correction | Both Negative And Zero Sequence, Mitigates Neutral Current |
| Product Name | Dynamic Reactive Power Compensator, Static Reactive Power Generator, Power Output Stabilizer |
The working principle of the SVG is similar to that of an Active Power Filter. It uses a Synchronous Machine Control Unit to detect the phase angle difference between the load current and voltage, and generates leading or lagging current into the grid to correct the power factor. It can also correct load imbalance, making it a versatile product for various scenarios.
The SVG has a minimum order quantity of 1 unit, and accepts payment terms of L/C and T/T. The delivery time is 15 days, and it can be installed either on a rack or wall. It can operate at altitudes below 2000m without derating, making it suitable for various locations. With its high machine efficiency and flexible application, the SVG is an effective solution for power quality improvement and voltage regulation.
The Static Var Generator (SVG) is a power electronics device that provides dynamic reactive power compensation in electrical power systems. Our product technical support and services include:
- On-site installation and commissioning services to ensure proper integration with your power system
- Technical training and support to help you operate and maintain your SVG
- Remote monitoring and diagnostic services to quickly identify and resolve any issues with your SVG
- Customized engineering solutions to meet your specific power quality needs
- Comprehensive maintenance and repair services to keep your SVG running at optimal performance
Product Packaging:
Shipping:
Q: What is the brand name of this product?
A: The brand name of this product is ARK.
Q: What is the model number of this product?
A: The model number of this product is SVG.
Q: Is this product certified?
A: Yes, this product is certified with CE.
Q: Where is this product made?
A: This product is made in China.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 unit.
Q: What are the payment terms for this product?
A: The payment terms for this product are L/C and T/T.
Q: What is the delivery time for this product?
A: The delivery time for this product is 15 days.
