90KVar Series Static Var Generator 500V High Reactive Power Compensation Rate

90KVar Series Static Var Generator 500V High Reactive Power Compensation Rate

Products - Static Var Generator
  • High Light

    90KVar Series Static Var Generator

    ,

    500V Static Var Generator

    ,

    Svg Power Factor Correction

  • Certifications
    CE, UL, IEC, IEEE
  • Communication Interface
    Modbus, Profibus, IEC 61850
  • Compensation Capacity
    90KVar
  • Control System
    Advanced Digital Signal Processor (DSP)
  • Life
    More Than 20 Years
  • Operating Temperature
    0-40°C
  • Overall Efficiency
    ≥97%
  • Power Grid Frequency
    50Hz/60Hz (range:±10%)
  • Rated Power
    Up To 50 Mvar
  • Response Time
    <10ms
  • Structure
    Modular Structure
  • Voltage
    Low Voltage
  • Voltage Range
    Up To 36 KV
  • Warranty
    2 Years
  • Weight
    Depends On Power Rating And Cooling Method
  • Place of Origin
    CHINA
  • Brand Name
    ARK
  • Certification
    CE
  • Model Number
    SVG
  • Minimum Order Quantity
    1UNIT
  • Delivery Time
    15
  • Payment Terms
    L/C, T/T

90KVar Series Static Var Generator 500V High Reactive Power Compensation Rate

  • 90KVar Series Static Var Generator 500V High Reactive Power Compensation Rate
  • 90KVar Series Static Var Generator 500V High Reactive Power Compensation Rate
  • 90KVar Series Static Var Generator 500V High Reactive Power Compensation Rate
Get Price Contact Now

Static Var Generator 90KVar Series 500V - High Reactive Power Compensation Rate

Products Description
90KVar Series Static Var Generator 500V High Reactive Power Compensation Rate 090KVar Series Static Var Generator 500V High Reactive Power Compensation Rate 1
Product Paramenters
TYPE
Series 220V
Series 400V
Series 500V
Series 690V
Max neutral w ire current
5KVar
10KVar15KVar/ 35KVar/50KVar/ 75KVar/100KVar
90KVar
120KVar
Nominal voltage
AC220V(-20%~+20%)
AC380V(-20%~+20%)
AC500V(-20%~+20%)
AC690V(-20%~+20%)
Rated frequency
50Hz±5%
Network
Single phase
Three-phase three-wire/three-phase four-wire
Response time
<10ms
Reactive power compensation rate
>95%
Machine efficiency
>97%
Switching frequency
32kHz
16kHz
12.8kHz
12.8kHz
Feature selection
Deal with harmonics/Deal with harmonics and reactive power
Deal with harmonics/Deal with harmonics and reactive power/ Deal with harmonics and three-phase unbalance /Three options
Numbers in parallel
No limitation. A single centralized monitoring module can be equipped with up to 8 power modules
Communication methods
Two-channel RS485 communication interface (support GPRS/WIFIwireless communication)
Altitude w ithout derating
<2000m
Temperature
-20~+50°C
Humidity

Pollution level
Below level Ⅲ
Protection function
Overload protection, hardware over-current protection, over-voltage protection, power grid voltage imbalance protection, power
failure protection, over-temperature protection, frequency anomaly protection, short circuit protection, etc
Noise
<50dB
<60dB
<65dB

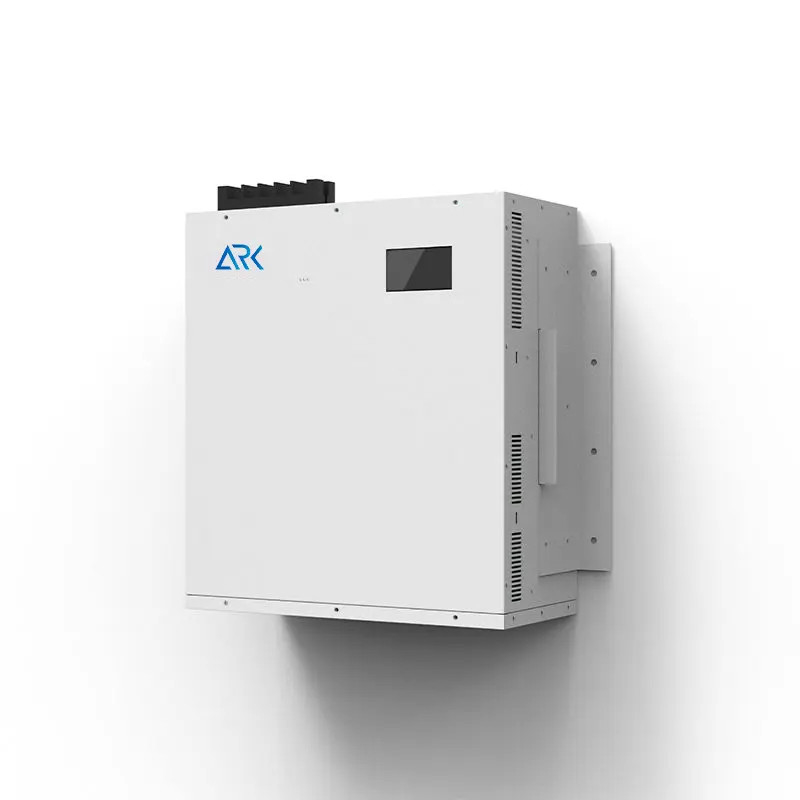

Installation
Rack/wall hanging
Rack
Into the way of line
Back entry (rack type), top entry (wall-mounted)
Top entry
Protection grade
IP20
