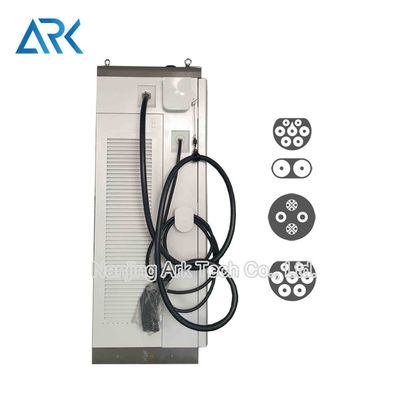

120KW CCS1 CCS 2 Fast Charger For Electric Vehicle

120KW CCS1 CCS 2 Fast Charger For Electric Vehicle

  • High Light

    CCS 2 Fast Charger For Electric Vehicle


    CCS1 Fast Charger For Electric Vehicle


    120KW fast charging points for electric cars

  • Warranty
    2 Years
  • Input Voltage Range
    400V +/-10%, 3-phase
  • Housing Material
  • Output Power
    CCS: 120kW, CHAdeMO: 60kW, AC: 22kW
  • Efficiency
  • Charging Standard
    CCS Combo-1/2, CHAdeMO & AC IEC 61851
  • Place of Origin
  • Brand Name
    ARK or OEM
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 unit
  • Price
  • Packaging Details
    wooden box
  • Delivery Time
    45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    200 sets per month

120KW CCS1 CCS 2 Fast Charger For Electric Vehicle

Ark Modular Charging System 120KW CCS 1 / 2 and CHAdeMO Floor - mounted Fast EV DC Charger Custom Paint and Branding



Product Introduction


ARK EF160 Fast Chargers from 60 kW to 120 kW are Quick Charging stations able to charge all EVs with CHAdeMO, CCS and AC Type-2 (fast) charging compliance.



Product Parameters


Housing material Metal enclosure
Dimension (H x W x D) 1900 x 700 x 700mm
Installation method Ground mount
Cable routing Bottom inlet, top outlet wiring
Weight 355kgs
Charging standard CCS combo-1/2, CHAdeMO & AC IEC 61851
Charging outlet CHAdeMO JEVS G105, CCS Combo-2, IEC 62196 Type-2
Outlet number 3
Input voltage 400Vac +/-10%, 3-phase
Input frequency 50Hz/60Hz
Power factor 0.99
Rated output power CCS: 60kW, CHAdeMO: 60kW, AC: 22kW CCS: 120kW, CHAdeMO: 60kW, AC:22kW
Measuring accuracy Level 0.5
Output voltage range 150 – 750V DC constant output @ above 300V, 400V AC
Output current range 0 - 200A DC, 32A AC 0 - 400A DC, 32A AC
Efficiency > 94% at rated output
Charging type Mode 4
User Interface RFID, 7” touch screen, Emergency button
Ethernet 10/100 BaseTX (TCP-IP)
Cellular LTE modem, GPRS/3G/4G
Communication CAN, PLC, PWM, OCPP 1.6 JSON
Application place Indoor/Outdoor
Working temperature -20 °C – +70 °C
Working humidity 5% – 95% non-condensation
Altitude < 2000m
Protection grade IP54
Cooling Fan cooling
Security design Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection


120KW CCS1 CCS 2 Fast Charger For Electric Vehicle 0120KW CCS1 CCS 2 Fast Charger For Electric Vehicle 1




Fast secured and proven charging process

After user identification, by simply choosing the charging standard compatible to the vehicle and coupling the charger’s output plug to the EV, the charging process will be fast secured and proven.


Easy charging

The battery charging status is displayed, and the charging cycle finishes by itself or can be terminated by a user command.


Different output options available

Different output options are available like CCS, CHAdeMO or AC, with different combinations like CCS-CHA-AC.



Company Details


ARK Tech is a manufacturer specialized in EV charging products. Apart from the factory, our company has other departments of design, R&D and customer service. Our main products include AC charging stations and DC charging stations. To better fit different market preferences and needs, we offer not only standard products but also customized ones upon requests.

120KW CCS1 CCS 2 Fast Charger For Electric Vehicle 2




Q: Do your charger support the OCPP function?

Yes, our charger support the OCPP 1.6, it can be connected to Internet via Ethernet, 3G/4G.


Q: How about the quality and warranty about the charger?

All of our chargers are CE certificated. We supply 12 months warranty for the charger, what'more, we supply whole life techinical support.



1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
