7KW 230V Portable EV Charger , Single Phase Portable Electric Vehicle Charging Station

7KW 230V Portable EV Charger , Single Phase Portable Electric Vehicle Charging Station

  • High Light

    7KW Portable EV Charger


    230V Portable EV Charger


    Single Phase portable electric vehicle charging station

  • Input Voltage
  • Output Voltage
    400V +/-10%
  • Housing Material
    Metal Shell
  • Rated Output Power
  • Warranty
    2 Years
  • Cooling
    Natural Cooling
  • Place of Origin
  • Brand Name
    ARK or OEM
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
  • Delivery Time
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000 units per month

7KW 230V Portable EV Charger , Single Phase Portable Electric Vehicle Charging Station

Electric Vehicle EV Wall Mounted Charging Station 22kw 32Amp EV Charger Station with CE

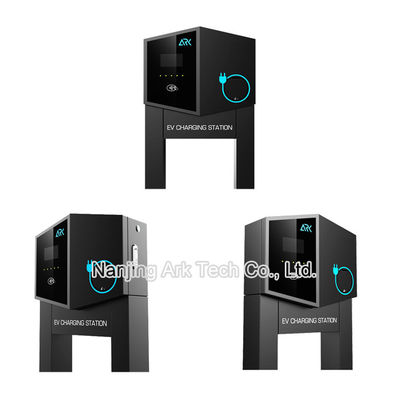

Product Introduction


AKEV22 charger adopts modern design, which conforms to the aesthetics of European and American customers.With RFID, Ethernet and LTE functions, it is suitable for charging applications in shopping malls and companies. It supports the OCPP1.6J protocol, which enables it to be connected and run with the global EV charging management platform.

Product Parameters


Technical specifications AKEV22
Housing material Metal enclosure
Dimension (H x W x D) 300*450*160mm, 1200*450*160mm (pedestal mount)
Installation method Wall mount, pedestal mount (optional)
Cable routing Bottom inlet wiring
Weight N.W.: 11kg
Charging standard IEC 61851-22
Charging outlet Type-2 socket or connector
Outlet number 1
Input voltage 230Vac +/-10% 1-phase 400Vac +/-10%, 3-phase
Input frequency 50Hz/60Hz
Max output power 7kW 22kW
Measuring accuracy Level 0.5
Output voltage range 230Vac +/-10% 1-phase 400Vac +/-10%, 3-phase
Output current range 32A
RCCB Type-B, sensitivity: 30mA
Charging type Mode 3
User Interface RFID, LCD Display
AC connector type IEC 62196 Type-2
Communication PWM, Ethernet, LTE, OCPP 1.6J
Application place Indoor/Outdoor
Working temperature -30 °C – +50 °C
Working humidity 5% – 95% non-condensation
Altitude <2000m
Protection grade IP55
Cooling Natural cooling
Safety standard Compliant with CE, EN 61851-1-2001; EN 61851-21-2001; EN 61851-22-2001
Security design Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection


7KW 230V Portable EV Charger , Single Phase Portable Electric Vehicle Charging Station 07KW 230V Portable EV Charger , Single Phase Portable Electric Vehicle Charging Station 1


Compact design
7KW, 11KW and 22KW AC quick charge
Easy to install or refit in different locations
Sunlight readable 4.3 "full color touch screen display
Open Charging Point Protocol (OCPP)
Shopping mall
Company charging
Parking lot
Company Introduction
Ark Tech is a manufacturer specializing in electric vehicle charging products. In addition to the factory, the company also has design, research and development, customer service and other departments. The main products are AC charging stations and DC charging stations. In order to better adapt to different market preferences and needs, we not only provide standard products, but also customized according to requirements.
7KW 230V Portable EV Charger , Single Phase Portable Electric Vehicle Charging Station 2



Q1. What is your terms of packing?
A: Generally, we pack our goods in cartons or wooden box.


Q2. What is your terms of payment?
A: Paypal,TT,Western union,a trade assurance,L/C .

Q3. What is your terms of delivery?How do you deliver your goods to me?How long will it take?
A: FOB, CFR, CIF, DDU,DAP.We have various ways of shipment for customers to choose, DHL, TNT, UPS, Air freight, Ocean freight. If not have the special requirements, the weight of products less than 50kgs will be arranged by DHL (3-5 days arrive), the weight of products more than 50 kgs will be arranged by Ocean freight (around 30 days arrive). But pls note that this is just the time of transportation, the producing time of products will be varied from 10days to 45 days based on the quantity of order, the level of busyness in production line.


Q4. How about your delivery time?
A: Generally, it will take 5-7days for samples and 15-20days for mass production order after receiving your advance payment or deposit. The specific delivery time depends on the product of your order.


Q5. What is your sample policy?
A: We can supply the sample, the customers have to pay the sample cost and the courier cost.


Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery


Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.


Q8. Do your products have quality certification? How long is the warranty time?
All of our EV charging products posses with CE certifications, 24 months warranty for ev charger.


Q9. Can we require you to print our logo on your products?
We support OEM production, but the order quantity must be more than 25pcs.

Q10. How is your product quality? In case of problem occurs, what should I do?
Firstly, we sell our products for several years, we have the professional engineer team in this field. Moreover, our products have to pass strict inspections and repeated tests before they go out, rate of fine variety is 99.98%. If it is the quality which lead to the failure in use, we will provide the new one to replace for free.
