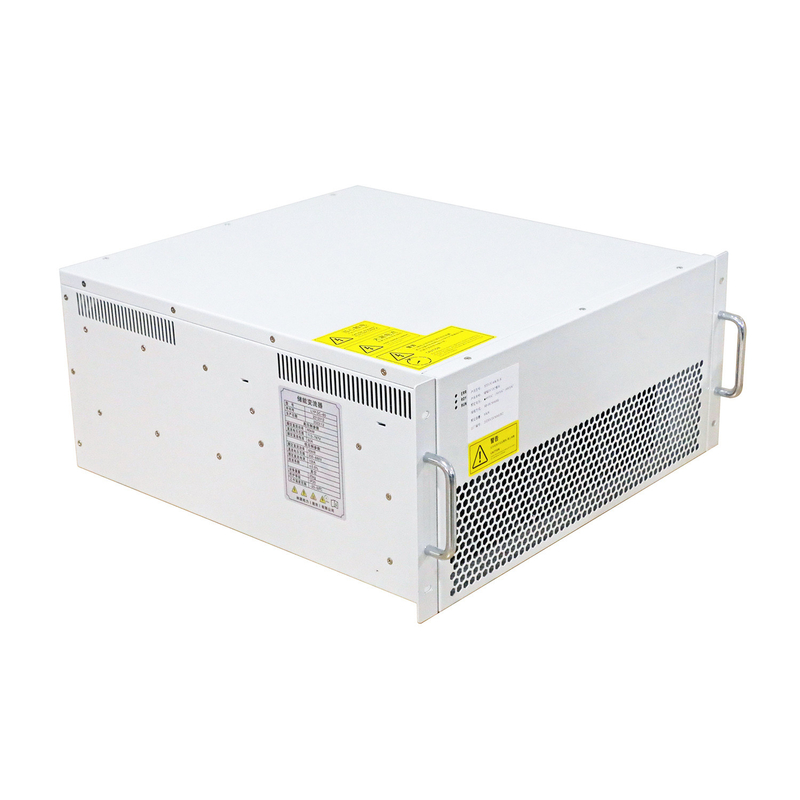

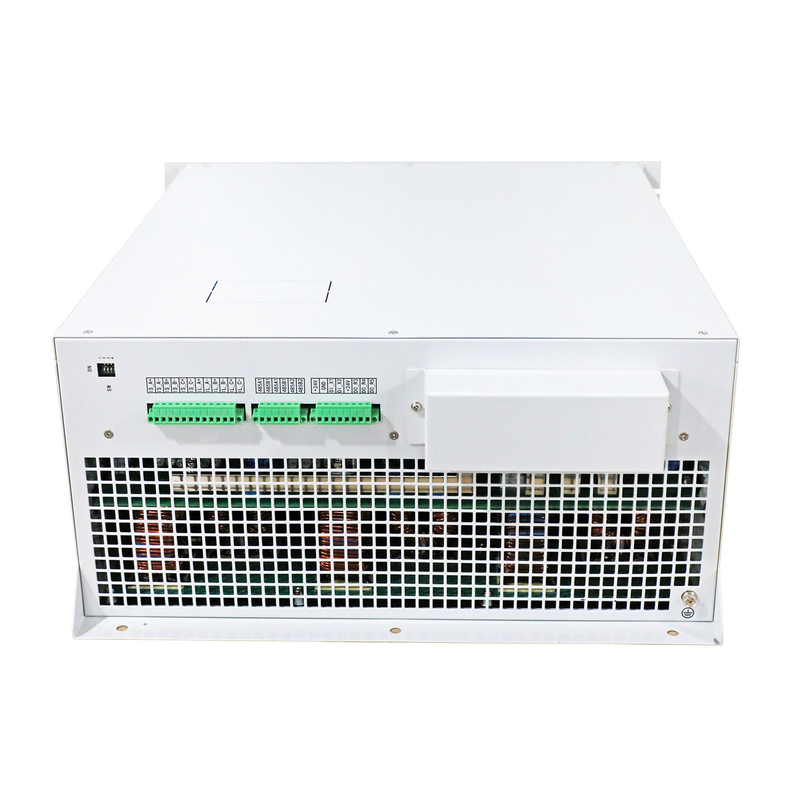

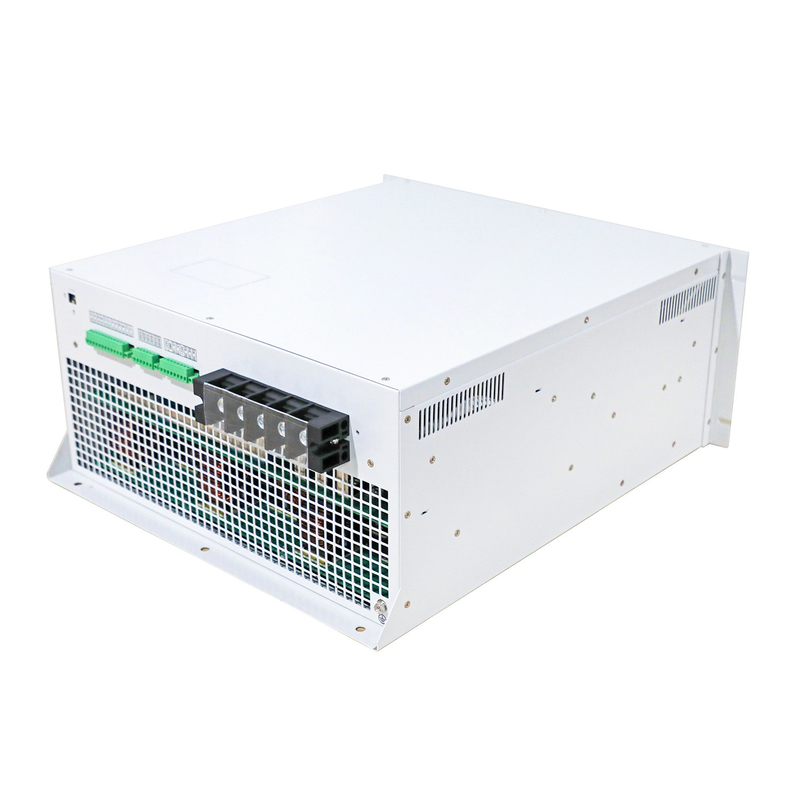

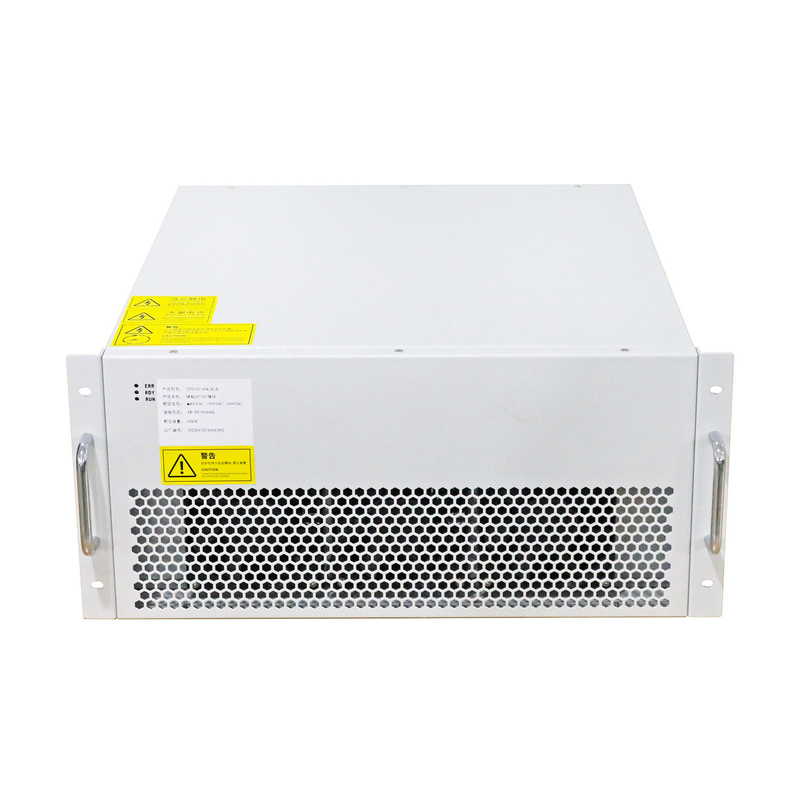

Customizable Static Var Generator for Industrial Three-Phase Options

Customizable Static Var Generator for Industrial Three-Phase Options

  • High Light

    Industrial Static Var Generator

    ,

    3Phase Options Static Var Generator

    ,

    Three Phase Static Var Generator

  • Compact Size
    Yes
  • Compensation Capacity
    90KVar
  • Control System
    Digital
  • High Efficiency
    Yes
  • Life
    More Than 20 Years
  • Modular Design
    Yes
  • Overall Efficiency
    ≥97%
  • Power Grid Frequency
    50Hz/60Hz (range:±10%)
  • Product Type
    Power Electronics
  • Rated Power
    Up To 50 Mvar
  • Remote Monitoring And Control
    Yes
  • Structure
    Modular Structure
  • Target Power Factor
    Adjustable From -1 To +1
  • Target Power Factor
    Adjustable From -1 To +1
  • Voltage Rating
    Up To 35 KV
  • Communication Protocol
    IEC 61850
  • Low Harmonic Distortion
    Less Than 2%
  • Protection Features
    Overvoltage, Overcurrent, Overtemperature, Short Circuit Protection
  • Voltage
    Low Voltage
  • Parallel Operation
    Unlimited
  • Harmonic Compensation
    Up To 13th Harmonic
  • Fast Response Time
    Less Than 5 Ms
  • Communication Interface
    Modbus, Profibus, IEC 61850
  • Frequency
    50HZ/60HZ
  • Place of Origin
    CHINA
  • Brand Name
    ARK
  • Certification
    CE
  • Model Number
    SVG
  • Minimum Order Quantity
    1UNIT
  • Delivery Time
    15
  • Payment Terms
    L/C, T/T

Customizable Static Var Generator for Industrial Three-Phase Options



Products Description

Customizable Static Var Generator for Industrial Three-Phase Options 0

Product Paramenters

TYPE
Series 220V
Series 400V
Series 500V
Series 690V
Max neutral w ire current
5KVar
10KVar15KVar/ 35KVar/50KVar/ 75KVar/100KVar
90KVar
120KVar
Nominal voltage
AC220V(-20%~+20%)
AC380V(-20%~+20%)
AC500V(-20%~+20%)
AC690V(-20%~+20%)
Rated frequency
50Hz±5%
Network
Single phase
Three-phase three-wire/three-phase four-wire
Response time
<10ms
Reactive power compensation rate
>95%
Machine efficiency
>97%
Switching frequency
32kHz
16kHz
12.8kHz
12.8kHz
Feature selection
Deal with harmonics/Deal with harmonics and reactive power
Deal with harmonics/Deal with harmonics and reactive power/ Deal with harmonics and three-phase unbalance /Three options
Numbers in parallel
No limitation. A single centralized monitoring module can be equipped with up to 8 power modules
Communication methods
Two-channel RS485 communication interface (support GPRS/WIFIwireless communication)
Altitude w ithout derating
<2000m
Temperature
-20~+50°C
Humidity

Pollution level
Below level Ⅲ
Protection function
Overload protection, hardware over-current protection, over-voltage protection, power grid voltage imbalance protection, power
failure protection, over-temperature protection, frequency anomaly protection, short circuit protection, etc
Noise
<50dB
<60dB
<65dB
Installation
Rack/wall hanging
Rack
Into the way of line
Back entry (rack type), top entry (wall-mounted)
Top entry
Protection grade
IP20
