Modular Static Var Generator For Longer Equipment Lifetime And Higher Reliability

Modular Static Var Generator For Longer Equipment Lifetime And Higher Reliability

Products - Static Var Generator
  • High Light

    Longer Equipment Lifetime Static Var Generator

    ,

    Modular Static Var Generator

  • Multifunctional
    Reactive Power, Imbalance And Part Of Harmonic Compensation
  • Excellent Reactive Compensation
    High Speed, Precise (-0.99 ≤ Cosφ ≤ 0.99), Step-less, Bi-directional (capacitive And Inductance) Compensation
  • Excellent Imbalance Correction
    Both Negative And Zero Sequence, Mitigates Neutral Current
  • High Stability
    Infinite Impedance To Grid, Avoids Harmonic Resonance Problem
  • Flexible Application
    Modular Design, Embedded In Standard Or Customized Cabinet
  • Easy Installation And Maintenance
    Easy Installation For SVG Module Replacement And Expansion
  • Wide Capacity Range
    5~120 Kvar For A Single Cabinet, Up To 10 Cabinets In Parallel
  • Environmental Adaptability
    -20~50°C Temperature, Compatible With Diesel Generators
  • Waveform Display Function On HMI
    Display Waveform Of Input Voltage, Grid Current, Load Current And SVG Current
  • Place of Origin
    CHINA
  • Brand Name
    ARK
  • Certification
    CE
  • Model Number
    SVG
  • Minimum Order Quantity
    1UNIT
  • Delivery Time
    15
  • Payment Terms
    L/C, T/T

Modular Static Var Generator For Longer Equipment Lifetime And Higher Reliability

  • Modular Static Var Generator For Longer Equipment Lifetime And Higher Reliability
  • Modular Static Var Generator For Longer Equipment Lifetime And Higher Reliability
  • Modular Static Var Generator For Longer Equipment Lifetime And Higher Reliability
  • Modular Static Var Generator For Longer Equipment Lifetime And Higher Reliability
Get Price Contact Now

Discription

Static var generators (SVG), also known as active power factor compensators (APFC) or instantaneous stepless reactive power compensators, are the ultimate answer to power qualityproblems caused by low power factor and reactive power demand for a wide range of segments
and applications. They are a high performance, compact, flexible, modular and cost- effective type of active power filters (APF) that provide an instantaneous and effective response to power quality problems in low or high voltage electric power systems. They enable longer equipment lifetime, higher process reliability,improved power system capacity and stability, and reduced energy losses, complying with most demanding power quality standards and grid codes.

Low power factor increases the active energy losses of installations and affects their stability.  It is typically caused by inductive or capacitive loads that demand extra reactive power to perform properly.  Other contributors to low power factor are harmonic currents produced by nonlinear loads and the change of load in the electric power system.



Working Principle

The principle of the SVG is very similar to that of Active Power Filter, When the load is generating inductive or capacitive current, it makes load current lagging or leading the voltage. SVG detects the phase angle difference and generates leading or lagging current into the grid, making the nphase angle of current almost the same as that of voltage on the transformer side, which means fundamental power factor is unit. YIY-SVG is also capable of correcting load imbalance.


Product Paramenters

TYPE
Series 220V
Series 400V
Series 500V
Series 690V
Max neutral w ire current
5KVar
10KVar15KVar/ 35KVar/50KVar/ 75KVar/100KVar
90KVar
120KVar
Nominal voltage
AC220V(-20%~+20%)
AC380V(-20%~+20%)
AC500V(-20%~+20%)
AC690V(-20%~+20%)
Rated frequency
50Hz±5%
Network
Single phase
Three-phase three-wire/three-phase four-wire
Response time
<10ms
Reactive power compensation rate
>95%
Machine efficiency
>97%
Switching frequency
32kHz
16kHz
12.8kHz
12.8kHz
Feature selection
Deal with harmonics/Deal with harmonics and reactive power
Deal with harmonics/Deal with harmonics and reactive power/ Deal with harmonics and three-phase unbalance /Three options
Numbers in parallel
No limitation. A single centralized monitoring module can be equipped with up to 8 power modules
Communication methods
Two-channel RS485 communication interface (support GPRS/WIFIwireless communication)
Altitude w ithout derating
<2000m
Temperature
-20~+50°C
Humidity

Pollution level
Below level Ⅲ
Protection function
Overload protection, hardware over-current protection, over-voltage protection, power grid voltage imbalance protection, power
failure protection, over-temperature protection, frequency anomaly protection, short circuit protection, etc
Noise
<50dB
<60dB
<65dB

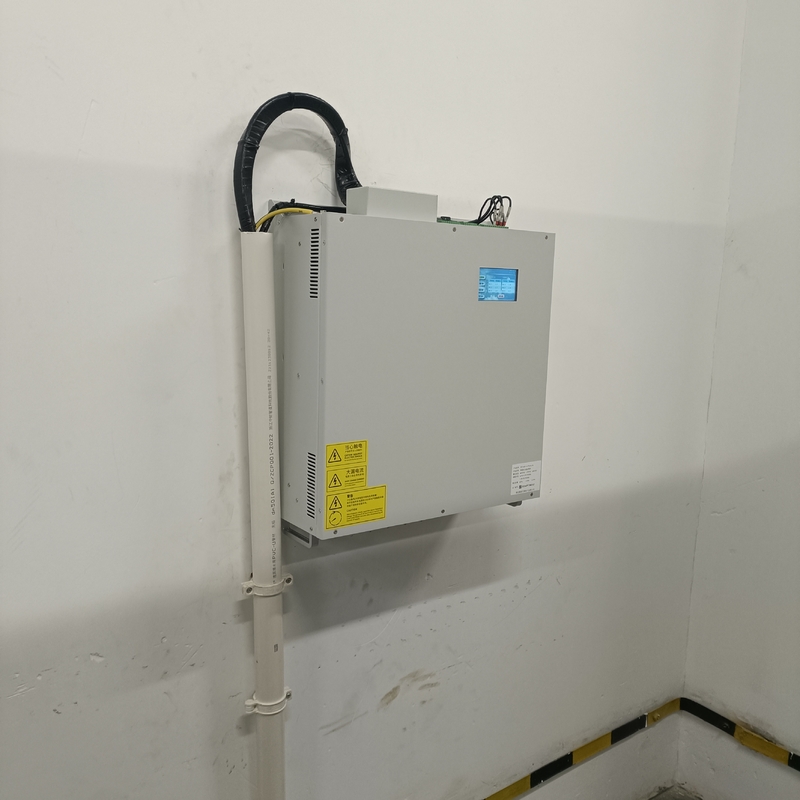

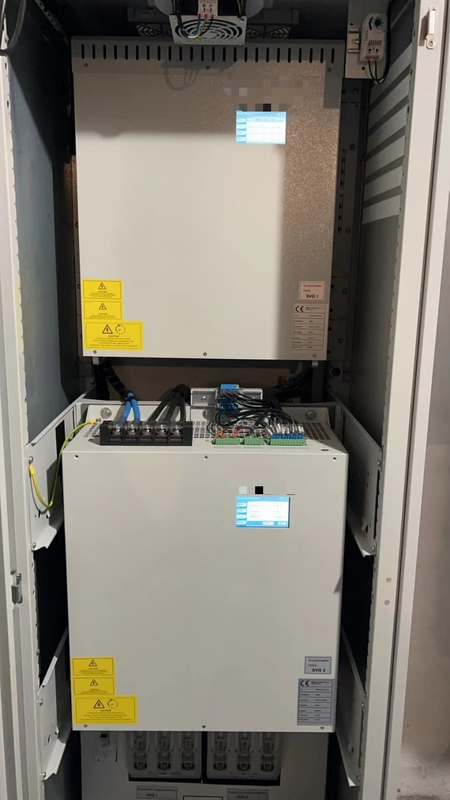

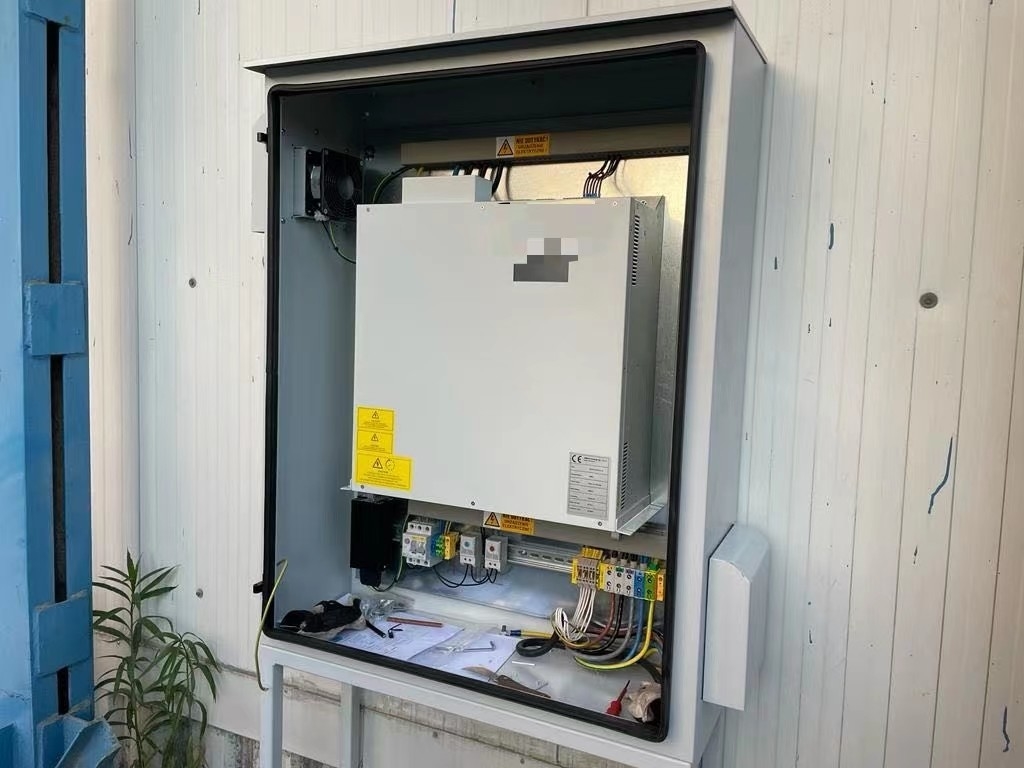

Installation
Rack/wall hanging
Rack
Into the way of line
Back entry (rack type), top entry (wall-mounted)
Top entry
Protection grade
IP20
