Product Introduction
More and more electric cars are hitting the road each year, and newer electric cars can travel farther than ever before. AC charging is sufficient for most electric vehicles, but sometimes faster charging is needed. The Ark EF160 is the right station for these occasions; Whether you want to replenish your AC charging program or need gas for a long trip.

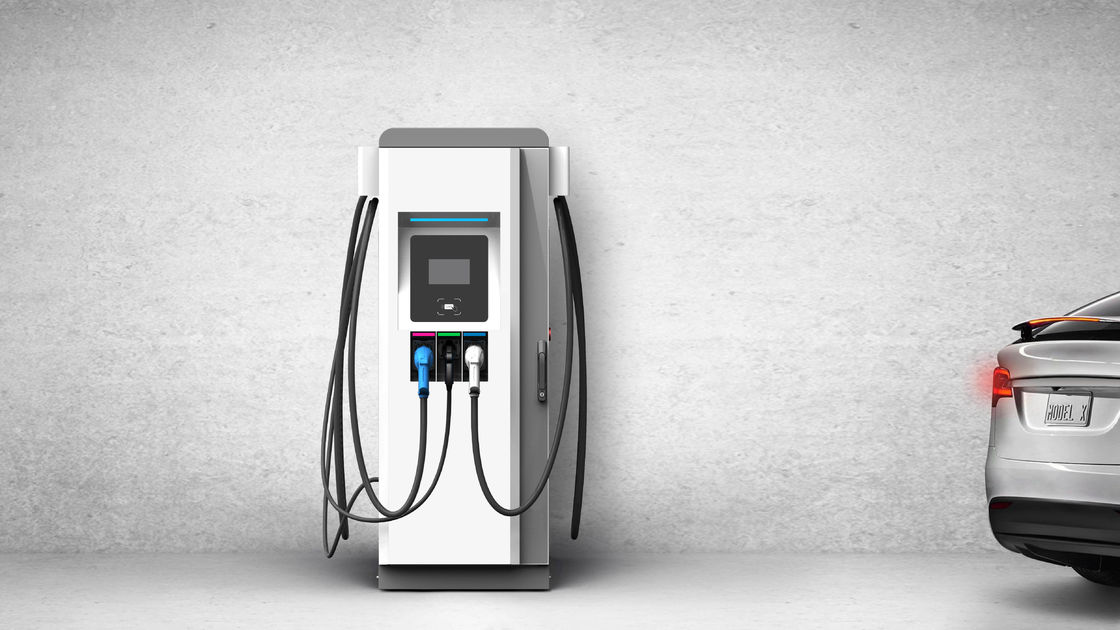

The ARK EF160 provides high power DC charging on a small footprint. It is thoughtfully designed and intuitive to use and manage as a communication station. ARK EF160 is a smart, networked fast charger that offers all features and all security protection.
Product Parameters
System | ||||
Housing material | Metal enclosure | |||
Dimension (H x W x D) | 1900 x 700 x 700mm | |||
Installation method | Ground mount | |||
Cable routing | Bottom inlet, top outlet wiring | |||
Weight | 355kgs | |||
Charging standard | CCS combo-1/2, CHAdeMO & AC IEC 61851 | |||
Charging outlet | CHAdeMO JEVS G105, CCS Combo-2, IEC 62196 Type-2 | |||
Outlet number | 3 | |||
Input | ||||
Input voltage | 400Vac +/-10%, 3-phase | |||
Input frequency | 50Hz/60Hz | |||
Power factor | 0.99 | |||
Output | ||||
Rated output power | CCS: 60kW, CHAdeMO: 60kW, AC: 22kW | CCS: 120kW, CHAdeMO: 60kW, AC:22kW | ||
Measuring accuracy | Level 0.5 | |||
Output voltage range | 200 – 750V DC constant output @ above 300V, 400V AC | |||
Output current range | 0 - 200A DC, 32A AC | 0 - 400A DC, 32A AC | ||
Efficiency | > 94% at rated output | |||
General | ||||
Charging type | Mode 4 | |||
User Interface | RFID, 7” touch screen, Emergency button | |||
Ethernet | 10/100 BaseTX (TCP-IP) | |||
Cellular | LTE modem, GPRS/3G/4G | |||
Communication | CAN, PLC, PWM, OCPP 1.6 JSON | |||
Application place | Indoor/Outdoor | |||
Working temperature | -20 °C – +70 °C | |||
Working humidity | 5% – 95% non-condensation | |||
Altitude | < 2000m | |||
Protection grade | IP54 | |||
Cooling | Fan cooling | |||
Security design | Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection |
Features
The modular power unit is single-person operated, so it can be easily replaced in the field for faster maintenance and improved uptime
Three cables charge three electric cars simultaneously
Ideal for any environment, it thrives in temperatures ranging from -30 °C to +55°C
Safety engineering, including hazard reduction standard cable management
RFID Authorization
Low operating noise
Can be customized
Company Details
Ark Technologies offers innovative, cost effective products for quick charging. Our team of power electronics experts has years of experience in improving and introducing compact, highly available inverter systems with power outputs of up to 150 kW. Our team of professionals enables us to offer customised products to our customers.
FAQ
I. The professional technical team and long-term vision of the industry ensure that we are always in the industry leading position. We offer a wide range of product options: charging stations for various charging standards, international standardization design, and smart back-end services.
II. Our products have passed various application scenarios and laboratory standard tests. You can buy our charging station products without any concerns and receive our professional service support.
III. The only Chinese EV Charger vendor who is willing and able to achieve CE and UL certificate currently.
IV. Our team members are the first batch of sales and engineers who is working in developing and selling global standard EV DC Charger which ensure we have plenty of experience implement global EV DC charger projects and have the foresight to lead EV charger products.
2. Is there any experience in implementing overseas charging station projects?
Yes, actually we are the first to implement the overseas charging project. Until now, we cooperate with British power company, electric car chargers integrated pv system, and we install many electric vehicle charging operators dc charging machine along the highway from Los Angeles to San Francisco, and general motors manufacturer provide dc fast charging their bolt electric vehicle fleet, and some fees.
3. What are the advantages of your products?
I. Telecom level product design and production.
II. Multiple charging standards support including CCS-1/2, CHAdeMO and GB/T, which means we can offer you all standards EV DC charger you want.
III. Quality comes first with wider input & output voltage range, lower voltage output range, better temperature adapted, higher protection grade, a longer technical foresight and most advanced modular design.
IV. Fast customer response, prefessional technical support and more solutions come out.
4. If we purchase your EV DC charger, how to get your after-sales support?
In general, we will provide comprehensive after-sales technical training, including the provision of written training materials, training videos or invite customer technical personnel for face-to-face training, to help customers master parts replacement and basic maintenance work.
In case of emergency, we will also send professional technicians to provide on-site support.
5. Does the higher the charging station output power mean the faster the charging speed?
No, it isn't. Due to the limited power of the automobile battery at the present stage, when the output power of the DC charger reaches a certain limit, the greater the power does not bring the faster charging speed.
However, the significance of the high-power DC charger is that it can simultaneously support dual connector and output high-power EV charging both at the same time. In the future, when the EV battery has been improved to support higher power charging, there is no need to invest in the charging station to upgrade again.
