Expand your charging network, easily
Built with scalability in mind, AKEV AC charger meets your needs today and in the future. OCPP function lets you connect the charger to backend system and manage an unlimited number of chargers via the system of your choice.
Technical specifications | AKEV22 | |
Housing material | Metal enclosure | |
Dimension (H x W x D) | 300*450*160mm, 1200*450*160mm (pedestal mount) | |
Installation method | Wall mount, pedestal mount (optional) | |
Cable routing | Bottom inlet wiring | |
Weight | N.W.: 11kg | |
Charging standard | IEC 61851-22 | |
Charging outlet | Type-2 socket or connector | |
Outlet number | 1 | |
Input voltage | 230Vac +/-10% 1-phase | 400Vac +/-10%, 3-phase |
Input frequency | 50Hz/60Hz | |
Max output power | 7kW | 22kW |
Measuring accuracy | Level 0.5 | |
Output voltage range | 230Vac +/-10% 1-phase | 400Vac +/-10%, 3-phase |
Output current range | 32A | |
RCCB | Type-B, sensitivity: 30mA | |
Charging type | Mode 3 | |
User Interface | RFID, LCD Display | |
AC connector type | IEC 62196 Type-2 | |
Communication | PWM, Ethernet, LTE, OCPP 1.6J | |
Application place | Indoor/Outdoor | |
Working temperature | -30 °C – +50 °C | |
Working humidity | 5% – 95% non-condensation | |
Altitude | <2000m | |
Protection grade | IP55 | |
Cooling | Natural cooling | |
Safety standard | Compliant with CE, EN 61851-1-2001; EN 61851-21-2001; EN 61851-22-2001 | |
Security design | Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection |
OCPP-compliant
Easy expansion

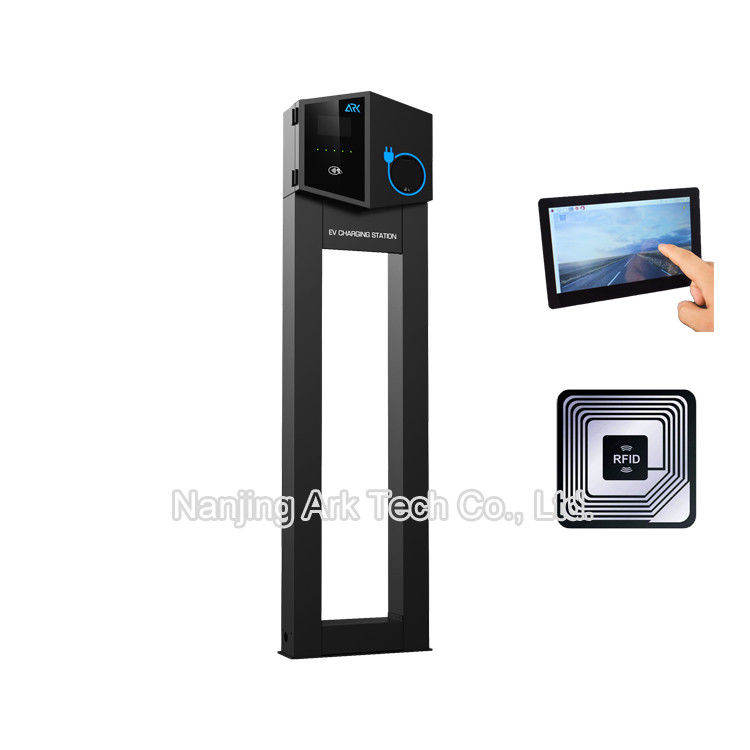

Wall mount and pedestal mount optional
Socket and cable outlet optional
OEM and branding service
FAQ
I. The professional technical team and long-term vision of the industry ensure that we are always in the industry leading position. We offer a wide range of product options: charging stations for various charging standards, international standardization design, and smart back-end services.
II. Our products have passed various application scenarios and laboratory standard tests. You can buy our charging station products without any concerns and receive our professional service support.
III. The only Chinese EV Charger vendor who is willing and able to achieve CE and UL certificate currently.
IV. Our team members are the first batch of sales and engineers who is working in developing and selling global standard EV DC Charger which ensure we have plenty of experience implement global EV DC charger projects and have the foresight to lead EV charger products.
2. Is there any experience in implementing overseas charging station projects?
Yes, actually we are the pioneers in implementing overseas charger projects. Till now, we cooperate with UK power company to integrate EV charger with PV system, with US charging operator to install dozens of EV DC charger along the Freeway from LA to San Francisco, with GM automaker to provide DC fast charging service to their Bolt EV fleet and several charging projects.
3. Does the higher the charging station output power mean the faster the charging speed?
No, it doesn't. Due to the limited power of the car battery at this stage, when the output power of the DC charger reaches a certain upper limit, the larger power does not bring a faster charging speed.
However, the significance of high-power DC charger is that it can support dual connectors and simultaneously output high power to charge two electric vehicles at the same time, and in the future, when the electric vehicle battery is improved to support higher power charging, it is not necessary to invest money again to upgrade the charging station.
4. If we purchase your EV DC charger, how to get your after-sales support?
Under normal circumstances, we will provide comprehensive after-sales technical training, including providing written training materials, training videos or inviting customers' technical personnel to face-to-face training to help customers master parts replacement and basic maintenance work.
When encountering an urgent situation, we will also send professional technicians to provide on-site support.
