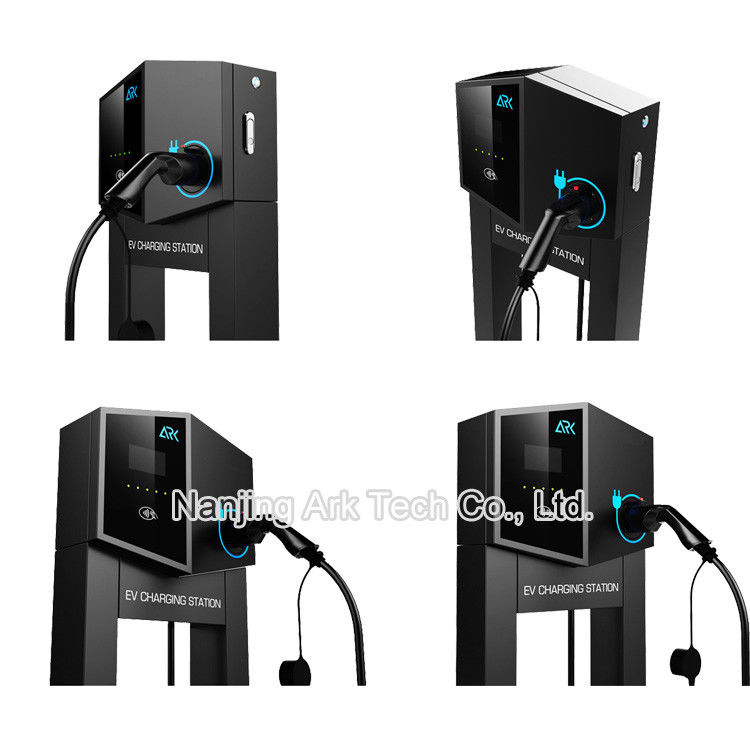

The AKEV22 AC charger uses a modern design for commercial and public charging. Embedded RFID, Ethernet, and LTE capabilities make it ideal for mall and corporate charging applications. Compatible with OCPP 1.6J protocol, it can be connected with the global EV charging management platform for operation.
| Technical specifications | AKEV22 | |
| Housing material | Metal enclosure | |
| Dimension (H x W x D) | 300*450*160mm, 1200*450*160mm (pedestal mount) | |
| Installation method | Wall mount, pedestal mount (optional) | |
| Cable routing | Bottom inlet wiring | |
| Weight | N.W.: 11kg | |
| Charging standard | IEC 61851-22 | |
| Charging outlet | Type-2 socket or connector | |
| Outlet number | 1 | |
| Input voltage | 230Vac +/-10% 1-phase | 400Vac +/-10%, 3-phase |
| Input frequency | 50Hz/60Hz | |
| Max output power | 7kW | 22kW |
| Measuring accuracy | Level 0.5 | |
| Output voltage range | 230Vac +/-10% 1-phase | 400Vac +/-10%, 3-phase |
| Output current range | 32A | |
| RCCB | Type-B, sensitivity: 30mA | |
| Charging type | Mode 3 | |
| User Interface | RFID, LCD Display | |
| AC connector type | IEC 62196 Type-2 | |
| Communication | PWM, Ethernet, LTE, OCPP 1.6J | |
| Application place | Indoor/Outdoor | |
| Working temperature | -30 °C – +50 °C | |
| Working humidity | 5% – 95% non-condensation | |
| Altitude | <2000m | |
| Protection grade | IP55 | |
| Cooling | Natural cooling | |
| Safety standard | Compliant with CE, EN 61851-1-2001; EN 61851-21-2001; EN 61851-22-2001 | |
| Security design | Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection | |
● 4.3-inch display, unique user interface for charging to provide good user display requirements.
● Luminous LED beacons allow the user to quickly identify the current charging status.
● Mobile application integration, providing users with remote operation and real-time reminders.
● Its metal shell and half coat ensure long-term outdoor use.
● Compliance with OCPP 1.6 standard, can be connected to the global electric vehicle charging platform.
● Wall-mounted and pedestal type installation is optional.
● Support connector and socket outlet to meet different charging requirements.
● The charger built-in leakage protection self-reset function.
FAQ
I. The professional technical team and long-term vision of the industry ensure that we are always in the industry leading position. We offer a wide range of product options: charging stations for various charging standards, international standardization design, and smart back-end services.
II. Our products have passed various application scenarios and laboratory standard tests. You can buy our charging station products without any concerns and receive our professional service support.
III. The only Chinese EV Charger vendor who is willing and able to achieve CE and UL certificate currently.
IV. Our team members are the first batch of sales and engineers who is working in developing and selling global standard EV DC Charger which ensure we have plenty of experience implement global EV DC charger projects and have the foresight to lead EV charger products.
2. Is there any experience in implementing overseas charging station projects?
Yes, actually we are the pioneers in implementing overseas charger projects. Till now, we cooperate with UK power company to integrate EV charger with PV system, with US charging operator to install dozens of EV DC charger along the Freeway from LA to San Francisco, with GM automaker to provide DC fast charging service to their Bolt EV fleet and several charging projects.
3. Does the higher the charging station output power mean the faster the charging speed?
No, it doesn't. Due to the limited power of the car battery at this stage, when the output power of the DC charger reaches a certain upper limit, the larger power does not bring a faster charging speed.
However, the significance of high-power DC charger is that it can support dual connectors and simultaneously output high power to charge two electric vehicles at the same time, and in the future, when the electric vehicle battery is improved to support higher power charging, it is not necessary to invest money again to upgrade the charging station.
