Three Phase Floor Mount 11KW 400V EV Smart Charger

Three Phase Floor Mount 11KW 400V EV Smart Charger

  • High Light

    400V EV Smart Charger

    ,

    11KW EV Smart Charger

    ,

    Floor Mount electric vehicle smart charging

  • Input Voltage Range
    400Vac +/-10%, 3-phase
  • Input Frequency Range
    50Hz/60Hz
  • Output Voltage Range
    400Vac +/-10%, 3-phase
  • Housing Material
    Metal Enclosure
  • Output Power
    7KW Or 22kW
  • Warranty
    12 Months
  • Place of Origin
    Jiangsu,China
  • Brand Name
    ARK or OEM
  • Certification
    CE
  • Model Number
    AKEV22
  • Minimum Order Quantity
    1 set
  • Price
    negotiable
  • Packaging Details
    carton
  • Delivery Time
    25-45days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000 units per month

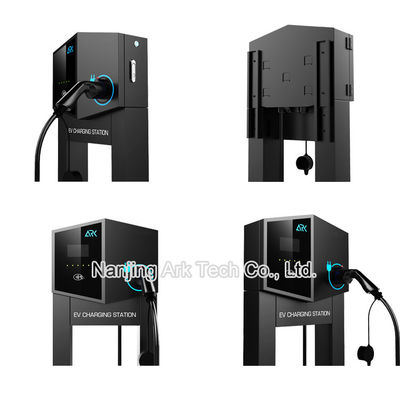

Three Phase Floor Mount 11KW 400V EV Smart Charger

Ark 11kw Electric Vehicle (EV) Charger Floor Mount EV Charging Station For Car Charging

Product Introduction



AKEV22 AC charger comes up with modern design for commercial and public charging. Embedded with RFID, Ethernet and LTE features makes it best suitable for mall and company charging applications. Compliant with OCPP 1.6J protocol enables it to be connected and operated with global EV charging management platform.


Product Parameters




Technical specifications AKEV22
Housing material Metal enclosure
Dimension (H x W x D) 300*450*160mm, 1200*450*160mm (pedestal mount)
Installation method Wall mount, pedestal mount (optional)
Cable routing Bottom inlet wiring
Weight N.W.: 11kg
Charging standard IEC 61851-22
Charging outlet Type-2 socket or connector
Outlet number 1
Input voltage 230Vac +/-10% 1-phase 400Vac +/-10%, 3-phase
Input frequency 50Hz/60Hz
Max output power 7kW 22kW
Measuring accuracy Level 0.5
Output voltage range 230Vac +/-10% 1-phase 400Vac +/-10%, 3-phase
Output current range 32A
RCCB Type-B, sensitivity: 30mA
Charging type Mode 3
User Interface RFID, LCD Display
AC connector type IEC 62196 Type-2
Communication PWM, Ethernet, LTE, OCPP 1.6J
Application place Indoor/Outdoor
Working temperature -30 °C – +50 °C
Working humidity 5% – 95% non-condensation
Altitude <2000m
Protection grade IP55
Cooling Natural cooling
Safety standard Compliant with CE, EN 61851-1-2001; EN 61851-21-2001; EN 61851-22-2001
Security design Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection



Three Phase Floor Mount 11KW 400V EV Smart Charger 0Three Phase Floor Mount 11KW 400V EV Smart Charger 1

Features

● The 4.3-inch display and unique UI offer good user display requirements for charging.

● The lit LED beacons allow users to quickly identify the current charging status.

● Mobile app integration provides users remote operation and real-time reminders.

● Its metal casing and semi-gross coating ensure the long-term outdoor use.

● OCPP 1.6 compliance enables connection to the global EV charging platform.

● Wall-mounted and pedestal-mounted optional installation methods.

● Support outlet of connector and socket to meet different charging requirements.

● The self-reset function of the leakage protection built in the charger.


Application

Shopping mall
Company charging
Parking lot
Supermarket

Company Introduction

Cooperating with numerous clients globally, Ark Tech is well-experienced on product customization and understands customers' preferences by providing with various products and solutions to each customer across the world. To solve EV charging issues for our customers empowers us to work harder with timely, effective and caring service.
Three Phase Floor Mount 11KW 400V EV Smart Charger 2


FAQ

1. Why choose us as your preferred EV Charger supplier?

I. The professional technical team and long-term vision of the industry ensure that we are always in the industry leading position. We offer a wide range of product options: charging stations for various charging standards, international standardization design, and smart back-end services.

II. Our products have passed various application scenarios and laboratory standard tests. You can buy our charging station products without any concerns and receive our professional service support.

III. The only Chinese EV Charger vendor who is willing and able to achieve CE and UL certificate currently.

IV. Our team members are the first batch of sales and engineers who is working in developing and selling global standard EV DC Charger which ensure we have plenty of experience implement global EV DC charger projects and have the foresight to lead EV charger products.



2. Is there any experience in implementing overseas charging station projects?

Yes, actually we are the pioneers in implementing overseas charger projects. Till now, we cooperate with UK power company to integrate EV charger with PV system, with US charging operator to install dozens of EV DC charger along the Freeway from LA to San Francisco, with GM automaker to provide DC fast charging service to their Bolt EV fleet and several charging projects.



3. Does the higher the charging station output power mean the faster the charging speed?

No, it doesn't. Due to the limited power of the car battery at this stage, when the output power of the DC charger reaches a certain upper limit, the larger power does not bring a faster charging speed.

However, the significance of high-power DC charger is that it can support dual connectors and simultaneously output high power to charge two electric vehicles at the same time, and in the future, when the electric vehicle battery is improved to support higher power charging, it is not necessary to invest money again to upgrade the charging station.



4. If we purchase your EV DC charger, how to get your after-sales support?

Under normal circumstances, we will provide comprehensive after-sales technical training, including providing written training materials, training videos or inviting customers' technical personnel to face-to-face training to help customers master parts replacement and basic maintenance work.

When encountering an urgent situation, we will also send professional technicians to provide on-site support.
