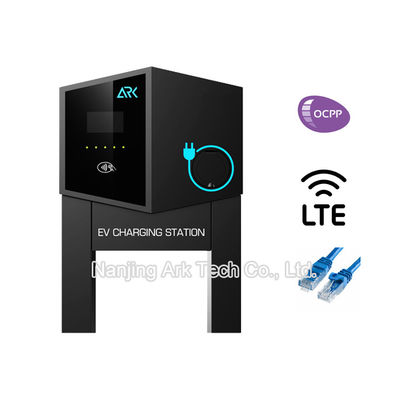

Level 2 IEC 62196 OCPP 1.6J IP55 Wall Box EV Charger

Level 2 IEC 62196 OCPP 1.6J IP55 Wall Box EV Charger

  • High Light

    IP55 Wall Box EV Charger

    ,

    1.6J Wall Box EV Charger

    ,

    IEC 62196 wallbox car charger

  • Input Voltage
    400V +/-10%, 3-phase
  • Output Voltage
    400V +/ -10%, 3-phase
  • Housing Material
    Metal
  • Output Power
    7KW Or 22kW
  • Warranty
    12 Months
  • Working Humidity
    5%-95%, Non-condensation
  • Working Temperature
    -30° C To +50° C
  • Place of Origin
    Jiangsu,China
  • Brand Name
    ARK or OEM
  • Certification
    CE
  • Model Number
    AKEV22
  • Minimum Order Quantity
    1 set
  • Price
    negotiable
  • Packaging Details
    carton
  • Delivery Time
    25-45days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000 units per month

Level 2 IEC 62196 OCPP 1.6J IP55 Wall Box EV Charger

Level 2 Wall Box EV Charging Station for Electric Vehicles with 22kW 32A AC Output and Wall Mount


Product Introduction



From its durable and weatherproof design to its integrated electrical protections, the new generation of AKEV AC chargers takes reliability up a notch. With LAN or 3G/4G LTE (optional), it's always connected so you can track and manage your charging stations, receive remote firmware updates, and earn revenue.

Product Parameters




Technical specifications AKEV22
Housing material Metal enclosure
Dimension  300*450*160mm, 1200*450*160mm (pedestal mount)
Installation method Wall mount, pedestal mount (optional)
Cable routing Bottom inlet wiring
Weight N.W.: 11kg
Charging standard IEC 61851-22
Charging outlet Type-2 socket or connector
Outlet number 1
Input voltage 230Vac +/-10% 1-phase 400Vac +/-10%, 3-phase
Input frequency 50Hz/60Hz
Output
Max output power 7kW 22kW
Measuring accuracy Level 0.5
Output voltage range 230Vac +/-10% 1-phase 400Vac +/-10%, 3-phase
Output current range 32A
RCCB Type-B, sensitivity: 30mA
General
Charging type Mode 3
User Interface RFID, LCD Display
AC connector type IEC 62196 Type-2
Communication PWM, Ethernet, LTE, OCPP 1.6J
Application place Indoor/Outdoor
Working temperature -30 °C – +50 °C
Working humidity 5% – 95% non-condensation
Altitude <2000m
Protection grade IP55
Cooling Natural cooling
Safety standard Compliant with CE, EN 61851-1-2001; EN 61851-21-2001; EN 61851-22-2001
Security Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection



Level 2 IEC 62196 OCPP 1.6J IP55 Wall Box EV Charger 0Level 2 IEC 62196 OCPP 1.6J IP55 Wall Box EV Charger 1

Features


Durable, weatherproof design
Remote support and firmware updates
Integrated RCD and AC/DC leakage detection



Application

Shopping mall
Company charging
Parking lot
Supermarket

Company Introduction

Cooperating with numerous clients globally, Ark Tech is well-experienced on product customization and understands customers' preferences by providing with various products and solutions to each customer across the world. To solve EV charging issues for our customers empowers us to work harder with timely, effective and caring service.
Level 2 IEC 62196 OCPP 1.6J IP55 Wall Box EV Charger 2


FAQ



1. Is there any experience in implementing overseas charging station projects?

Yes, actually we are the pioneers in implementing overseas charger projects.

Till now, we cooperate with UK power company to integrate EV charger with PV system, with US charging operator to install dozens of EV DC charger along the Freeway from LA to San Francisco, with GM automaker to provide DC fast charging service to their Bolt EV fleet and several charging projects.



2. What are the advantages of your products?

I. Telecom level product design and production.

II. Multiple charging standards support including CCS-1/2, CHAdeMO and GB/T, which means we can offer you all standards EV DC charger you want.

III. Quality comes first with wider input & output voltage range, lower voltage output range, better temperature adapted, higher protection grade, a longer technical foresight and most advanced modular design.

IV. Fast customer response, prefessional technical support and more solutions come out.



3. Can you explain the differences of global DC fast charging standards?

Till now, there are 5 kinds of DC fast charging standards: CCS-1, CCS-2. CHAdeMO, GB/T and Tesla.

CCS-1: DC fast charging standard for North America. Typical charging EVs: Chevy Bolt.

CCS-2: DC fast charging standard for Europe. Typical charging EVs: BMW i3, VW e-Golf, Porsche Mission-e.

CHAdeMO: DC fast charging standard for Japan. Typical charging EVs: Nissan Leaf.

GB/T: DC fast charging standard for China. Typical charging EVs: BYD, JAC, BAIC.

Tesla: DC fast charging standard for Tesla only. Typical charging EVs: Tesla Model S, Model X, Model 3.





4. If we purchase your EV DC charger, how to get your after-sales support?

Under normal circumstances, we will provide comprehensive after-sales technical training, including providing written training materials, training videos or inviting customers' technical personnel to face-to-face training to help customers master parts replacement and basic maintenance work.

When encountering an urgent situation, we will also send professional technicians to provide on-site support.
