500V Static Var Generator SVG Modular and Flexible Power Factor Correction Technology

500V Static Var Generator SVG Modular and Flexible Power Factor Correction Technology

  • High Light

    Modular Power Factor Correction SVG

    ,

    Flexible Power Factor Correction SVG

    ,

    500V Power Factor Correction SVG

  • Altitude Without Derating
    <2000m
  • Wide Capacity Range
    5~120 Kvar For A Single Cabinet, Up To 10 Cabinets In Parallel
  • Flexible Application

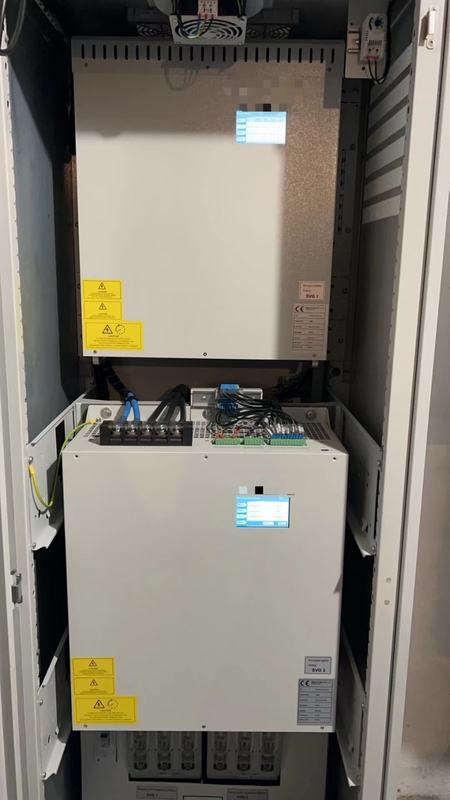

    Modular Design, Embedded In Standard Or Customized Cabinet
  • Rated Frequency
    50Hz±5%
  • Protection Grade
    IP20
  • Product Category
    Static Var Generator
  • Excellent Reactive Compensation
    High Speed, Precise (-0.99 ≤ Cosφ ≤ 0.99), Step-less, Bi-directional (capacitive And Inductance) Compensation
  • Low Power Factor
    Increases The Active Energy Losses Of Installations And Affects Their Stability
  • Place of Origin
    CHINA
  • Brand Name
    ARK
  • Certification
    CE
  • Model Number
    SVG
  • Minimum Order Quantity
    1UNIT
  • Delivery Time
    15
  • Payment Terms
    L/C, T/T

500V Static Var Generator SVG Modular and Flexible Power Factor Correction Technology

Product Description:

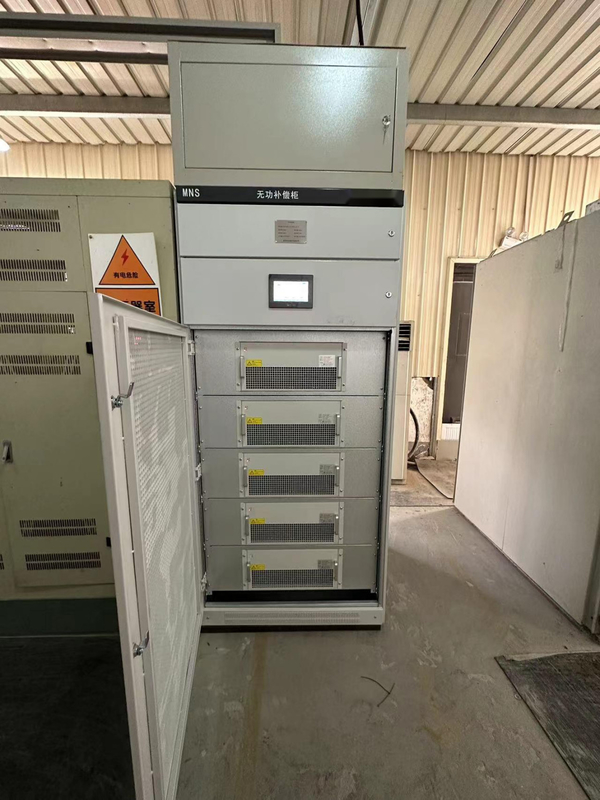

The Static Var Generator is designed to work with a single centralized monitoring module that can be equipped with up to 8 power modules, making it easy to manage large power systems. The device can be installed in two ways: back entry (rack type) or top entry (wall-mounted), providing flexibility to users in terms of installation.

The Static Var Generator is an ideal solution for maintaining the stability and quality of electrical power systems. It acts as a Generator Longitudinal Regulator, Power Output Stabilizer, and Electrical Source Stability Maintainer, ensuring that the power system operates efficiently and effectively. The device can be used in a variety of applications, including industrial processes, commercial buildings, and power distribution systems.

The Static Var Generator is designed to operate at altitudes of up to 2000m without derating, making it suitable for use in a wide range of environments. With no limitation on the number of devices that can be used in parallel, the Static Var Generator is a powerful solution for managing complex power systems.



Features:

  • Product Name: Static Var Generator
  • Product Category: Static Var Generator
  • Flexible Application:
    • Modular Design
    • Embedded In Standard Or Customized Cabinet
  • Reactive power compensation rate: >95%
  • Environmental Adaptability:
    • -20~50°C Temperature
    • Compatible With Diesel Generators
  • Pollution level: Below level Ⅲ
  • Output Stability Tracking Device
  • Generator Longitudinal Regulator
  • Static Voltage and Frequency Control


Technical Parameters:

Product Category Static Var Generator
Nominal voltage AC220V(-20%~+20%), AC380V(-20%~+20%), AC500V(-20%~+20%), AC690V(-20%~+20%)
Machine efficiency >97%
Numbers in parallel No limitation. A single centralized monitoring module can be equipped with up to 8 power modules
Noise <50dB, <60dB, <65dB
Temperature -20~+50°C
Protection function Overload protection, hardware over-current protection, over-voltage protection, power grid voltage imbalance protection, power failure protection, over-temperature protection, frequency anomaly protection, short circuit protection, etc
Altitude without derating <2000m
Feature selection Deal with harmonics/Deal with harmonics and reactive power, Deal with harmonics/Deal with harmonics and reactive power/ Deal with harmonics and three-phase unbalance /Three options
Excellent Imbalance Correction Both Negative And Zero Sequence, Mitigates Neutral Current
Output Stability Tracking Device Yes
Synchronous Machine Control Unit Yes
Static Voltage and Frequency Control Yes


Applications:


Model Number: SVG
Certification: CE
Place of Origin: CHINA
Minimum Order Quantity: 1UNIT
Payment Terms: L/C, T/T
Delivery Time: 15
Machine efficiency: >97%
Waveform Display Function On HMI: Display Waveform Of Input Voltage, Grid Current, Load Current And SVG Current
Environmental Adaptability: -20~50°C Temperature, Compatible With Diesel Generators

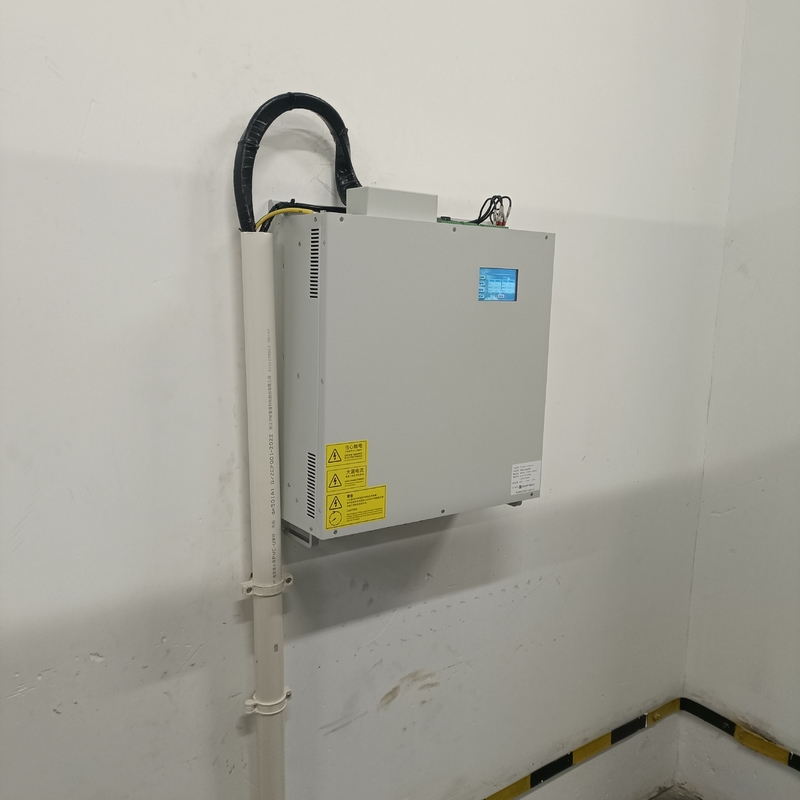

Into the way of line: Back entry (rack type), top entry (wall-mounted)
Response time: <10ms


Support and Services:

The Static Var Generator (SVG) product provides technical support and services to ensure optimal performance and efficiency. Our team of experts offers installation, commissioning, and maintenance services to guarantee that the SVG is operating at its highest potential. Additionally, we provide training programs for our customers to enable them to operate the SVG effectively and efficiently. Our technical support team is available 24/7 to assist with any issues or concerns that may arise. We also offer upgrades and replacement parts to ensure the SVG remains up-to-date and functioning properly. Overall, our goal is to provide comprehensive support and services to ensure customer satisfaction and the longevity of the SVG product.



Packing and Shipping:

Product Packaging:

The Static Var Generator product will be packaged in a sturdy cardboard box with foam inserts to prevent any damage during shipping. The product will be sealed with tape and labeled with the product name and shipping address.

Shipping:

The Static Var Generator product will be shipped via a reliable carrier service such as FedEx or UPS. Shipping costs will be calculated based on the destination and weight of the package. Customers can track their package using the tracking number provided once the product has been shipped.



FAQ:

Q: What is the ARK Static Var Generator (SVG)?

A: The ARK Static Var Generator (SVG) is an electronic device used for power factor correction and voltage stabilization in electrical power systems.

Q: What is the model number of the ARK SVG?

A: The model number of the ARK SVG is SVG.

Q: Is the ARK SVG certified?

A: Yes, the ARK SVG is CE certified.

Q: Where is the ARK SVG made?

A: The ARK SVG is made in China.

Q: What are the payment terms for purchasing the ARK SVG?

A: The payment terms for purchasing the ARK SVG are L/C (letter of credit) and T/T (telegraphic transfer).

Q: What is the minimum order quantity for the ARK SVG?

A: The minimum order quantity for the ARK SVG is 1 unit.

Q: What is the delivery time for the ARK SVG?

A: The delivery time for the ARK SVG is 15 days.
