Network Static Var Generator Three Phase Three Wire Four Wire

Network Static Var Generator Three Phase Three Wire Four Wire

Products - Static Var Generator
  • High Light

    Network Static Var Generator

    ,

    3Wire Static Var Generator

    ,

    Network SVG Static Var Generator

  • Certifications
    CE, UL, IEC, IEEE
  • Control System
    Advanced Digital Signal Processor (DSP)
  • Fast Response Time
    Less Than 5 Ms
  • High Efficiency
    Up To 99%
  • Low Harmonic Distortion
    Less Than 2%
  • Manufacturer
    ABB
  • Operating Temperature
    0-40°C
  • Operating Temperature Range
    -25°C To +55°C
  • Parallel Operation
    Unlimited
  • Power Grid Frequency
    50Hz/60Hz (range:±10%)
  • Protection Level
    IP20
  • Rated Power
    Up To 50 Mvar
  • Response Time
    Less Than 10ms
  • Structure
    Modular Structure
  • Warranty
    2 Years
  • Application
    Power Quality Improvement
  • Cooling Method
    Air Or Water
  • Dimensions
    Depends On Power Rating
  • Frequency Range
    50/60 Hz
  • Model
    STATCOM
  • Overall Efficiency
    ≥97%
  • Product Type
    Power Quality Control
  • Voltage
    10KV
  • Voltage Rating
    Up To 35 KV
  • Weight
    Depends On Power Rating
  • Place of Origin
    CHINA
  • Brand Name
    ARK
  • Certification
    CE
  • Model Number
    SVG
  • Minimum Order Quantity
    1UNIT
  • Delivery Time
    15
  • Payment Terms
    L/C, T/T

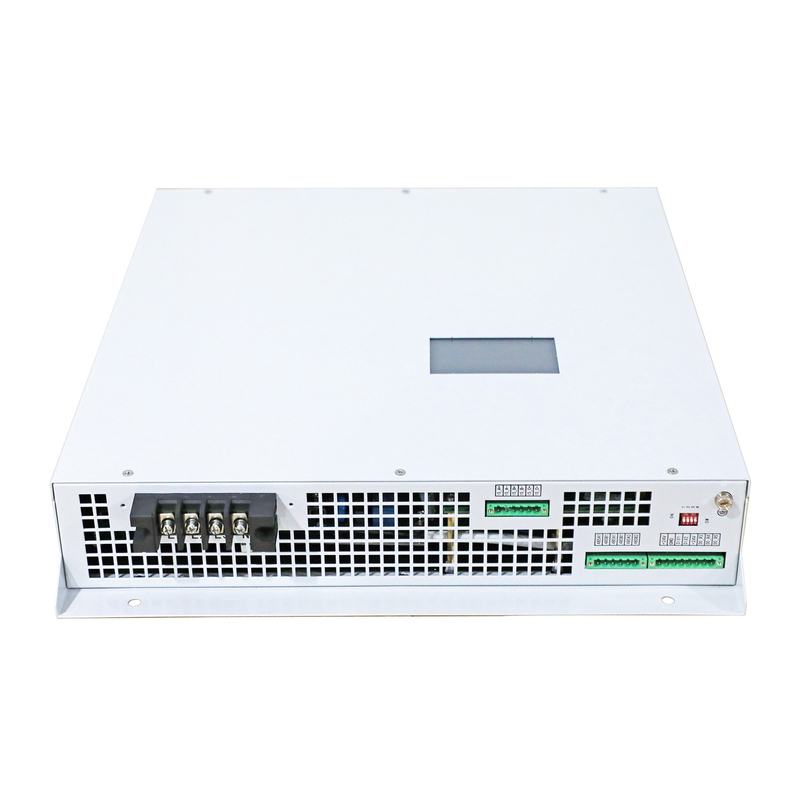

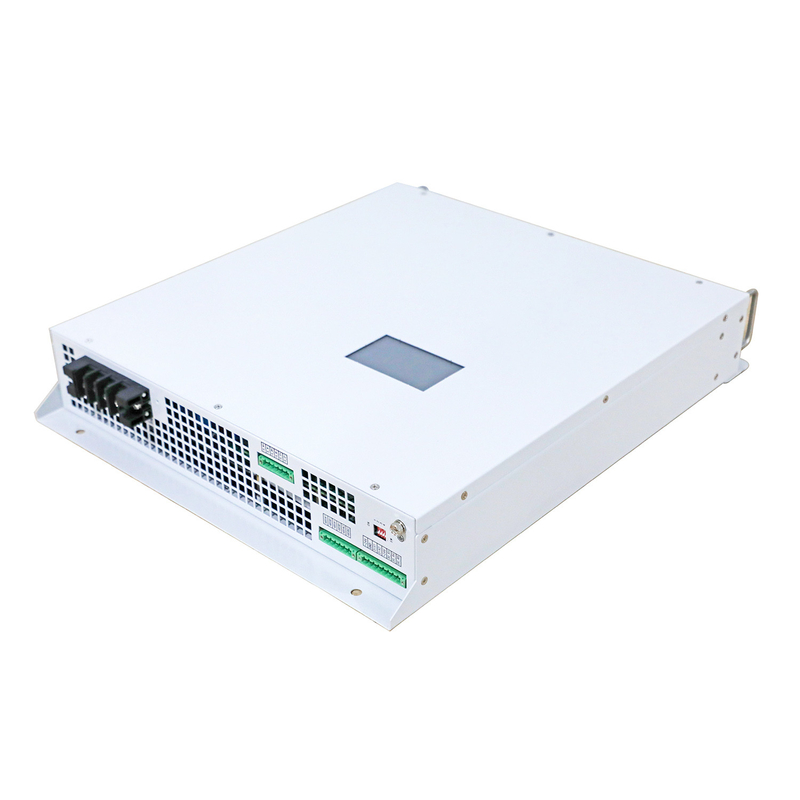

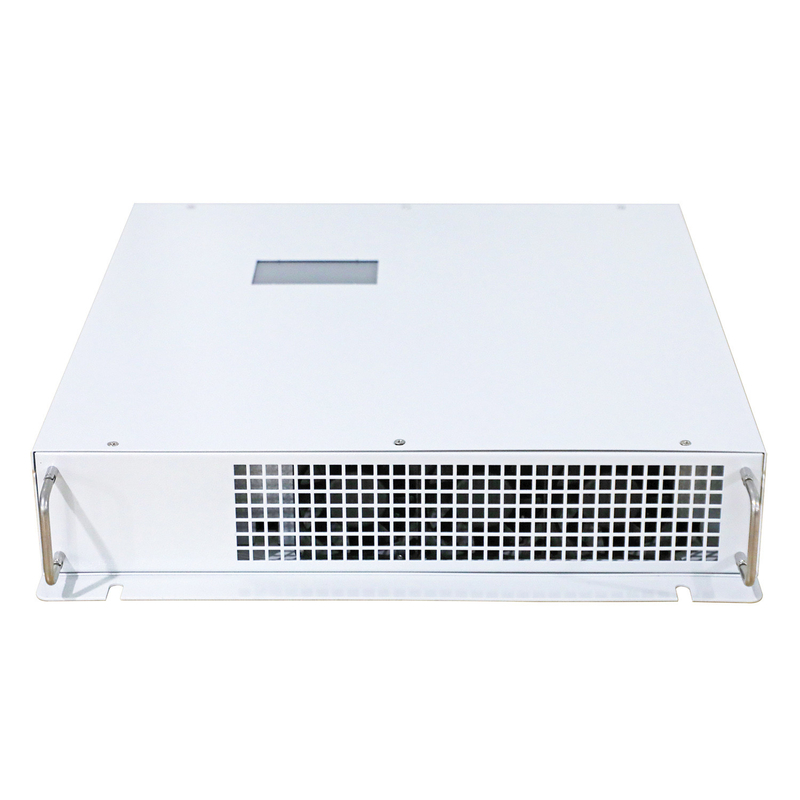

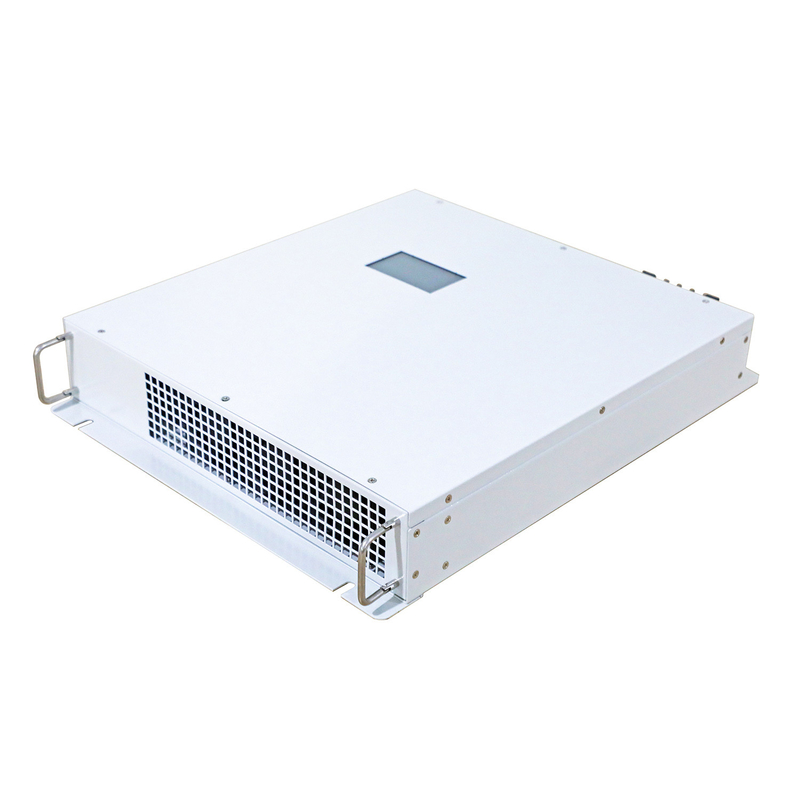

Network Static Var Generator Three Phase Three Wire Four Wire

  • Network Static Var Generator Three Phase Three Wire Four Wire
  • Network Static Var Generator Three Phase Three Wire Four Wire
  • Network Static Var Generator Three Phase Three Wire Four Wire
  • Network Static Var Generator Three Phase Three Wire Four Wire
  • Network Static Var Generator Three Phase Three Wire Four Wire
Get Price Contact Now

Three-Phase Three-Wire Four-Wire Network Static Var Generator

Products Description

Network Static Var Generator Three Phase Three Wire Four Wire 0

Product Paramenters

TYPE
Series 220V
Series 400V
Series 500V
Series 690V
Max neutral w ire current
5KVar
10KVar15KVar/ 35KVar/50KVar/ 75KVar/100KVar
90KVar
120KVar
Nominal voltage
AC220V(-20%~+20%)
AC380V(-20%~+20%)
AC500V(-20%~+20%)
AC690V(-20%~+20%)
Rated frequency
50Hz±5%
Network
Single phase
Three-phase three-wire/three-phase four-wire
Response time
<10ms
Reactive power compensation rate
>95%
Machine efficiency
>97%
Switching frequency
32kHz
16kHz
12.8kHz
12.8kHz
Feature selection
Deal with harmonics/Deal with harmonics and reactive power
Deal with harmonics/Deal with harmonics and reactive power/ Deal with harmonics and three-phase unbalance /Three options
Numbers in parallel
No limitation. A single centralized monitoring module can be equipped with up to 8 power modules
Communication methods
Two-channel RS485 communication interface (support GPRS/WIFIwireless communication)
Altitude w ithout derating
<2000m
Temperature
-20~+50°C
Humidity

Pollution level
Below level Ⅲ
Protection function
Overload protection, hardware over-current protection, over-voltage protection, power grid voltage imbalance protection, power
failure protection, over-temperature protection, frequency anomaly protection, short circuit protection, etc
Noise
<50dB
<60dB
<65dB
Installation
Rack/wall hanging
Rack
Into the way of line
Back entry (rack type), top entry (wall-mounted)
Top entry
Protection grade
IP20
