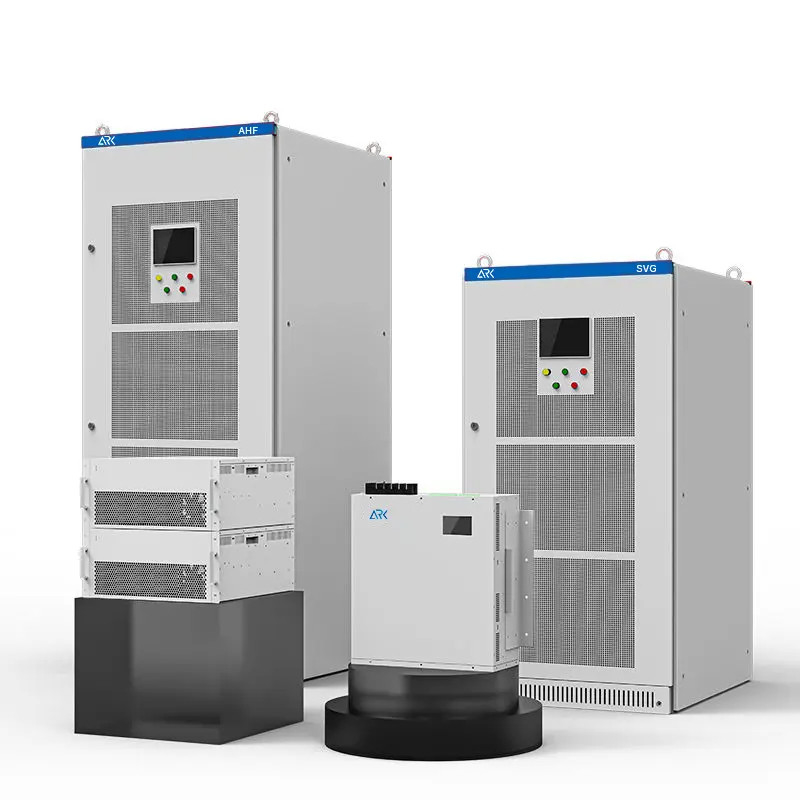

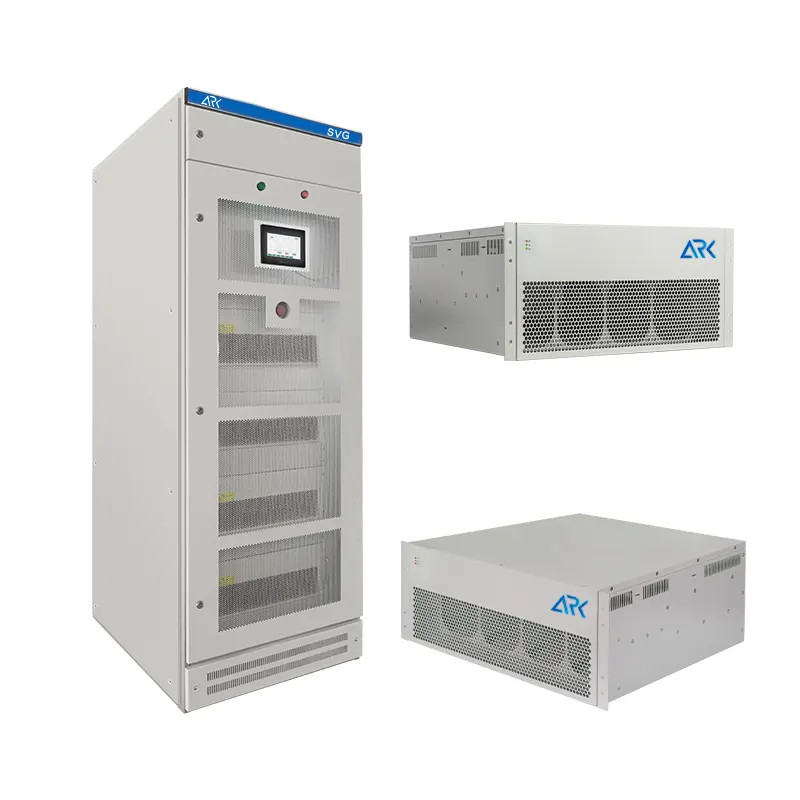

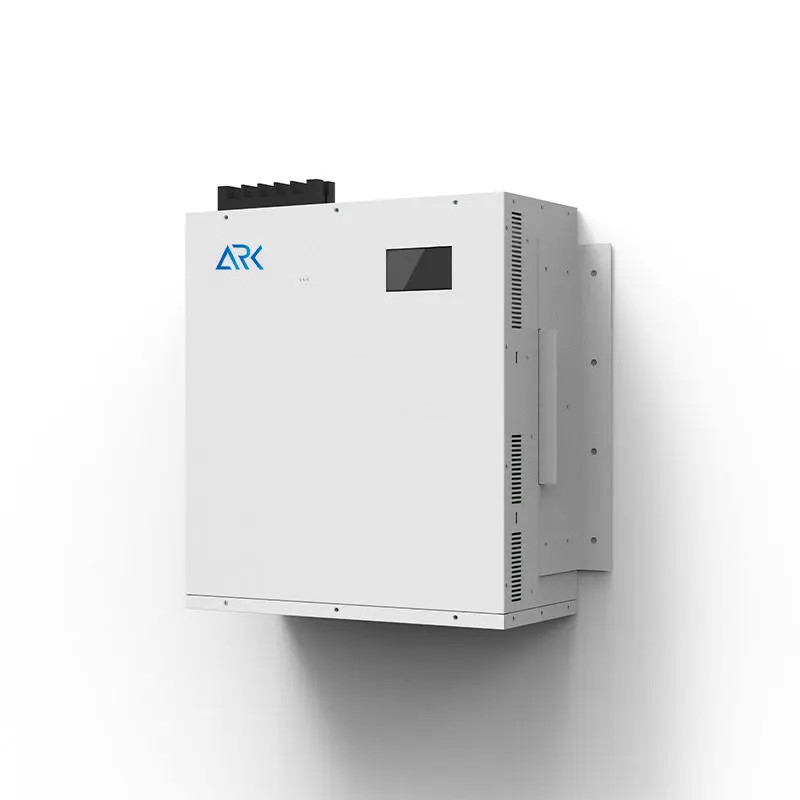

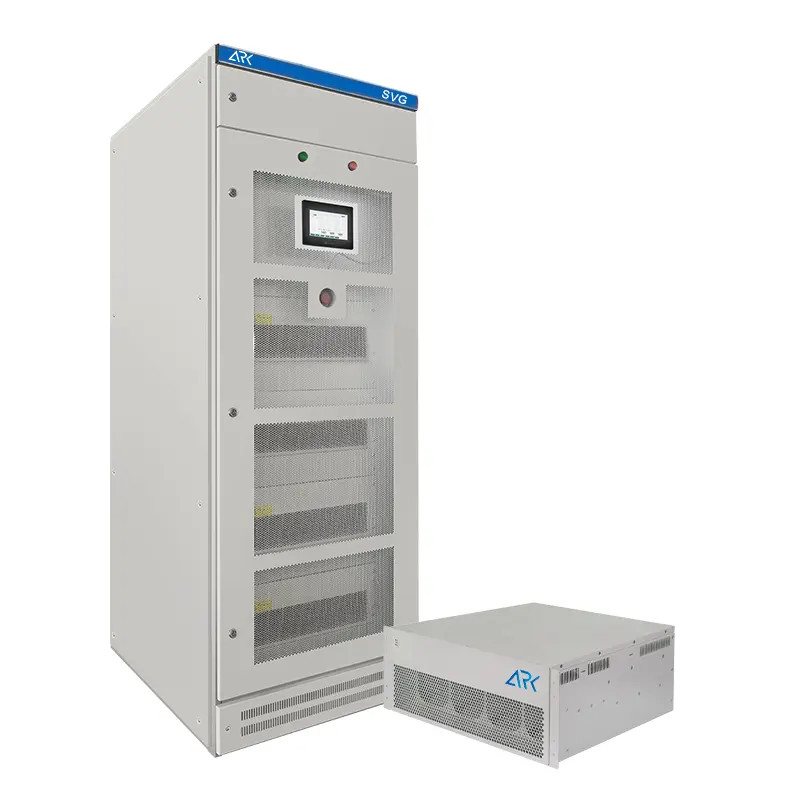

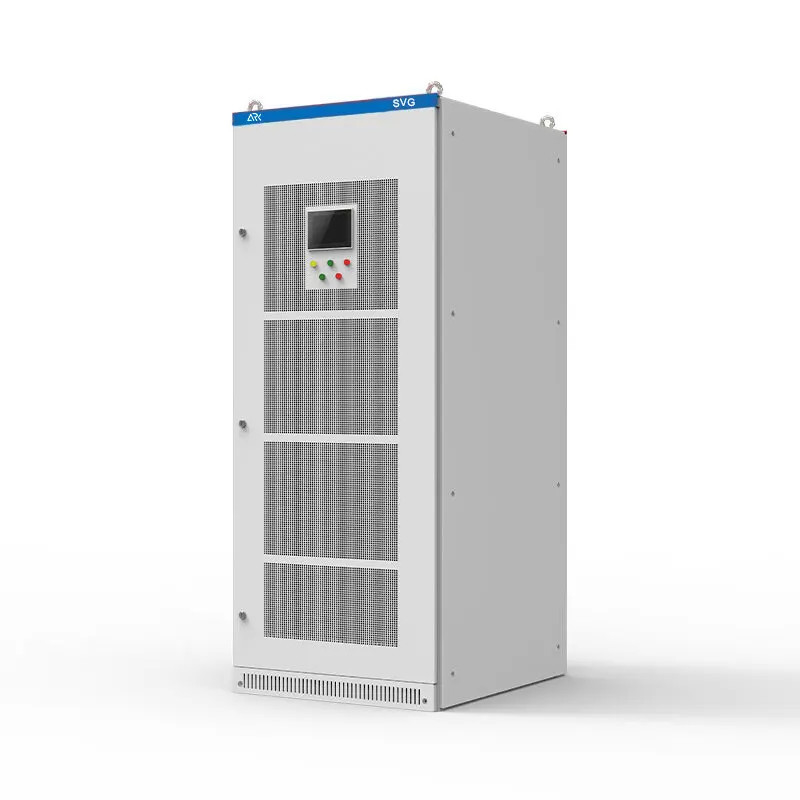

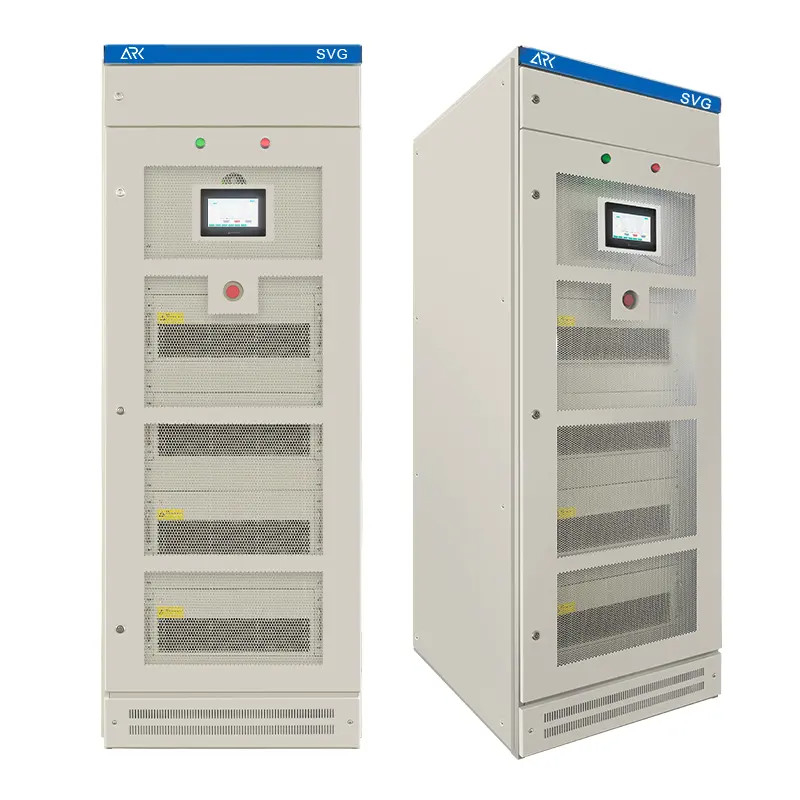

Energy Saver Reactive Power Compensator Static Var Generator

Energy Saver Reactive Power Compensator Static Var Generator

  • Compact Size
    Yes
  • Compensation Capacity
    90KVar
  • Control System
    Digital
  • High Efficiency
    Yes
  • Life
    More Than 20 Years
  • Modular Design
    Yes
  • Overall Efficiency
    ≥97%
  • Power Grid Frequency
    50Hz/60Hz (range:±10%)
  • Product Type
    Power Quality Control
  • Rated Power
    Up To 50 Mvar
  • Remote Monitoring And Control
    Yes
  • Structure
    Modular Structure
  • Target Power Factor
    Adjustable From -1 To +1
  • Target Power Factor
    Adjustable From -1 To +1
  • Voltage Rating
    Up To 35 KV
  • Place of Origin
    CHINA
  • Brand Name
    ARK
  • Certification
    CE
  • Model Number
    SVG
  • Minimum Order Quantity
    1UNIT
  • Delivery Time
    15
  • Payment Terms
    L/C, T/T

Energy Saver Reactive Power Compensator Static Var Generator

Energy Saver Reactive Power Compensators Power Factor Corrector Static Var Generator Svg 100kvar

Products Description

Energy Saver Reactive Power Compensator Static Var Generator 0

Product Paramenters

TYPE
Series 220V
Series 400V
Series 500V
Series 690V
Max neutral w ire current
5KVar
10KVar15KVar/ 35KVar/50KVar/ 75KVar/100KVar
90KVar
120KVar
Nominal voltage
AC220V(-20%~+20%)
AC380V(-20%~+20%)
AC500V(-20%~+20%)
AC690V(-20%~+20%)
Rated frequency
50Hz±5%
Network
Single phase
Three-phase three-wire/three-phase four-wire
Response time
<10ms
Reactive power compensation rate
>95%
Machine efficiency
>97%
Switching frequency
32kHz
16kHz
12.8kHz
12.8kHz
Feature selection
Deal with harmonics/Deal with harmonics and reactive power
Deal with harmonics/Deal with harmonics and reactive power/ Deal with harmonics and three-phase unbalance /Three options
Numbers in parallel
No limitation. A single centralized monitoring module can be equipped with up to 8 power modules
Communication methods
Two-channel RS485 communication interface (support GPRS/WIFIwireless communication)
Altitude w ithout derating
<2000m
Temperature
-20~+50°C
Humidity

Pollution level
Below level Ⅲ
Protection function
Overload protection, hardware over-current protection, over-voltage protection, power grid voltage imbalance protection, power
failure protection, over-temperature protection, frequency anomaly protection, short circuit protection, etc
Noise
<50dB
<60dB
<65dB
Installation
Rack/wall hanging
Rack
Into the way of line
Back entry (rack type), top entry (wall-mounted)
Top entry
Protection grade
IP20
