CHAdeMO DC Fast Charging Stations

CHAdeMO DC Fast Charging Stations

  • High Light

    CHAdeMO DC Fast Charging Stations

    ,

    CCS DC Fast Charging Stations

    ,

    40KW dc ev charging stations

  • Rated Output Power
    CCS: 40kW, CHAdeMO: 40kW
  • Charging Standard
    IEC 61851, CHAdeMO
  • Charging Outlet
    CHAdeMO JEVS G105, CCS Combo-2
  • Input Voltage
    400Vac +/-10%, 3-phase
  • Charging Type
    Mode 3
  • Cellular
    LTE Modem, GPRS/3G/4G
  • Efficiency
    > 94% At Rated Output
  • Place of Origin
    Jiangsu,China
  • Brand Name
    ARK or OEM
  • Certification
    CE
  • Model Number
    EF040CJ040
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    wooden box
  • Delivery Time
    20-45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    200 units per month

CHAdeMO DC Fast Charging Stations

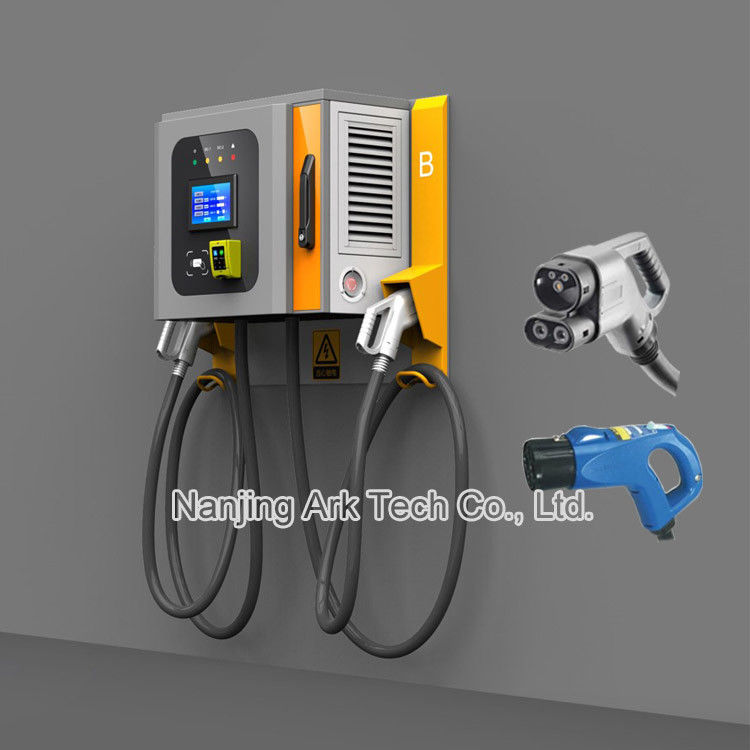

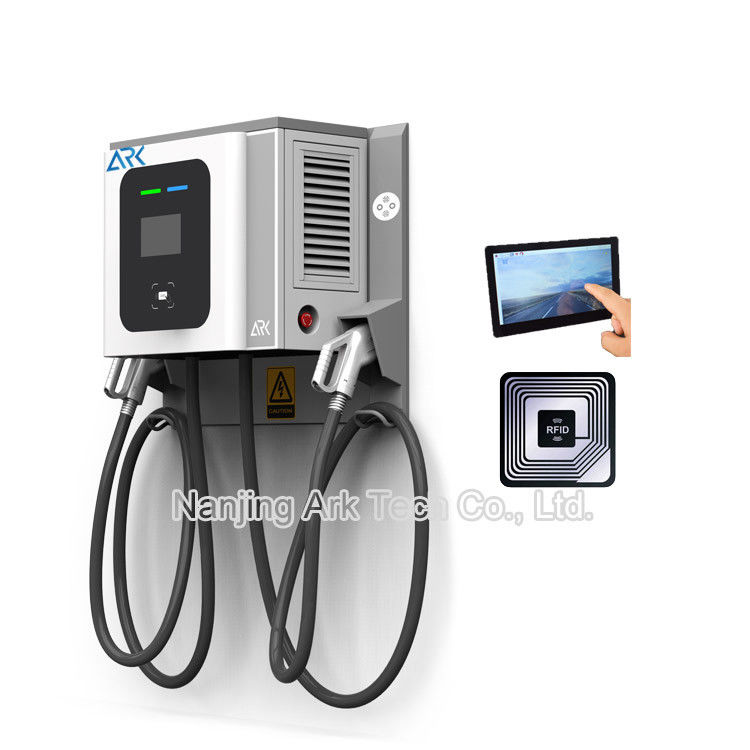

Ark OCPP1.6 Integrated 40KW CCS CHAdeMO EV Charging Stations for Electric Car



Product Introduction


EF040 adopts modern design and can be used for commercial and public charging. Embedded with RFID, Ethernet and LTE functions, it is most suitable for charging applications in shopping malls and companies. It complies with the OCPP1.6J protocol, allowing it to be connected and operated with the global EV charging management platform.





Product Parameters

Technical specifications EF040CJ040
System
Housing material Metal enclosure
Dimension (H x W x D) 600 x 700 x 363mm, 1500 x 700 x 363mm (pedestal mount)
Installation method Wall mount, pedestal mount (optional)
Cable routing Bottom inlet, bottom outlet wiring
Weight N.W.: 95kgs, 120kgs (pedestal mount)
Charging standard IEC 61851, CHAdeMO
Charging outlet CHAdeMO JEVS G105, CCS Combo-2
Outlet number 2
Input
Input voltage 400Vac +/-10%, 3-phase
Input frequency 50Hz/60Hz
Power factor 0.99
Output
Rated output power CCS: 40kW, CHAdeMO: 40kW
Measuring accuracy Level 0.5
Output voltage range CCS: 150 – 1000V, CHAdeMO: 150 – 500V, DC constant rated output @ above 300V
Output current range 0 - 100A
Efficiency > 94% at rated output
General
Charging type Mode 4
User Interface RFID, 7” touch screen, Emergency button
Ethernet 10/100 BaseTX (TCP-IP)
Cellular LTE modem, GPRS/3G/4G
Communication
CAN, PLC, OCPP 1.6 JSON
Application place Indoor/Outdoor
Working temperature -30 °C – +55 °C
Working humidity 5% – 95% non-condensation
Altitude < 2000m
Protection grade IP54
Cooling Fan cooling
Compliance EN 61851-1:2010, EN 61851-1:2017, IEC 61851-21-2:2018, EN 61851-23:2014, EN 61851-24:2014

CHAdeMO DC Fast Charging Stations 0CHAdeMO DC Fast Charging Stations 1




Features



1. Smart Communication Protocol
- Communication protocol meets OCPP 1.6J, which has successfully connected with many European operators due to its good compatibility.

- The back office system is equipped with remote upgrading, message duplicating, fault diagnosis, intelligent charging and other functions.

2. Multiple Charging Mode
- Totally four charging modes of automatic charging, reservation charging, ration charging and SOC charging could be selected according to actual situation. Start methods of plug and charge, by RFID card, by APP and by pressing start button could also be set freely aims to meet different requests of various customers.

3. Easy-to-control HMI Interface
- English, Italian, Czech, French and Spanish version HMI interface adopted, various languages could be selected. Computer back office system, Mobile apps and HMI interface could be selected to monitor the charging state and related parameters could be supplied for effective judgment.

4. Perfect Security Protection
- Protect Functions: Overvoltage, over current, input/output default phase, residual current protection, inverse time limit when motor overload, etc





Application

Retail and mall parking spaces
Fleet charging stations
Highway service areas
Workplaces
Residences, etc.




Company Introduction

The foresight of the Ark Technology team can provide you with stable and reliable DC charging solutions and services. With rich experience and knowledge in electrical and digital power supply, we provide you with the most professional and practical project implementation guide. Our products have passed various application scenarios and laboratory standard tests. You can purchase our charging station products without any worries and get our professional service support.


FAQ



Q: Do your charger support the OCPP function?

Yes, our charger support the OCPP 1.6, it can be connected to Internet via Ethernet, 3G/4G.



Q: How about the quality and warranty about the charger?

All of our chargers are CE certificated. We supply 12 months warranty for the charger, what'more, we supply whole life techinical support.



NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
