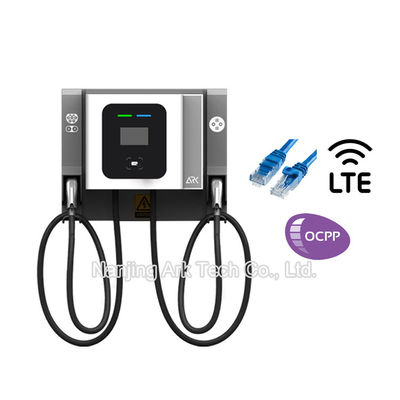

| Technical specifications | EF040CJ030 |
| System | |
| Housing material | Metal enclosure |
| Dimension (H x W x D) | 600 x 700 x 363mm, 1500 x 700 x 363mm (pedestal mount) |
| Installation method | Wall mount, pedestal mount (optional) |
| Cable routing | Bottom inlet, bottom outlet wiring |
| Weight | N.W.: 95kgs, 120kgs (pedestal mount) |
| Charging standard | IEC 61851, CHAdeMO |
| Charging outlet | CHAdeMO JEVS G105, CCS Combo-2 |
| Outlet number | 2 |
| Input | |
| Input voltage | 400Vac +/-10%, 3-phase |
| Input frequency | 50Hz/60Hz |
| Power factor | 0.99 |
| Output | |
| Rated output power | CCS: 30kW, CHAdeMO: 30kW |
| Measuring accuracy | Level 0.5 |
| Output voltage range | CCS: 150 – 1000V, CHAdeMO: 150 – 500V, DC constant rated output @ above 300V |
| Output current range | 0 - 100A |
| Efficiency | > 94% at rated output |
| General | |
| Charging type | Mode 4 |
| User Interface | RFID, 7” touch screen, Emergency button |
| Ethernet | 10/100 BaseTX (TCP-IP) |
| Cellular | LTE modem, GPRS/3G/4G |
| Communication |
CAN, PLC, OCPP 1.6 JSON
|
| Application place | Indoor/Outdoor |
| Working temperature | -30 °C – +55 °C |
| Working humidity | 5% – 95% non-condensation |
| Altitude | < 2000m |
| Protection grade | IP54 |
| Cooling | Fan cooling |
| Compliance | EN 61851-1:2010, EN 61851-1:2017, IEC 61851-21-2:2018, EN 61851-23:2014, EN 61851-24:2014 |
Features
The Ark Tech team has a great vision to provide you with stable and reliable DC charging solutions and services. With extensive experience and knowledge of electrical and digital power supply, we provide you with the most professional and practical project implementation guidance.
Nanjing Ark Tech Co., Ltd. was established in 2016. It is committed to the development of DC charger international business and client software, to make up for the lack of Chinese DC charger manufacturers' international market and customer service.
Our products have passed various application scenarios and laboratory standard tests. You can buy our charging station products without any concerns and receive our professional service support.
FAQ
Q: Do your charger support the OCPP function?
Yes, our charger support the OCPP 1.6, it can be connected to Internet via Ethernet, 3G/4G.
Q: How about the quality and warranty about the charger?
All of our chargers are CE certificated. We supply 24 months warranty for the charger, what'more, we supply whole life techinical support.
NOTE:
1- OEM supported.
2- Any requirement please contact us to talk about the details.
3- We will reply you for your inquiry in 24 hours.
4- If you have any questions about the charger, please contact us.
5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
Our products are sold all over the world, you can rest assured.
