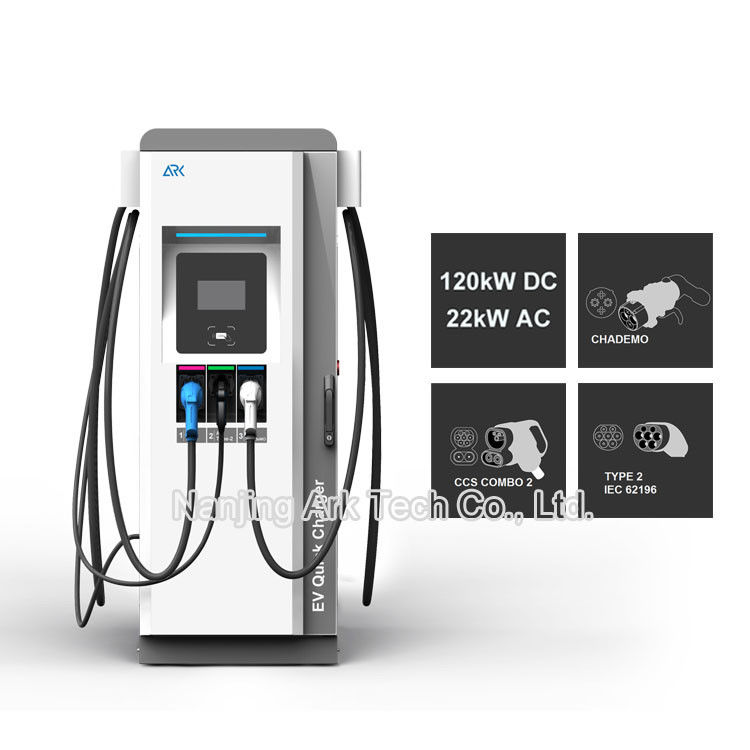

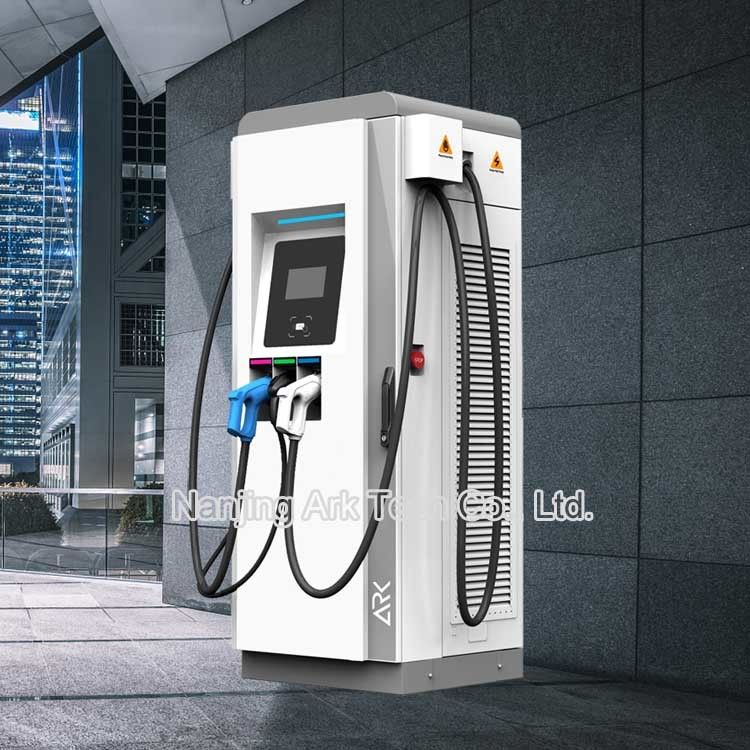

EV Charger Plug EV Charger Station AC And DC With Triple Plug With 5m Cable Europe Standard
EF160 DC charger adopts modern design and can be used for commercial and public charging. Embedded with RFID, Ethernet and LTE functions, it is most suitable for charging applications in highway service are and fleet charging. It complies with the OCPP1.6J protocol, allowing it to be connected and operated with the global EV charging management platform.
|Dimension (H x W x D)
|1900 x 700 x 700mm
|Bottom inlet, top outlet wiring
|CCS combo-1/2, CHAdeMO & AC IEC 61851
|CHAdeMO JEVS G105, CCS Combo-2, IEC 62196 Type-2
|400Vac +/-10%, 3-phase
|Rated output power
|CCS: 60kW, CHAdeMO: 60kW, AC: 22kW
|CCS: 120kW, CHAdeMO: 60kW, AC:22kW
|Output voltage range
|150 – 750V DC constant output @ above 300V, 400V AC
|Output current range
|0 - 200A DC, 32A AC
|0 - 400A DC, 32A AC
|> 94% at rated output
|RFID, 7” touch screen, Emergency button
|10/100 BaseTX (TCP-IP)
|LTE modem, GPRS/3G/4G
|CAN, PLC, PWM, OCPP 1.6 JSON
|-20 °C – +70 °C
|5% – 95% non-condensation
|Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection
Its modular design structure allows free configuration of power modules and electrical components-increasing the output power from 60kW to 150kW.
Ethernet/WiFi/3g/4g communication application.
RFID card reader.
Credit card payment method (optional).
IP54 protection level can extend the life of dust and moisture proof.
Support multiple billing standards, including CCS combo-1, CCS combo-2, CHAdeMO and GB/T.
Integrated option with AC charging connector and cable or socket.
Lightweight and compact design reduces transportation cost and installation difficulty.
This series of chargers can run stably in various application scenarios and environments even at low or high temperatures
At Ark Tech, we want to establish a one-stop turnkey EV AC&DC Charger solutions that enable we are your first choice when it comes to implement EV AC&DC charger projects. The Ark Tech team has a great vision to provide you with stable and reliable DC charging solutions and services. With extensive experience and knowledge of electrical and digital power supply, we provide you with the most professional and practical project implementation guidance.
Q: Do your charger support the OCPP function?
Yes, our charger support the OCPP 1.6, it can be connected to Internet via Ethernet, 3G/4G.
Q: How about the quality and warranty about the charger?
All of our chargers are CE certificated. We supply 24 months warranty for the charger, what'more, we supply whole life techinical support.
1- OEM supported.
2- Any requirement please contact us to talk about the details.
3- We will reply you for your inquiry in 24 hours.
4- If you have any questions about the charger, please contact us.
5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
