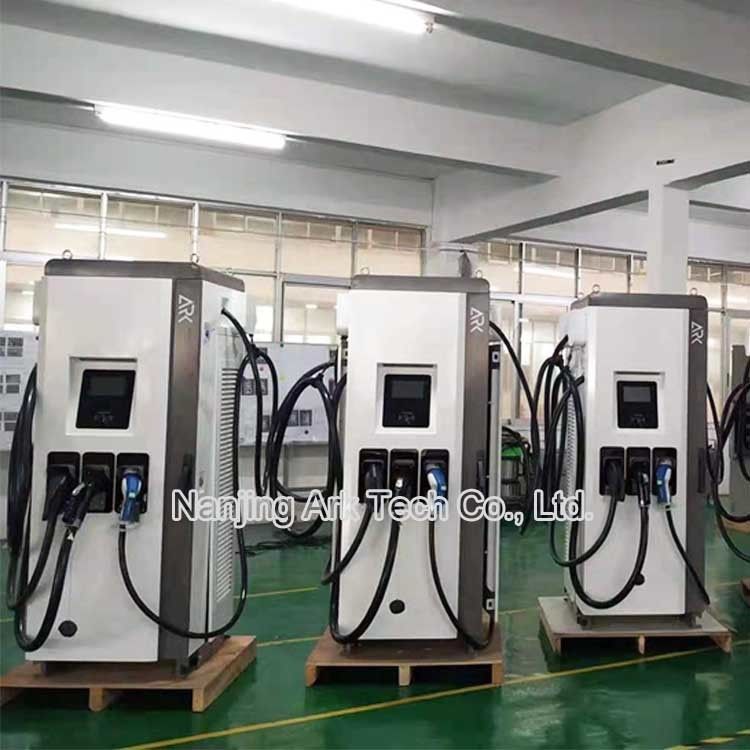

120KW CCS CHAdeMO Public Electric Vehicle Charging Stations

120KW CCS CHAdeMO Public Electric Vehicle Charging Stations

Products - Public EV Charging Stations
  • High Light

    CHAdeMO Public Electric Vehicle Charging Stations

    ,

    CCS Public Electric Vehicle Charging Stations

    ,

    120KW ev public charging

  • Warranty
    2 Years
  • Input Voltage Range
    400Vac +/-10%, 3-phase
  • Housing Material
    Metal
  • Output Power
    CCS: 60kW, CHAdeMO: 60kW, AC: 22kW
  • Efficiency
    >94%
  • Charging Standard
    CCS Combo-1/2, CHAdeMO & AC IEC 61851
  • Place of Origin
    Jiangsu,China
  • Brand Name
    ARK or OEM
  • Certification
    CE
  • Model Number
    EF160CJ082
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    wooden box
  • Delivery Time
    45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    200 sets per month

120KW CCS CHAdeMO Public Electric Vehicle Charging Stations

  • 120KW CCS CHAdeMO Public Electric Vehicle Charging Stations
  • 120KW CCS CHAdeMO Public Electric Vehicle Charging Stations
  • 120KW CCS CHAdeMO Public Electric Vehicle Charging Stations
Get Price Contact Now

Ark 120KW CCS and CHAdeMO Public EV DC Fast Charger For with OCPP 1.6 RFID and Touch Screen​



Product Introduction



The eFelx DC fast charging station is a dual DC outlets (CHAdeMO and CCS) 60 to 150kW fast charger with an optional Type-2 AC output up to 22kW that can be configured to meet different charging needs of both European and North American customers. It supports all three connectors charging simultaneously and balancer reel for advanced cable management.





Product Parameters



System
Housing material Metal enclosure
Dimension (H x W x D) 1900 x 700 x 700mm
Installation method Ground mount
Cable routing Bottom inlet, top outlet wiring
Weight 355kgs
Charging standard CCS combo-1/2, CHAdeMO & AC IEC 61851
Charging outlet CHAdeMO JEVS G105, CCS Combo-2, IEC 62196 Type-2
Outlet number 3
Input
Input voltage 400Vac +/-10%, 3-phase
Input frequency 50Hz/60Hz
Power factor 0.99
Output
Rated output power CCS: 60kW, CHAdeMO: 60kW, AC: 22kW CCS: 120kW, CHAdeMO: 60kW, AC:22kW
Measuring accuracy Level 0.5
Output voltage range 150 – 750V DC constant output @ above 300V, 400V AC
Output current range 0 - 200A DC, 32A AC 0 - 400A DC, 32A AC
Efficiency > 94% at rated output
General
Charging type Mode 4
User Interface RFID, 7” touch screen, Emergency button
Ethernet 10/100 BaseTX (TCP-IP)
Cellular LTE modem, GPRS/3G/4G
Communication CAN, PLC, PWM, OCPP 1.6 JSON
Application place Indoor/Outdoor
Working temperature -20 °C – +70 °C
Working humidity 5% – 95% non-condensation
Altitude < 2000m
Protection grade IP54
Cooling Fan cooling
Security design Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection



120KW CCS CHAdeMO Public Electric Vehicle Charging Stations 0120KW CCS CHAdeMO Public Electric Vehicle Charging Stations 1



Features



Its metal casing and semi-gross coating ensure the appearance of the texture and meet the long-term outdoor use.
Compliant with OCPP 1.6 and above enables it to connect to the global EV charge management platform without additional integration and matching.
It offers balancer reel of each outlet which makes it more convenient for you to use and save effort, and prevent the charging cable from being damaged.




Company Details



The Ark Tech team has a great vision to provide you with stable and reliable DC charging solutions and services. With extensive experience and knowledge of electrical and digital power supply, we provide you with the most professional and practical project implementation guidance.

Nanjing Ark Tech Co., Ltd. was established in 2016. It is committed to the development of DC charger international business and client software, to make up for the lack of Chinese DC charger manufacturers' international market and customer service.

Our products have passed various application scenarios and laboratory standard tests. You can buy our charging station products without any concerns and receive our professional service support.







FAQ



Q: Do your charger support the OCPP function?

Yes, our charger support the OCPP 1.6, it can be connected to Internet via Ethernet, 3G/4G.



Q: How about the quality and warranty about the charger?

All of our chargers are CE certificated. We supply 24 months warranty for the charger, what'more, we supply whole life techinical support.



NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
