CHAdeMO DC Fast Charging Stations

CHAdeMO DC Fast Charging Stations

  • High Light

    IP54 ark CHAdeMO DC Fast Charging Stations

    ,

    IP54 ark 400V DC Fast Charging Stations

    ,

    IP54 ark 120KW dc quick charging stations

  • Warranty
    24 Months
  • Input Voltage Range
    400Vac +/-10%, 3-phase
  • Housing Material
    Metal
  • Output Power
    CCS: 60kW, CHAdeMO: 60kW, AC: 22kW
  • Efficiency
    >94%
  • Charging Standard
    CCS Combo-1/2, CHAdeMO & AC IEC 61851
  • Place of Origin
    Jiangsu,China
  • Brand Name
    ARK or OEM
  • Certification
    CE
  • Model Number
    EF160CJ142
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    wooden box
  • Delivery Time
    45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    200 sets per month

CHAdeMO DC Fast Charging Stations

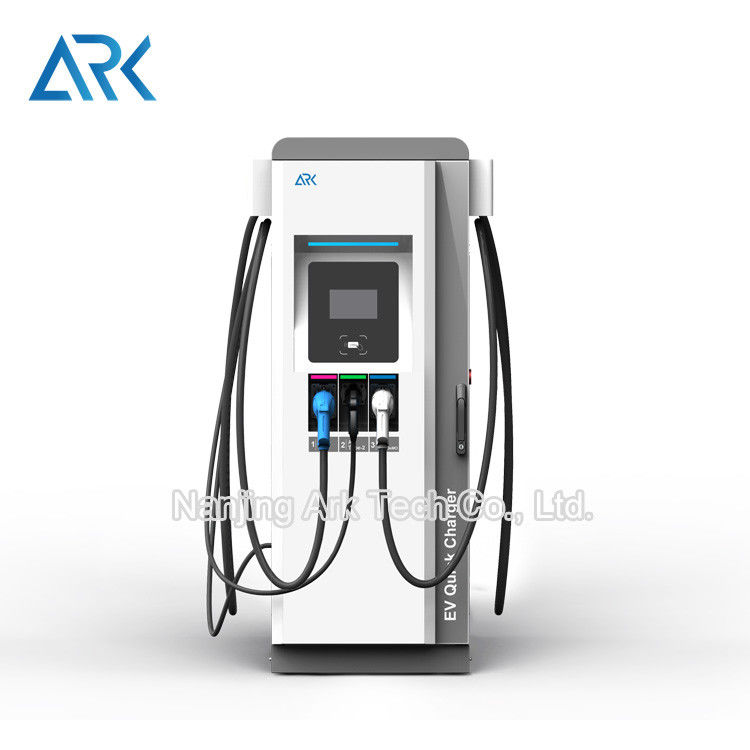

 Ark 120KW CCS CHAdeMO DC Fast Electric Car Charger Point with 22kW AC Type - 2 OCPP RFID and CE



Product Introduction



EF160 DC charger adopts modern design and can be used for commercial and public charging. Embedded with RFID, Ethernet and LTE functions, it is most suitable for charging applications in highway service are and fleet charging. It complies with the OCPP1.6J protocol, allowing it to be connected and operated with the global EV charging management platform.






Product Parameters



System
Housing material Metal enclosure
Dimension (H x W x D) 1900 x 700 x 700mm
Installation method Ground mount
Cable routing Bottom inlet, top outlet wiring
Weight 355kgs
Charging standard CCS combo-1/2, CHAdeMO & AC IEC 61851
Charging outlet CHAdeMO JEVS G105, CCS Combo-2, IEC 62196 Type-2
Outlet number 3
Input
Input voltage 400Vac +/-10%, 3-phase
Input frequency 50Hz/60Hz
Power factor 0.99
Output
Rated output power CCS: 60kW, CHAdeMO: 60kW, AC: 22kW CCS: 120kW, CHAdeMO: 60kW, AC:22kW
Measuring accuracy Level 0.5
Output voltage range 150 – 750V DC constant output @ above 300V, 400V AC
Output current range 0 - 200A DC, 32A AC 0 - 400A DC, 32A AC
Efficiency > 94% at rated output
General
Charging type Mode 4
User Interface RFID, 7” touch screen, Emergency button
Ethernet 10/100 BaseTX (TCP-IP)
Cellular LTE modem, GPRS/3G/4G
Communication CAN, PLC, PWM, OCPP 1.6 JSON
Application place Indoor/Outdoor
Working temperature -20 °C – +70 °C
Working humidity 5% – 95% non-condensation
Altitude < 2000m
Protection grade IP54
Cooling Fan cooling
Security design Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection



CHAdeMO DC Fast Charging Stations 0CHAdeMO DC Fast Charging Stations 1




Features



Its modular design structure allows free configuration of power modules and electrical components-increasing the output power from 60kW to 150kW.
Ethernet/WiFi/3g/4g communication application.
RFID card reader.
Credit card payment method (optional).
IP54 protection level can extend the life of dust and moisture proof.
Support multiple billing standards, including CCS combo-1, CCS combo-2, CHAdeMO and GB/T.
Integrated option with AC charging connector and cable or socket.
Lightweight and compact design reduces transportation cost and installation difficulty.
This series of chargers can run stably in various application scenarios and environments even at low or high temperatures




Company  Details



At Ark Tech, we want to establish a one-stop turnkey EV AC&DC Charger solutions that enable we are your first choice when it comes to implement EV AC&DC charger projects. The Ark Tech team has a great vision to provide you with stable and reliable DC charging solutions and services. With extensive experience and knowledge of electrical and digital power supply, we provide you with the most professional and practical project implementation guidance.








FAQ



Q: Do your charger support the OCPP function?

Yes, our charger support the OCPP 1.6, it can be connected to Internet via Ethernet, 3G/4G.



Q: How about the quality and warranty about the charger?

All of our chargers are CE certificated. We supply 24 months warranty for the charger, what'more, we supply whole life techinical support.



NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
