30KW Public EV Charging Stations

30KW Public EV Charging Stations

  • High Light

    30KW Public EV Charging Stations

    ,

    400V Public EV Charging Stations

    ,

    CHAdeMO public car charging

  • Rated Output Power
    30kW
  • Charging Standard
    CCS1/2, CHAdeMO
  • Charging Outlet
    CHAdeMO, CCS1/2
  • Input Voltage
    400Vac +/-10%
  • Input Frequency
    50Hz Or 60Hz
  • Cellular
    WIFI, 3G/4G
  • Efficiency
    > 94%
  • Place of Origin
    Jiangsu,China
  • Brand Name
    ARK or OEM
  • Certification
    CE
  • Model Number
    EF040CJ030
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    wooden box
  • Delivery Time
    20-45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    200 units per month

30KW Public EV Charging Stations

Solar Charging DC Station For Electric Vehicles With 30kw And OCPP RFID Functions

Product Introduction

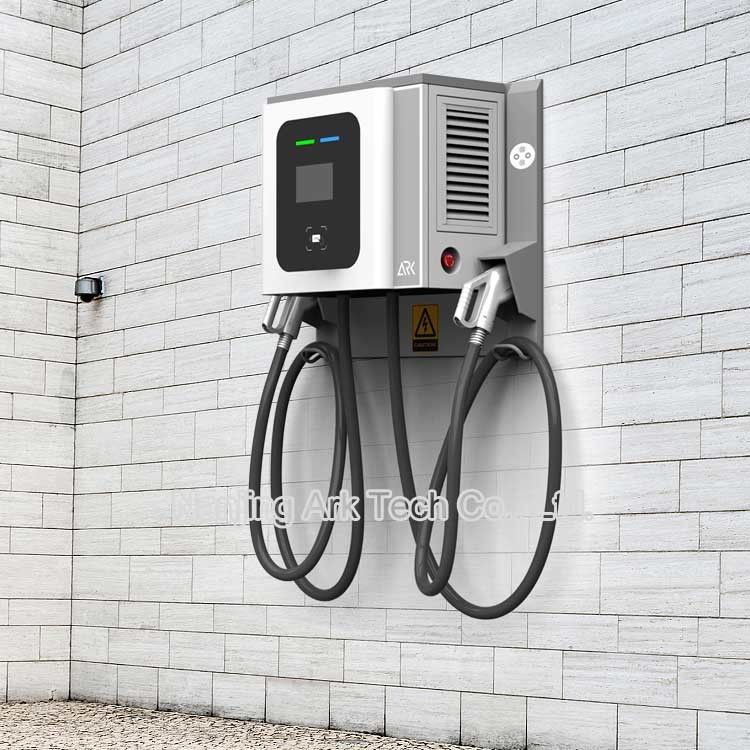

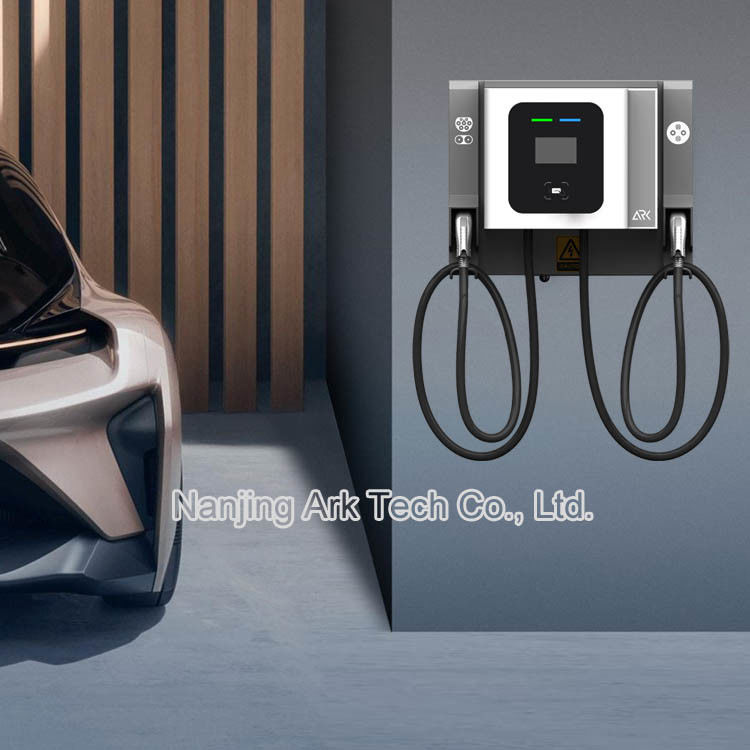

The EF040 offers a modern design for commercial and public charging. Embedded RFID, Ethernet, and LTE capabilities make it ideal for mall and corporate charging applications. Compatible with OCPP 1.6J protocol, it can be connected with the global EV charging management platform for operation.





Product Parameters

Technical specifications EF040CJ030
System
Housing material Metal enclosure
Dimension (H x W x D) 600 x 700 x 363mm, 1500 x 700 x 363mm (pedestal mount)
Installation method Wall mount, pedestal mount (optional)
Cable routing Bottom inlet, bottom outlet wiring
Weight N.W.: 95kgs, 120kgs (pedestal mount)
Charging standard IEC 61851, CHAdeMO
Charging outlet CHAdeMO JEVS G105, CCS Combo-2
Outlet number 2
Input
Input voltage 400Vac +/-10%, 3-phase
Input frequency 50Hz/60Hz
Power factor 0.99
Output
Rated output power CCS: 30kW, CHAdeMO: 30kW
Measuring accuracy Level 0.5
Output voltage range CCS: 150 – 1000V, CHAdeMO: 150 – 500V, DC constant rated output @ above 300V
Output current range 0 - 100A
Efficiency > 94% at rated output
General
Charging type Mode 4
User Interface RFID, 7” touch screen, Emergency button
Ethernet 10/100 BaseTX (TCP-IP)
Cellular LTE modem, GPRS/3G/4G
Communication
CAN, PLC, OCPP 1.6 JSON
Application place Indoor/Outdoor
Working temperature -30 °C – +55 °C
Working humidity 5% – 95% non-condensation
Altitude < 2000m
Protection grade IP54
Cooling Fan cooling
Compliance EN 61851-1:2010, EN 61851-1:2017, IEC 61851-21-2:2018, EN 61851-23:2014, EN 61851-24:2014

30KW Public EV Charging Stations 030KW Public EV Charging Stations 1




Features

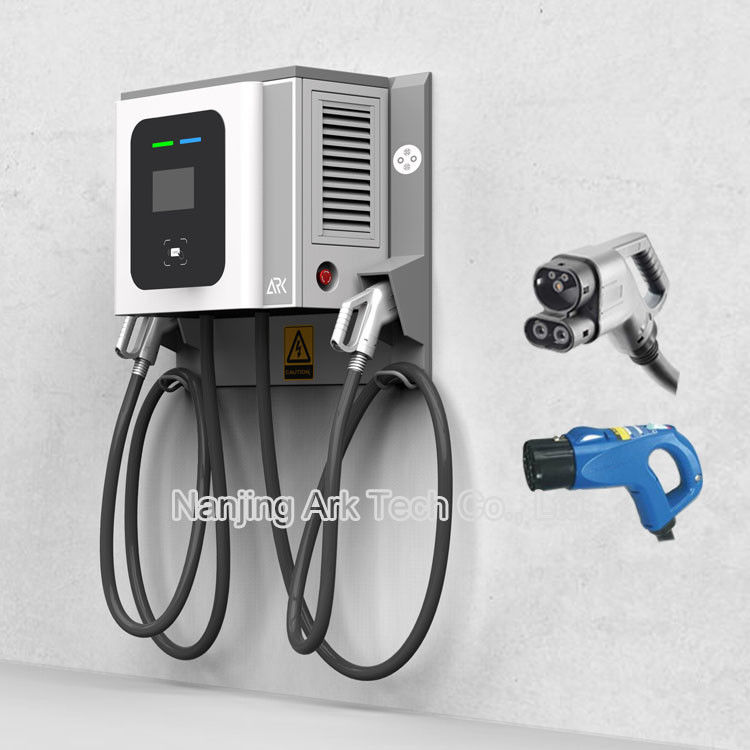

Supports connector and outlet sockets to meet different customer requirements. The front socket ensures that customers can easily charge even with a wall-mounted device
The charger built-in leakage protection self-reset function, so that the operator does not need to go to the site for maintenance. Improve operational efficiency and reduce additional labor waste.





Application

Retail and mall parking spaces
Fleet charging stations
Highway service areas
Workplaces
Residences, etc.




Company Introduction

Since its launch in 2016, Ark has been committed to the issue of convenient charging and the construction of charging infrastructure. In 2017, we designed and produced the first generation DC charger. Now our second generation DC charger and AC electric car charger products have been certified, which will be more conducive to expanding the market. Over the years, our business has continued to grow, reaching an annual turnover of $10 million! Our products also enjoy a good reputation all over the world. Here is our company profile.




FAQ:



Q1. What is your terms of packing?
A: Generally, we pack our goods in cartons or wooden box.



Q2. What is your terms of payment?
A: Paypal,TT,Western union,a trade assurance,L/C .


Q3. What is your terms of delivery?How do you deliver your goods to me?How long will it take?
A: FOB, CFR, CIF, DDU,DAP.We have various ways of shipment for customers to choose, DHL, TNT, UPS, Air freight, Ocean freight. If not have the special requirements, the weight of products less than 50kgs will be arranged by DHL (3-5 days arrive), the weight of products more than 50 kgs will be arranged by Ocean freight (around 30 days arrive). But pls note that this is just the time of transportation, the producing time of products will be varied from 10days to 45 days based on the quantity of order, the level of busyness in production line.



Q4. How about your delivery time?
A: Generally, it will take 5-7days for samples and 15-20days for mass production order after receiving your advance payment or deposit. The specific delivery time depends on the product of your order.



Q5. What is your sample policy?
A: We can supply the sample, the customers have to pay the sample cost and the courier cost.



Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery



Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.



Q8. Do your products have quality certification? How long is the warranty time?
All of our EV charging products posses with CE certifications, 24 months warranty for ev charger.



Q9. Can we require you to print our logo on your products?
We support OEM production, but the order quantity must be more than 25pcs.


Q10. How is your product quality? In case of problem occurs, what should I do?
Firstly, we sell our products for several years, we have the professional engineer team in this field. Moreover, our products have to pass strict inspections and repeated tests before they go out, rate of fine variety is 99.98%. If it is the quality which lead to the failure in use, we will provide the new one to replace for free.
