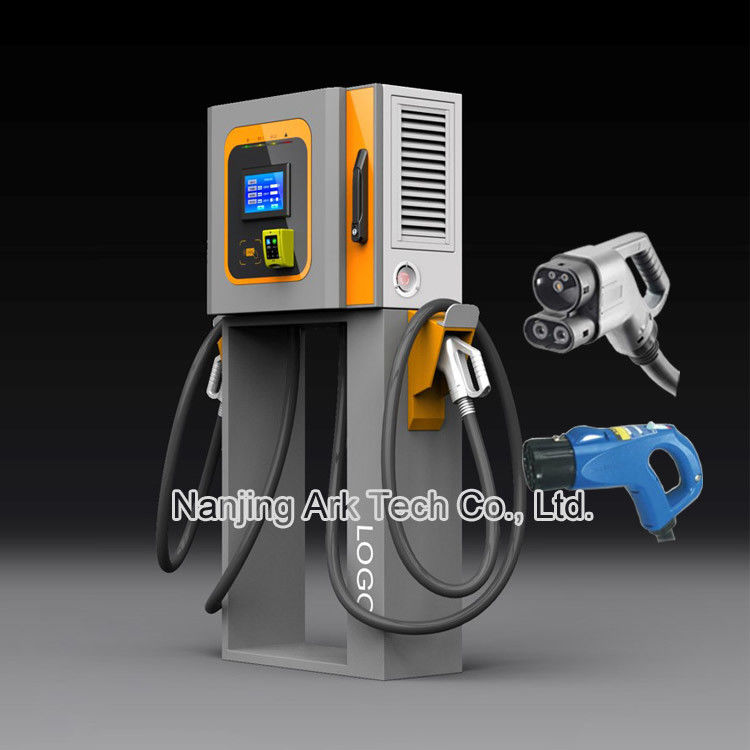

The EF040 offers a modern design for commercial and public charging. Embedded RFID, Ethernet, and LTE capabilities make it ideal for mall and corporate charging applications. Compatible with OCPP 1.6J protocol, it can be connected with the global EV charging management platform for operation.
Technical specifications | EF040CJ030 |
System | |
Housing material | Metal enclosure |
Dimension (H x W x D) | 600 x 700 x 363mm, 1500 x 700 x 363mm (pedestal mount) |
Installation method | Wall mount, pedestal mount (optional) |
Cable routing | Bottom inlet, bottom outlet wiring |
Weight | N.W.: 95kgs, 120kgs (pedestal mount) |
Charging standard | IEC 61851, CHAdeMO |
Charging outlet | CHAdeMO JEVS G105, CCS Combo-2 |
Outlet number | 2 |
Input | |
Input voltage | 400Vac +/-10%, 3-phase |
Input frequency | 50Hz/60Hz |
Power factor | 0.99 |
Output | |
Rated output power | CCS: 30kW, CHAdeMO: 30kW |
Measuring accuracy | Level 0.5 |
Output voltage range | CCS: 150 – 1000V, CHAdeMO: 150 – 500V, DC constant rated output @ above 300V |
Output current range | 0 - 100A |
Efficiency | > 94% at rated output |
General | |
Charging type | Mode 4 |
User Interface | RFID, 7” touch screen, Emergency button |
Ethernet | 10/100 BaseTX (TCP-IP) |
Cellular | LTE modem, GPRS/3G/4G |
Communication |
CAN, PLC, OCPP 1.6 JSON
|
Application place | Indoor/Outdoor |
Working temperature | -30 °C – +55 °C |
Working humidity | 5% – 95% non-condensation |
Altitude | < 2000m |
Protection grade | IP54 |
Cooling | Fan cooling |
Compliance | EN 61851-1:2010, EN 61851-1:2017, IEC 61851-21-2:2018, EN 61851-23:2014, EN 61851-24:2014 |
Features
Supports connector and outlet sockets to meet different customer requirements. The front socket ensures that customers can easily charge even with a wall-mounted device
The charger built-in leakage protection self-reset function, so that the operator does not need to go to the site for maintenance. Improve operational efficiency and reduce additional labor waste.
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in cartons or wooden box.
Q2. What is your terms of payment?
A: Paypal,TT,Western union,a trade assurance,L/C .
Q3. What is your terms of delivery?How do you deliver your goods to me?How long will it take?
A: FOB, CFR, CIF, DDU,DAP.We have various ways of shipment for customers to choose, DHL, TNT, UPS, Air freight, Ocean freight. If not have the special requirements, the weight of products less than 50kgs will be arranged by DHL (3-5 days arrive), the weight of products more than 50 kgs will be arranged by Ocean freight (around 30 days arrive). But pls note that this is just the time of transportation, the producing time of products will be varied from 10days to 45 days based on the quantity of order, the level of busyness in production line.
Q4. How about your delivery time?
A: Generally, it will take 5-7days for samples and 15-20days for mass production order after receiving your advance payment or deposit. The specific delivery time depends on the product of your order.
Q5. What is your sample policy?
A: We can supply the sample, the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q8. Do your products have quality certification? How long is the warranty time?
All of our EV charging products posses with CE certifications, 24 months warranty for ev charger.
Q9. Can we require you to print our logo on your products?
We support OEM production, but the order quantity must be more than 25pcs.
Q10. How is your product quality? In case of problem occurs, what should I do?
Firstly, we sell our products for several years, we have the professional engineer team in this field. Moreover, our products have to pass strict inspections and repeated tests before they go out, rate of fine variety is 99.98%. If it is the quality which lead to the failure in use, we will provide the new one to replace for free.
