OCPP 1.6 CE Public EV Charging Stations With Mobile App Integration

OCPP 1.6 CE Public EV Charging Stations With Mobile App Integration

  • High Light

    IP54 ark OCPP 1.6 Public EV Charging Stations

    ,

    IP54 ark CE Public EV Charging Stations

    ,

    IP54 ark Mobile level 2 public charging stations

  • Rated Output Power
    30kW
  • Charging Standard
    CCS And CHAdeMO
  • Charging Outlet
    CHAdeMO, CCS
  • Input Voltage
    400Vac +/-10%
  • Charging Type
    Mode 3.
  • Cellular
    LTE, GPRS/3G/4G
  • Efficiency
    > 94%
  • Place of Origin
    Jiangsu,China
  • Brand Name
    ARK or OEM
  • Certification
    CE
  • Model Number
    EF040CJ030
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    wooden box
  • Delivery Time
    20-45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    200 units per month

OCPP 1.6 CE Public EV Charging Stations With Mobile App Integration

ARK Supply OCPP1.6 DC Fast Charger Of 30KW 400V With Mobile App Integration

Product Introduction


The EFLEX Quick Charger provides fast battery charging and supports two charging connectors.
It is a flexible open charging station that can be charged independently or integrated with any central system on any network.

It features a high quality and robust housing with anticorrosion protection equivalent to stainless steel to ensure extended equipment life. You can also personalize it with custom graphics, logos, and colors to get the overall look of your brand.






Product Parameters

Technical specifications EF040CJ030
System
Housing material Metal enclosure
Dimension (H x W x D) 600 x 700 x 363mm, 1500 x 700 x 363mm (pedestal mount)

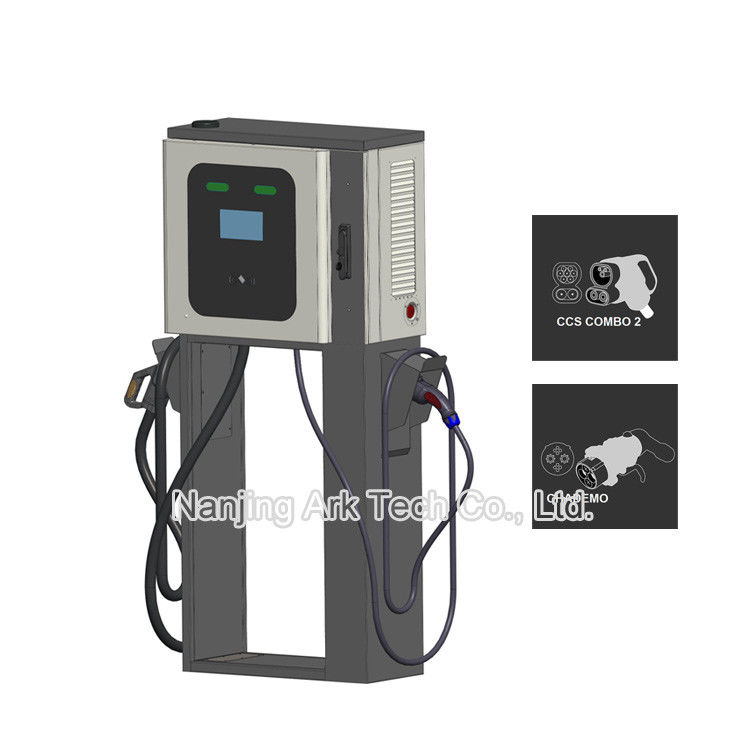

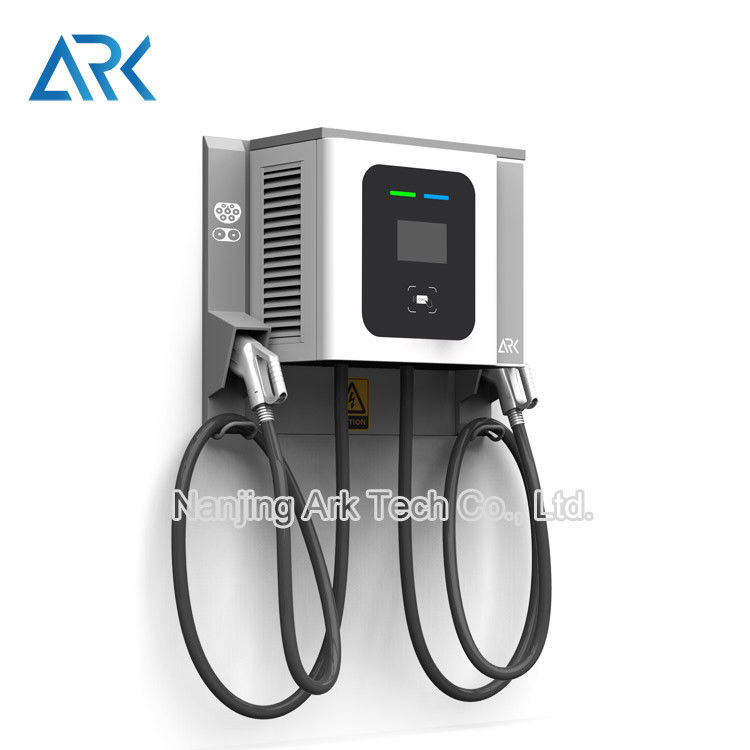

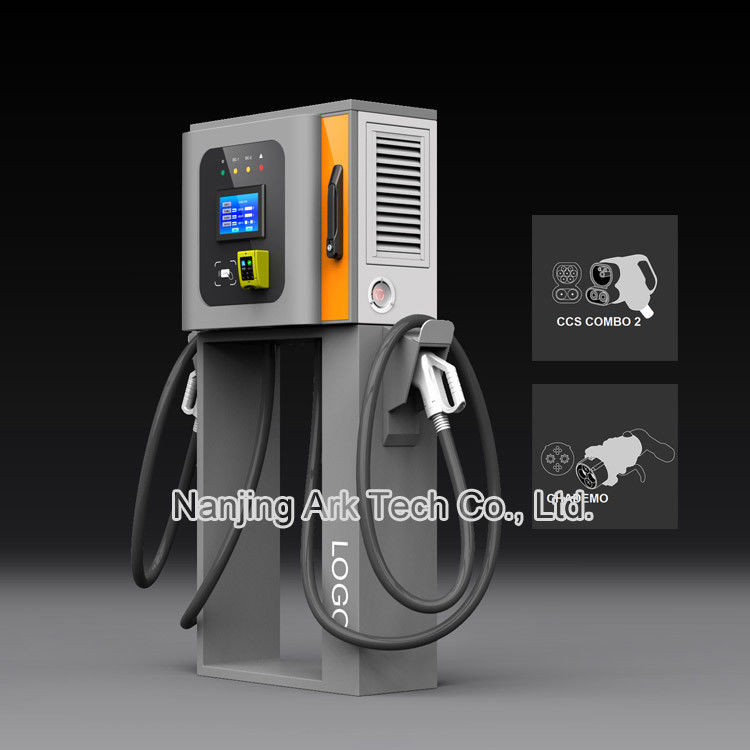

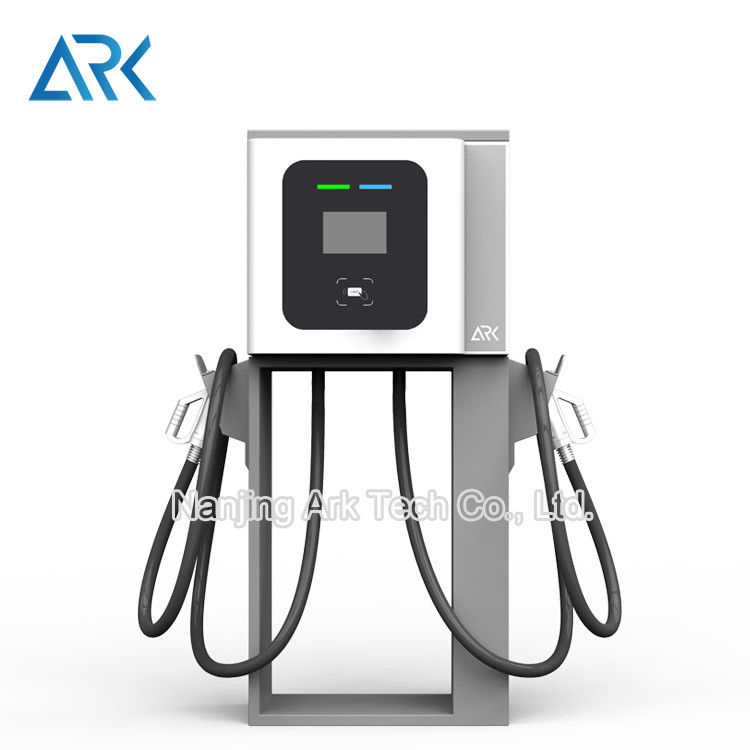

Installation method Wall mount, pedestal mount (optional)
Cable routing Bottom inlet, bottom outlet wiring
Weight N.W.: 95kgs, 120kgs (pedestal mount)
Charging standard IEC 61851, CHAdeMO
Charging outlet CHAdeMO JEVS G105, CCS Combo-2
Outlet number 2
Input
Input voltage 400Vac +/-10%, 3-phase
Input frequency 50Hz/60Hz
Power factor 0.99
Output
Rated output power CCS: 30kW, CHAdeMO: 30kW
Measuring accuracy Level 0.5
Output voltage range CCS: 150 – 1000V, CHAdeMO: 150 – 500V, DC constant rated output @ above 300V
Output current range 0 - 100A
Efficiency > 94% at rated output
General
Charging type Mode 4
User Interface RFID, 7” touch screen, Emergency button
Ethernet 10/100 BaseTX (TCP-IP)
Cellular LTE modem, GPRS/3G/4G
Communication
CAN, PLC, OCPP 1.6 JSON
Application place Indoor/Outdoor
Working temperature -30 °C – +55 °C
Working humidity 5% – 95% non-condensation
Altitude < 2000m
Protection grade IP54
Cooling Fan cooling
Compliance EN 61851-1:2010, EN 61851-1:2017, IEC 61851-21-2:2018, EN 61851-23:2014, EN 61851-24:2014

OCPP 1.6 CE Public EV Charging Stations With Mobile App Integration 0OCPP 1.6 CE Public EV Charging Stations With Mobile App Integration 1




Features



Fast, safe and reliable charging process

After the identification, the user only needs to select the charging standard compatible with the vehicle and connect the output plug of the charger to the electric vehicle, and the charging process will be quickly guaranteed and verified.



Convenient charging

Display battery charging status. Charging cycle ends by itself or can be terminated by user command.



Provides different output options

Different output options, such as CCS, CHADEMO, or AC, have different combinations.





Application

Retail and mall parking spaces
Fleet charging stations
Highway service areas
Workplaces
Residences, etc.




Company Introduction

Ark Technology cooperates with many customers around the world, and has rich experience in product customization, understanding customers' preferences, and providing different products and solutions for each customer around the world.
To solve the problem of electric vehicle charging for customers, so that we work harder to provide customers with timely, effective and considerate service.





FAQ

1. Why choose us as your preferred EV Charger supplier?

I. The professional technical team and long-term vision of the industry ensure that we are always in the industry leading position. We offer a wide range of product options: charging stations for various charging standards, international standardization design, and smart back-end services.

II. Our products have passed various application scenarios and laboratory standard tests. You can buy our charging station products without any concerns and receive our professional service support.

III. The only Chinese EV Charger vendor who is willing and able to achieve CE and UL certificate currently.

IV. Our team members are the first batch of sales and engineers who is working in developing and selling global standard EV DC Charger which ensure we have plenty of experience implement global EV DC charger projects and have the foresight to lead EV charger products.



2. What are the advantages of your products?

I. Telecom level product design and production.

II. Multiple charging standards support including CCS-1/2, CHAdeMO and GB/T, which means we can offer you all standards EV DC charger you want.

III. Quality comes first with wider input & output voltage range, lower voltage output range, better temperature adapted, higher protection grade, a longer technical foresight and most advanced modular design.

IV. Fast customer response, prefessional technical support and more solutions come out.



3. Can you explain the differences of global DC fast charging standards?

Till now, there are 5 kinds of DC fast charging standards: CCS-1, CCS-2. CHAdeMO, GB/T and Tesla.

CCS-1: DC fast charging standard for North America. Typical charging EVs: Chevy Bolt.

CCS-2: DC fast charging standard for Europe. Typical charging EVs: BMW i3, VW e-Golf, Porsche Mission-e.

CHAdeMO: DC fast charging standard for Japan. Typical charging EVs: Nissan Leaf.

GB/T: DC fast charging standard for China. Typical charging EVs: BYD, JAC, BAIC.

Tesla: DC fast charging standard for Tesla only. Typical charging EVs: Tesla Model S, Model X, Model 3.



4. If we purchase your EV DC charger, how to get your after-sales support?

In general, we will provide comprehensive after-sales technical training, including the provision of written training materials, training videos or invite customer technical personnel for face-to-face training, to help customers master parts replacement and basic maintenance work. In case of emergency, we will also send professional technicians to provide on-site support.
