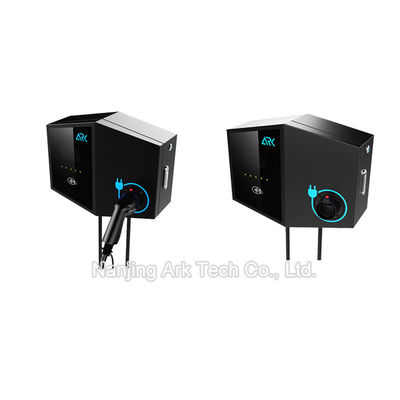

ARK CE AC EV Charger , 400V Public Electric Car Charging Stations

ARK CE AC EV Charger , 400V Public Electric Car Charging Stations

  • High Light

    ARK AC EV Charger

    ,

    CE AC EV Charger

    ,

    400V Public Electric Car Charging Stations

  • Input Voltage Range
    400Vac +/-10%
  • Input Frequency Range
    50Hz Or 60Hz
  • Output Voltage Range
    400Vac +/-10%
  • Housing Material
    Metal Shell
  • Rated Output Power
    7KW Or 22kW
  • Warranty
    24 Months
  • Place of Origin
    Jiangsu,China
  • Brand Name
    ARK or OEM
  • Certification
    CE
  • Model Number
    AKEV22
  • Minimum Order Quantity
    1 set
  • Price
    negotiable
  • Packaging Details
    carton
  • Delivery Time
    25-45days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000 units per month

ARK CE AC EV Charger , 400V Public Electric Car Charging Stations

ARK EV Charger For Car Charging Station 22kw, 32A, 400V For Home Use Or Public With CE

Product Introduction



ARK EV Charger For Car Charging Station 22kw, 32A, 400V For Home Use Or Public With CE provide modern design for commercial and public charges. Embedded RFID, Ethernet, and LTE capabilities make it ideal for mall and corporate charging applications. Compatible with OCPP1.6J protocol, it can be connected and operated with the global EV charging management platform.


Product Parameters




Technical specifications AKEV22
System
Housing material Metal enclosure
Dimension (H x W x D) 300*450*160mm, 1200*450*160mm (pedestal mount)
Installation method Wall mount, pedestal mount (optional)
Cable routing Bottom inlet wiring
Weight N.W.: 11kg
Charging standard IEC 61851-22
Charging outlet Type-2 socket or connector
Outlet number 1
Input
Input voltage 230Vac +/-10% 1-phase 400Vac +/-10%, 3-phase
Input frequency 50Hz/60Hz
Output
Max output power 7kW 22kW
Measuring accuracy Level 0.5
Output voltage range 230Vac +/-10% 1-phase 400Vac +/-10%, 3-phase
Output current range 32A
RCCB Type-B, sensitivity: 30mA
General
Charging type Mode 3
User Interface RFID, LCD Display
AC connector type IEC 62196 Type-2
Communication PWM, Ethernet, LTE, OCPP 1.6J
Application place Indoor/Outdoor
Working temperature -30 °C – +50 °C
Working humidity 5% – 95% non-condensation
Altitude <2000m
Protection grade IP55
Cooling Natural cooling
Safety standard Compliant with CE, EN 61851-1-2001; EN 61851-21-2001; EN 61851-22-2001
Security design Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection

ARK CE AC EV Charger , 400V Public Electric Car Charging Stations 0ARK CE AC EV Charger , 400V Public Electric Car Charging Stations 1

Features

4.3-inch display, unique user interface.
LED status display.
OCPP1.6 integration.
Ethernet and LTE networks
Wall mounting and pedestal mounting are optional
Sockets and cable sockets are optional
OEM and brand service

Application

Shopping mall
Company charging
Parking lot
Supermarket

Company Introduction

At Ark Technology, we hope to establish a one-stop turn-key electric vehicle AC/DC charger solution to make us your first choice for electric vehicle AC/DC charger project. Ark technology team has a great vision, to provide you with stable and reliable DC charging solutions and services. With rich experience and knowledge of electrical and digital power supply, we will provide you with the most professional and practical project implementation guidance.
ARK CE AC EV Charger , 400V Public Electric Car Charging Stations 2


FAQ

1. Why choose us as your preferred EV Charger supplier?

I. The professional technical team and long-term vision of the industry ensure that we are always in the industry leading position. We offer a wide range of product options: charging stations for various charging standards, international standardization design, and smart back-end services.

II. Our products have passed various application scenarios and laboratory standard tests. You can buy our charging station products without any concerns and receive our professional service support.

III. The only Chinese EV Charger vendor who is willing and able to achieve CE and UL certificate currently.

IV. Our team members are the first batch of sales and engineers who is working in developing and selling global standard EV DC Charger which ensure we have plenty of experience implement global EV DC charger projects and have the foresight to lead EV charger products.



2. Is there any experience in implementing overseas charging station projects?

Yes, actually we are the pioneers in implementing overseas charger projects. Till now, we cooperate with UK power company to integrate EV charger with PV system, with US charging operator to install dozens of EV DC charger along the Freeway from LA to San Francisco, with GM automaker to provide DC fast charging service to their Bolt EV fleet and several charging projects.



3. What are the advantages of your products?

I. Telecom level product design and production.

II. Multiple charging standards support including CCS-1/2, CHAdeMO and GB/T, which means we can offer you all standards EV DC charger you want.

III. Quality comes first with wider input & output voltage range, lower voltage output range, better temperature adapted, higher protection grade, a longer technical foresight and most advanced modular design.

IV. Fast customer response, prefessional technical support and more solutions come out.



4. Can you explain the differences of global DC fast charging standards?

Till now, there are 5 kinds of DC fast charging standards: CCS-1, CCS-2. CHAdeMO, GB/T and Tesla.

CCS-1: DC fast charging standard for North America. Typical charging EVs: Chevy Bolt.

CCS-2: DC fast charging standard for Europe. Typical charging EVs: BMW i3, VW e-Golf, Porsche Mission-e.

CHAdeMO: DC fast charging standard for Japan. Typical charging EVs: Nissan Leaf.

GB/T: DC fast charging standard for China. Typical charging EVs: BYD, JAC, BAIC.

Tesla: DC fast charging standard for Tesla only. Typical charging EVs: Tesla Model S, Model X, Model 3.



5. Does the higher the charging station output power mean the faster the charging speed?

No, it doesn't. Due to the limited power of the car battery at this stage, when the output power of the DC charger reaches a certain upper limit, the larger power does not bring a faster charging speed.

However, the significance of high-power DC charger is that it can support dual connectors and simultaneously output high power to charge two electric vehicles at the same time, and in the future, when the electric vehicle battery is improved to support higher power charging, it is not necessary to invest money again to upgrade the charging station.
