Robust 7kW AC EV Charging Station with 10 Protection Functions and -25°C to +50°C Operating Range

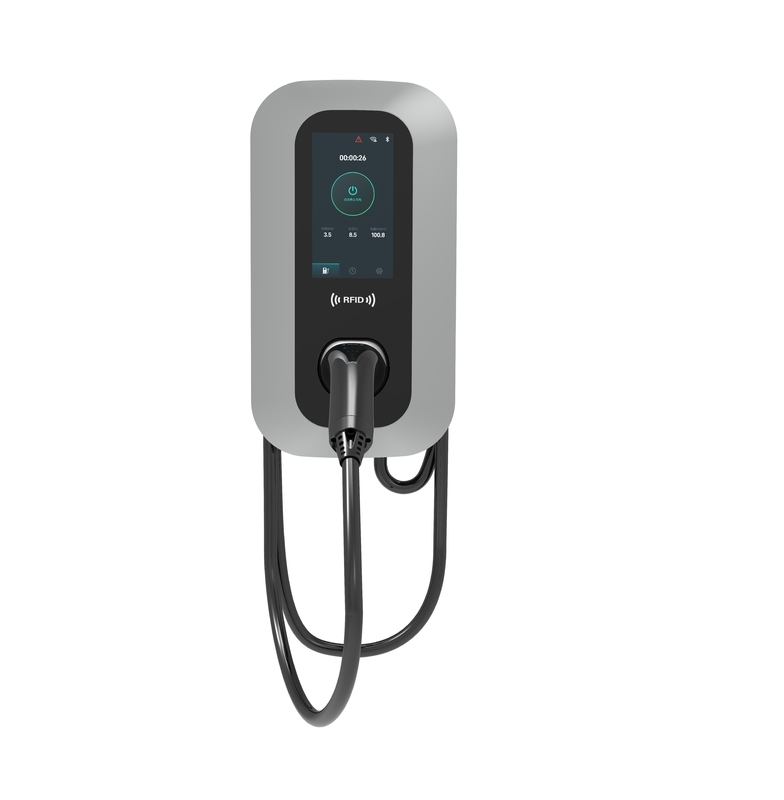

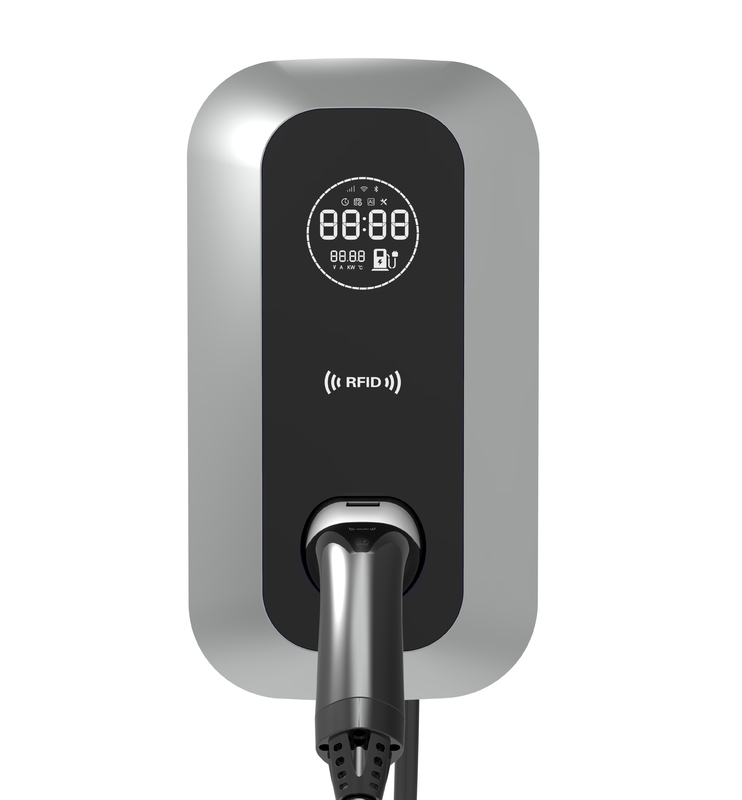

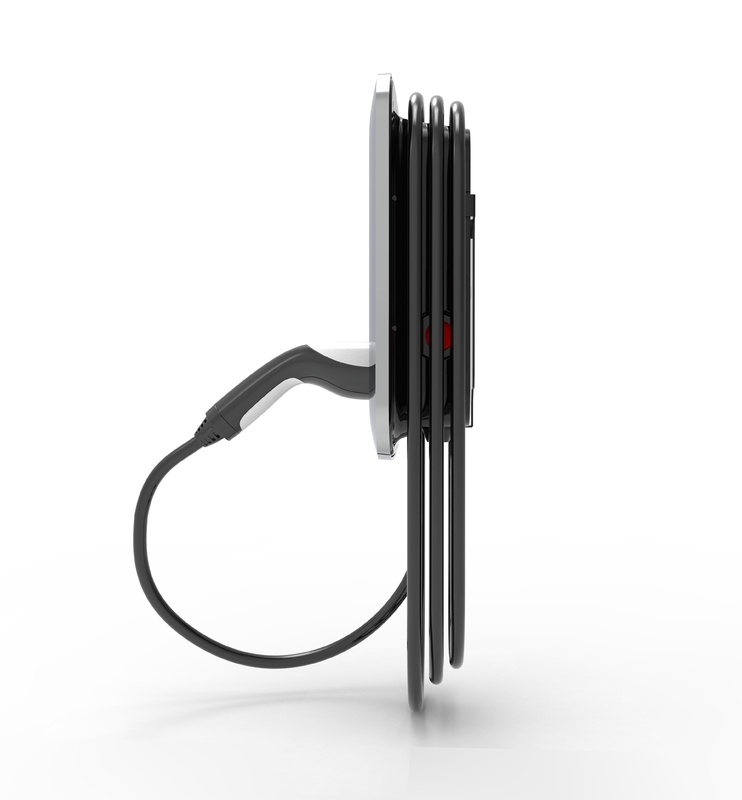

AMP07-C 7kW AC EV Charging Station


The AMP-07 is a cutting-edge AC charging station designed for home and commercial use. With a sleek and modern design, it offers a compact solution for electric vehicle (EV) charging. Connect to your smartphone via a Bluetooth App for remote operation and monitoring of the charging status.

Key Features

  • APP Intelligent Control: Control and monitor the charging process through a mobile application.
  • Bluetooth Remote Control (Optional): For added convenience.
  • Embedded Emergency Stop Mechanical Switch: Ensures safe operation.
  • RS485 and Ethernet Communication Monitoring Modes Reserved: Future-proofing for upgrades and expansions.
  • Ten Protection Functions: Guarantees safety, reliability, and peace of mind during use.
  • Easy Installation, Operation, and Maintenance: Quick setup and low maintenance costs.

Technical Specifications

  • Model Type: AMP07-C
  • Charging Type: Mode 3
  • Dimensions: 222mm (H) x 104mm (W) x 405mm (D)
  • Enclosure Protection Grade: IP65

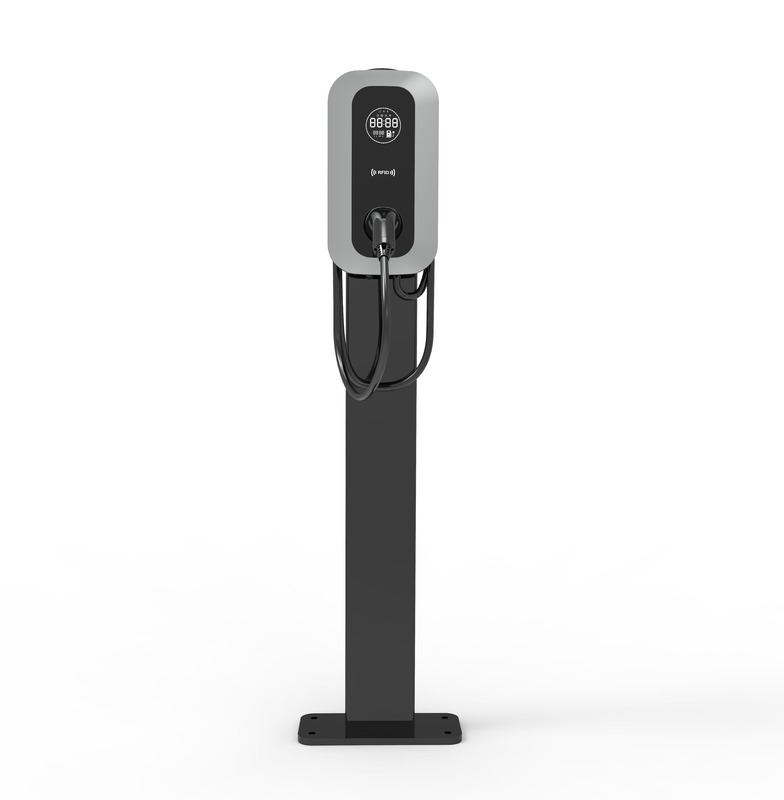

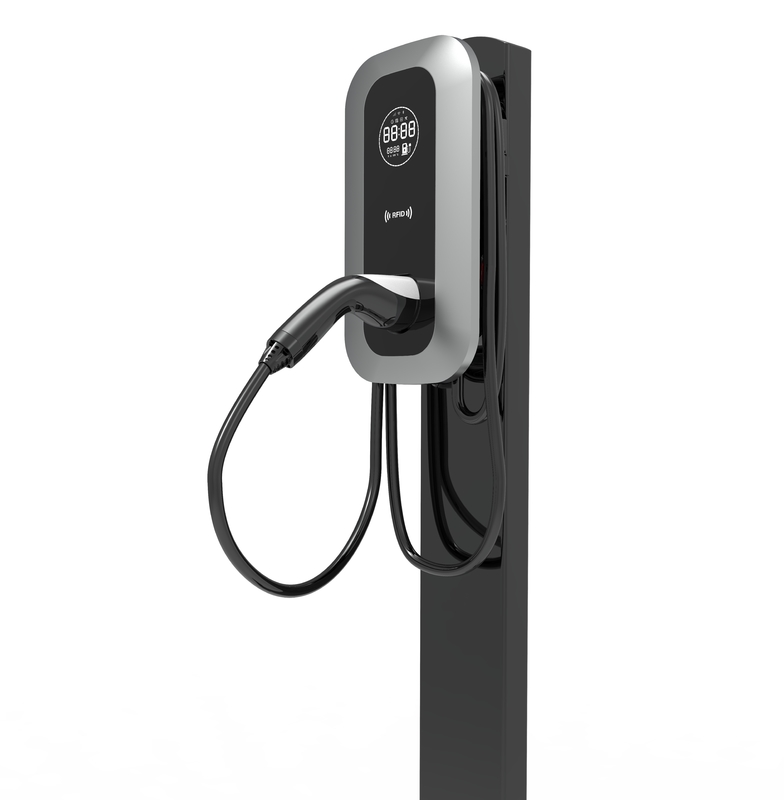

  • Installation Method: Wall mount, pedestal mount (optional)
  • Cable Routing: Bottom inlet and bottom outlet
  • Net Weight: 3.62kg
  • Charging Standard: IEC 61851-22
  • Certificate: CE by DEKRA

Input Parameters

  • Input Voltage: 200Vac - 240Vac, 50/60Hz, L1+N + PE
  • Power Factor: 0.99 at nominal output
  • RCCB: Type-A + 6mA DC

Output Parameters

  • Rated Output Power: 7kW
  • Outlet Type: IEC 62196 Type-2
  • Output Voltage Range: 230Vac
  • Output Current Range: 0 - 32A
  • Charging Outlet: 5m cable

User Interface

  • User Authentication: App interface
  • Display: LCD or 7-inch TFT display
  • Interface Languages: English (other languages available upon request)

Network Interface

  • Wi-Fi: Wireless connectivity support
  • Bluetooth: Bluetooth connectivity support
  • 4G (Optional): Additional connectivity options

Environmental Requirements

  • Working Temperature: -25°C – +50°C
  • Storage Temperature: -25°C – +70°C
  • Altitude: <2000m
  • Cooling: Natural cooling

Safety Features

  • Protection Grades: IP65/IK10
  • Ten Protections: Emergency shutdown, overvoltage, undervoltage, overcurrent, leakage, grounding, temperature, waterproof, power-off, and data protection.

Installation and Usage

  • Easy-to-follow installation guide and operating manual for quick setup.
  • Detailed troubleshooting and maintenance guide to extend product life.
