Active Filters for Harmonic Elimination

Active Filters for Harmonic Elimination

Products - Active Harmonic Filter
  • High Light

    Harmonic Elimination Active Filters

    ,

    IP20 Active Harmonic Filters

    ,

    DSP Active Harmonic Filter

  • Product Name
    Active Harmonic Filter
  • Warranty
    1 Year
  • Rated Frequency
    50Hz±5%
  • Response Time
    <40ms
  • Machine Efficiency
    >97%
  • Harmonic Compensation Rate
    >92%
  • Protection Grade
    IP20
  • Control Method
    Digital Signal Processor (DSP)
  • Efficiency
    Up To 97%
  • Frequency
    50/60Hz
  • Harmonic Compensation
    Up To 50th Order
  • Overall Efficiency
    ≥ 97%
  • Overall Response Time
    < 10ms
  • Pc Software
    Optional
  • Power Grid Frequency
    50Hz/60Hz ( Range: ±10%)
  • Power Grid Structure
    3P3L, 3P4L
  • Protection Level
    IP20
  • Rated Frequency
    50/60Hz
  • Rated I
    30A,50A,75A, 100A Or 150A
  • Accuracy Class
    2
  • Certifications
    CE, UL, RoHS
  • Compensation Method
    Linear Compensation
  • Harmonic Compensation Range
    2nd-50th Order
  • Model
    AFS 2000
  • Module Display Interface
    Touch Screen
  • Rated Input
    400V/690V(-20%-+15%)
  • Relative Humidity
    5% To 95%, Non-condensing
  • Dimensions
    600x400x200mm
  • Noise Level
    < 60dB
  • Rated U
    380V±15%
  • Thdi
    < 5%
  • Unbalance Compensation
    Available
  • Current Rating
    Up To 400A
  • Filter Performance
    THDi< 5%
  • Filtering Range
    2 To 50 Orders
  • Frequency Range
    50/60Hz
  • Rated Voltage
    380V±15%
  • Place of Origin
    CHINA
  • Brand Name
    ARK
  • Certification
    CE
  • Model Number
    AHF
  • Minimum Order Quantity
    1UNIT
  • Delivery Time
    15
  • Payment Terms
    L/C, T/T

Active Filters for Harmonic Elimination

  • Active Filters for Harmonic Elimination
  • Active Filters for Harmonic Elimination
  • Active Filters for Harmonic Elimination
  • Active Filters for Harmonic Elimination
  • Active Filters for Harmonic Elimination
Get Price Contact Now



Product Paramenters

TYPE
Series 220V
Series 400V
Series 500V
Series 690V
Max neutral wire current
23A
15A ,25A ,50A,
75A ,100A ,150A
100A
100A
Nominal voltage
AC220V(-20%~+20%)
AC380V(-20%~+20%)
AC500V(-20%~+20%)
AC690V(-20%~+20%)
Rated frequency
50Hz±5%
Network
Single phase
Three-phase three-wire/three-phase four-wire
Response time
<40ms
Harmonics filtering
2th to 50th Harmonics,The number of compensation can be selected, and the range of single
compensation can be adjusted
Harmonic compensation rate
>92%
Neutral line filtering capability
/
The filtering capacity of three-phase four-wire neutral line is 3 times of that
of phase filtering
machine efficiency
>97%
Switching frequency
32kHz
16kHz
12.8kHz
12 .8kHz
Feature selection
Deal with harmonics/Deal with harmonics and reactive power
Deal with harmonics/Deal with harmonics and reactive power/ Deal with harmonics and three-phase unbalance /Three options
Numbers in parallel
No limitation. A single centralized monitoring module can be equipped with up to 8 power modules
Communication methods
Two-channel RS485 communication interface (support GPRS/WIFI wireless communication)
Altitude without derating
<2000m
Temperature
-20~+50°C
Humidity
<90% RH,The average monthly minimum temperature is 25℃ without condensation on the surface
Pollution level
Below level Ⅲ
Protection function
Overload protection, hardware over-current protection, over-voltage protection, power failure
protection, over-temperature protection, frequency anomaly protection, short circuit protection, etc
Noise
<50dB
<60dB
<65dB
Installation
Rack/wall hanging
Rack
Into the way of line
Back entry (rack type), top entry (wall-mounted)
Top entry
Protection grade
IP20



Products Description

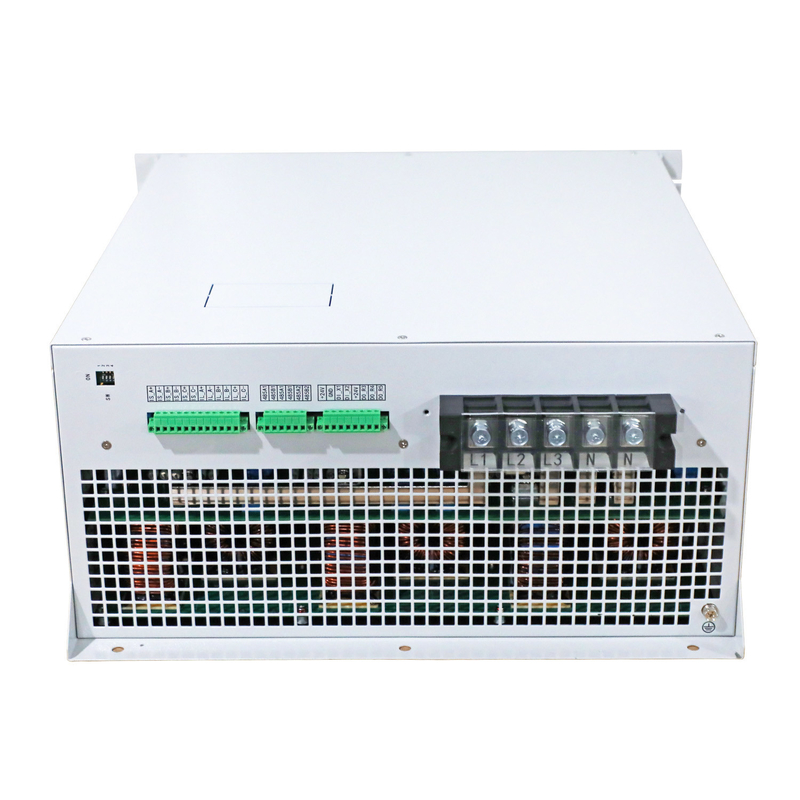

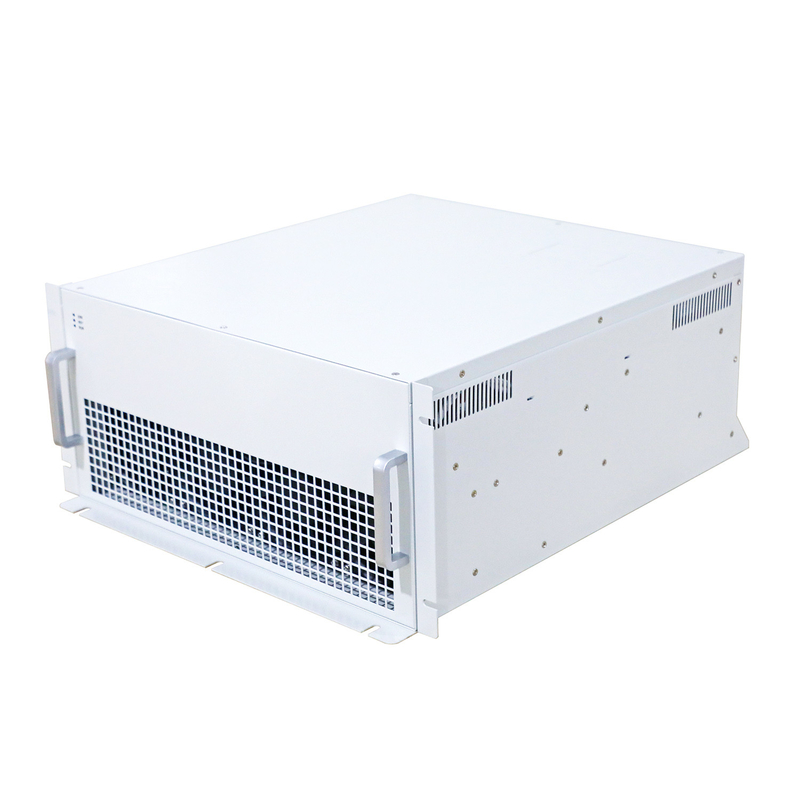

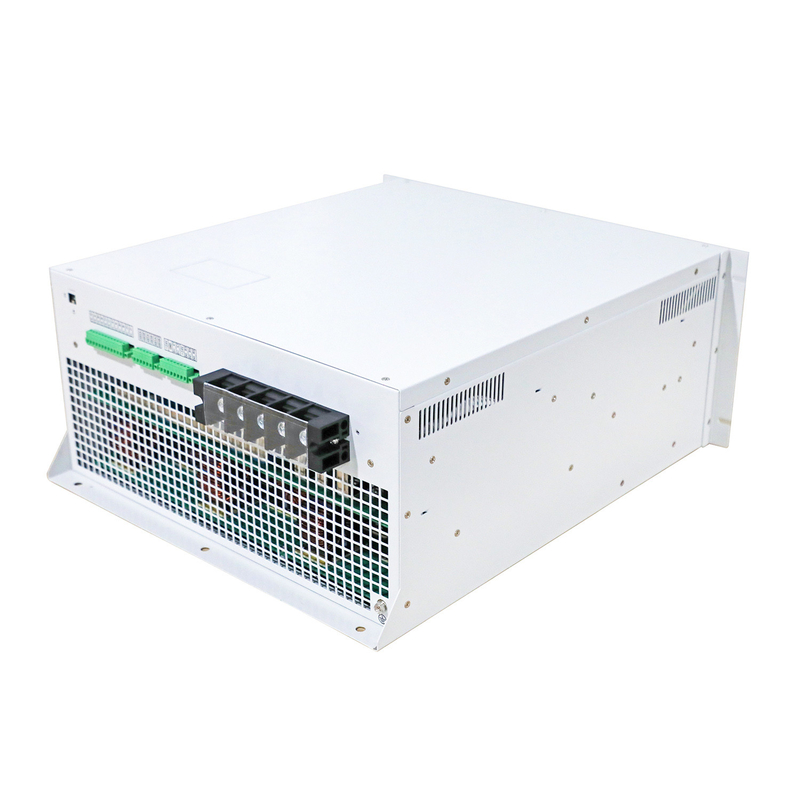

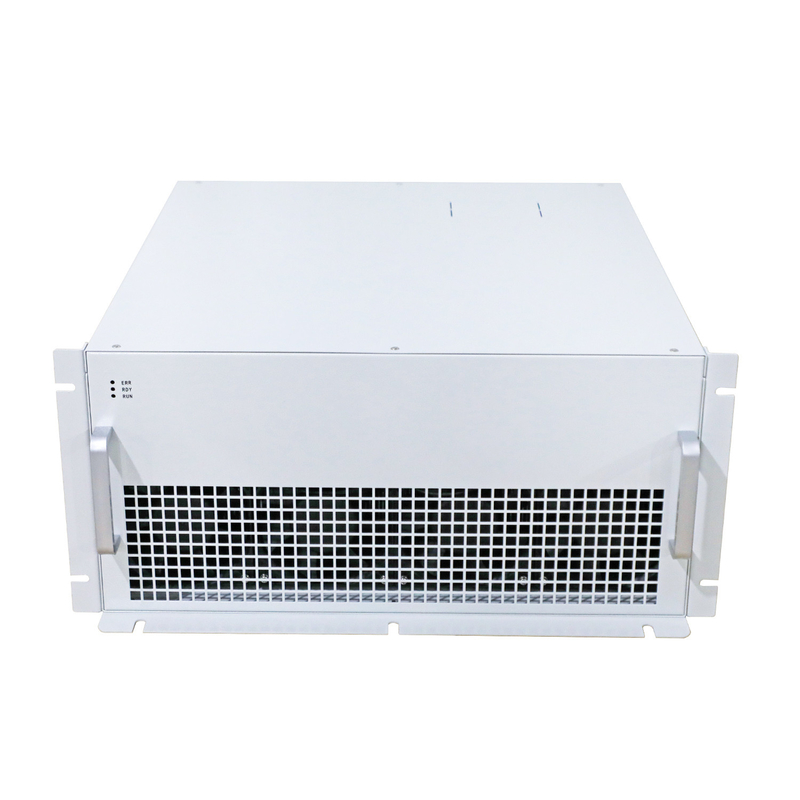

Active Filters for Harmonic Elimination 0

Active Filters for Harmonic Elimination 1

Active Filters for Harmonic Elimination 2

Active Filters for Harmonic Elimination 3

Active Filters for Harmonic Elimination 4

Active Filters for Harmonic Elimination 5
