power quality improving Ahf Apf Active Power Filter Active Harmonic Filter

power quality improving Ahf Apf Active Power Filter Active Harmonic Filter

  • Product Name
    Active Harmonic Filter
  • Warranty
    1 Year
  • Rated Frequency
    50Hz±5%
  • Response Time
    <40ms
  • Machine Efficiency
    >97%
  • Harmonic Compensation Rate
    >92%
  • Protection Grade
    IP20
  • Control Method
    Digital Signal Processor (DSP)
  • Efficiency
    >98%
  • Frequency
    50Hz±2%
  • Harmonic Compensation
    Available
  • Overall Efficiency
    ≥ 97%
  • Overall Response Time
    < 10ms
  • Pc Software
    Optional
  • Power Grid Frequency
    50Hz/60Hz ( Range: ±10%)
  • Power Grid Structure
    3P3L, 3P4L
  • Protection Level
    IP20
  • Rated Frequency
    50/60Hz
  • Rated I
    30A,50A,75A, 100A Or 150A
  • Place of Origin
    CHINA
  • Brand Name
    ARK
  • Certification
    CE
  • Model Number
    AHF
  • Minimum Order Quantity
    1UNIT
  • Delivery Time
    15
  • Payment Terms
    L/C, T/T

power quality improving Ahf Apf Active Power Filter Active Harmonic Filter

Power Quality Improving 400V Active Harmonic Mitigation Filter 50a 75a 100a 150a 200a

Product Paramenters

TYPE
Series 220V
Series 400V
Series 500V
Series 690V
Max neutral wire current
23A
15A ,25A ,50A,
75A ,100A ,150A
100A
100A
Nominal voltage
AC220V(-20%~+20%)
AC380V(-20%~+20%)
AC500V(-20%~+20%)
AC690V(-20%~+20%)
Rated frequency
50Hz±5%
Network
Single phase
Three-phase three-wire/three-phase four-wire
Response time
<40ms
Harmonics filtering
2th to 50th Harmonics,The number of compensation can be selected, and the range of single
compensation can be adjusted
Harmonic compensation rate
>92%
Neutral line filtering capability
/
The filtering capacity of three-phase four-wire neutral line is 3 times of that
of phase filtering
machine efficiency
>97%
Switching frequency
32kHz
16kHz
12.8kHz
12 .8kHz
Feature selection
Deal with harmonics/Deal with harmonics and reactive power
Deal with harmonics/Deal with harmonics and reactive power/ Deal with harmonics and three-phase unbalance /Three options
Numbers in parallel
No limitation. A single centralized monitoring module can be equipped with up to 8 power modules
Communication methods
Two-channel RS485 communication interface (support GPRS/WIFI wireless communication)
Altitude without derating
<2000m
Temperature
-20~+50°C
Humidity
<90% RH,The average monthly minimum temperature is 25℃ without condensation on the surface
Pollution level
Below level Ⅲ
Protection function
Overload protection, hardware over-current protection, over-voltage protection, power failure
protection, over-temperature protection, frequency anomaly protection, short circuit protection, etc
Noise
<50dB
<60dB
<65dB
Installation
Rack/wall hanging
Rack
Into the way of line
Back entry (rack type), top entry (wall-mounted)
Top entry
Protection grade
IP20



Products Description

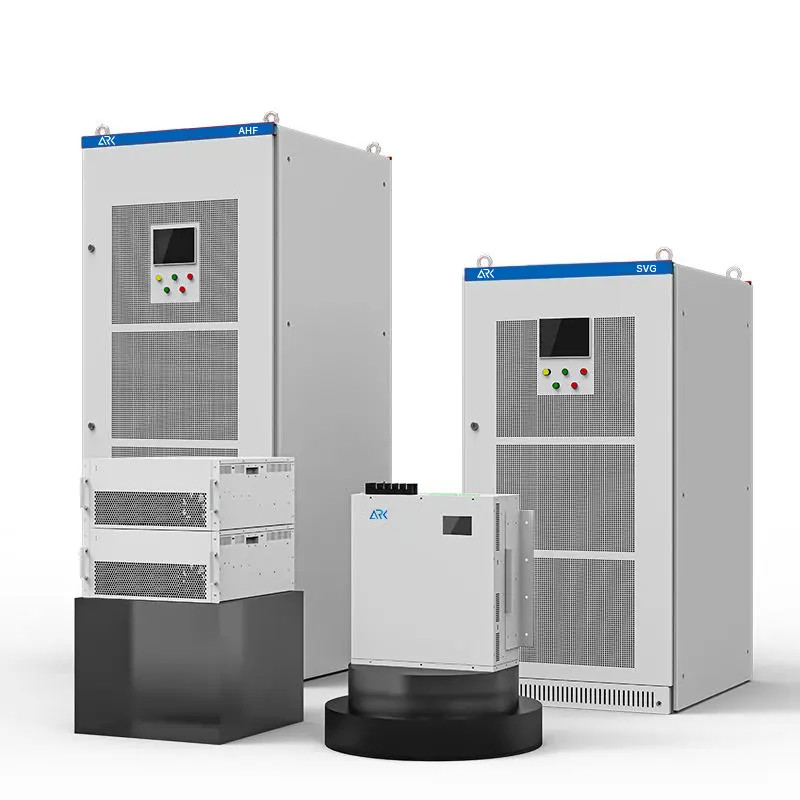

power quality improving Ahf Apf Active Power Filter Active Harmonic Filter 0

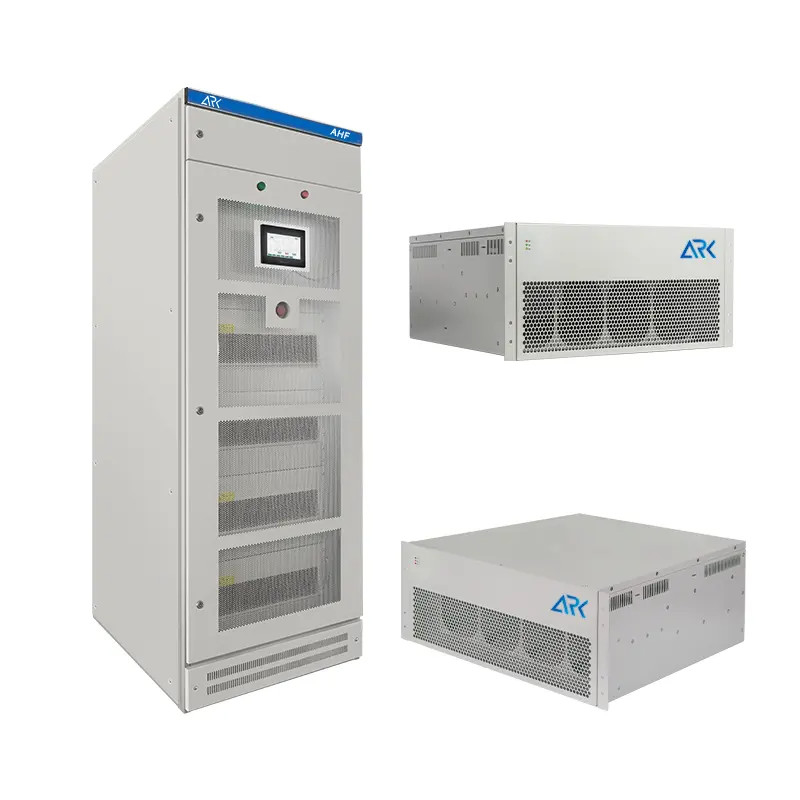

power quality improving Ahf Apf Active Power Filter Active Harmonic Filter 1

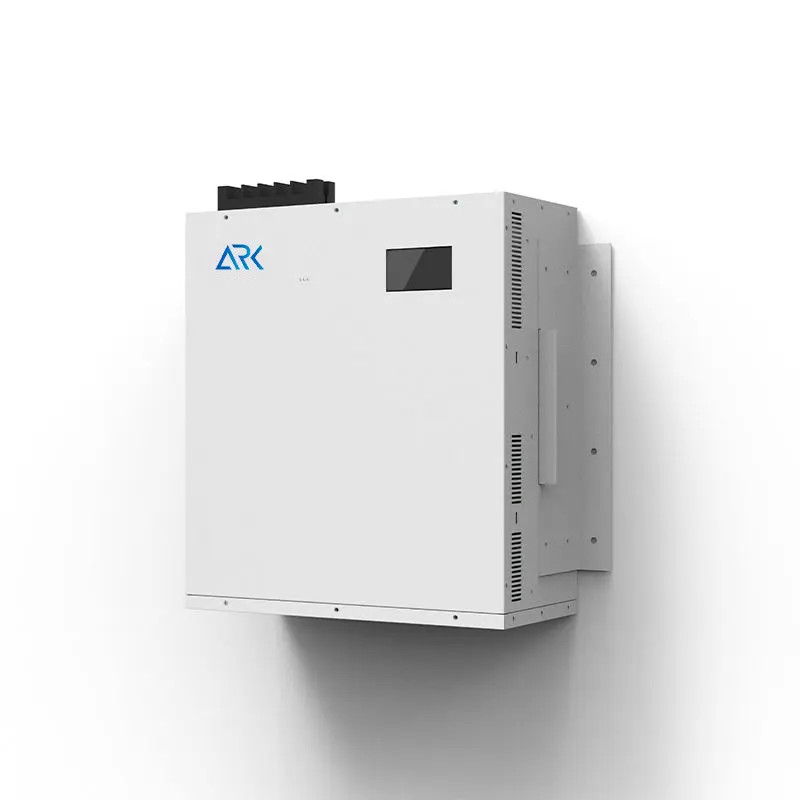

power quality improving Ahf Apf Active Power Filter Active Harmonic Filter 2
