ARK 30KW 40KW 40A DC Fast EV Charger Electric Vehicle Car EV Charging Stations

ARK 30KW 40KW 40A DC Fast EV Charger Electric Vehicle Car EV Charging Stations

  • High Light

    40A DC Fast EV Charger

    ,

    ARK 30KW DC Fast EV Charger

  • Name
    Ev Charging Station
  • Charging Type
    Mode 4
  • Dimension (H X W X D)
    600 X 700 X 363mm, 1500 X 700 X 363mm (pedestal Mount)
  • Enclosure Protection Grade
    IP54, IK10
  • Installation Method
    Wall Mount, Pedestal Mount (optional)
  • Cable Routing
    Bottom Inlet And Outlet Wiring
  • Net Weight
    125kgs, 145kgs (pedestal Mount)
  • Charging Standard
    IEC 61851-23, CHAdeMO
  • Place of Origin
    Jiangsu,China
  • Brand Name
    ARK or OEM
  • Certification
    CE
  • Model Number
    EF040CJ030
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    wooden box
  • Delivery Time
    20-45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    200 units per month

ARK 30KW 40KW 40A DC Fast EV Charger Electric Vehicle Car EV Charging Stations

ARK 30KW 40KW 40A DC Fast EV Charger DC Electric Vehicle Car EV Charging Stations For Electric Vehicl

Product Introduction

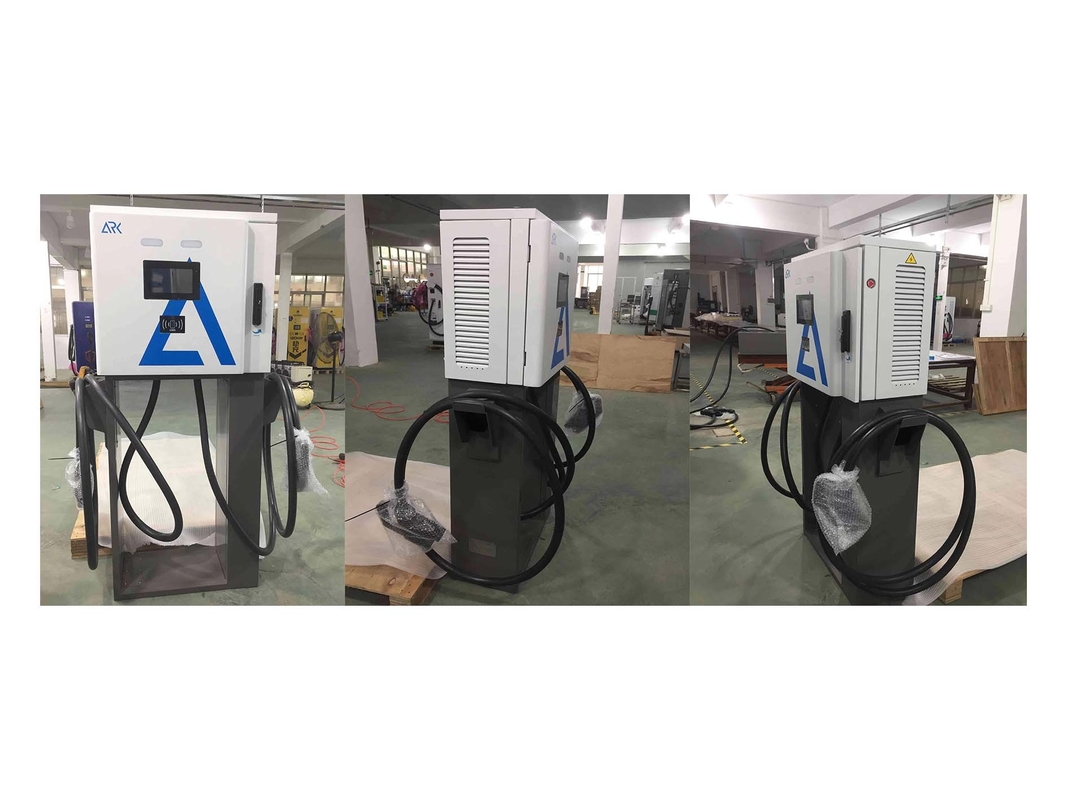

ARK's EF040 DC charger is easy to install, own and operate. Able to charge all electric vehicles on the market, this charger is an economical solution for a range of industries looking for a high power, efficient charge to get the car back on the road quickly.
With modern design, it can be used for commercial and public charges. Embedded RFID, Ethernet and LTE capabilities are best suited for charging applications in malls and companies. It complies with OCPP1.6J protocol and can be operated by docking with the global EV charging management platform.
ARK 30KW 40KW 40A DC Fast EV Charger Electric Vehicle Car EV Charging Stations 0ARK 30KW 40KW 40A DC Fast EV Charger Electric Vehicle Car EV Charging Stations 1ARK 30KW 40KW 40A DC Fast EV Charger Electric Vehicle Car EV Charging Stations 2ARK 30KW 40KW 40A DC Fast EV Charger Electric Vehicle Car EV Charging Stations 3ARK 30KW 40KW 40A DC Fast EV Charger Electric Vehicle Car EV Charging Stations 4ARK 30KW 40KW 40A DC Fast EV Charger Electric Vehicle Car EV Charging Stations 5

ARK 30KW 40KW 40A DC Fast EV Charger Electric Vehicle Car EV Charging Stations 6




Product Parameters

Technical specifications EF040CJ030
System
Housing material Metal enclosure
Dimension (H x W x D) 600 x 700 x 363mm, 1500 x 700 x 363mm (pedestal mount)
Installation method Wall mount, pedestal mount (optional)
Cable routing Bottom inlet, bottom outlet wiring
Weight N.W.: 95kgs, 120kgs (pedestal mount)
Charging standard IEC 61851, CHAdeMO
Charging outlet CHAdeMO JEVS G105, CCS Combo-2
Outlet number 2
Input
Input voltage 400Vac +/-10%, 3-phase
Input frequency 50Hz/60Hz
Power factor 0.99
Output
Rated output power CCS: 30kW, CHAdeMO: 30kW
Measuring accuracy Level 0.5
Output voltage range CCS: 150 – 1000V, CHAdeMO: 150 – 500V, DC constant rated output @ above 300V
Output current range 0 - 100A
Efficiency > 94% at rated output
General
Charging type Mode 4
User Interface RFID, 7” touch screen, Emergency button
Ethernet 10/100 BaseTX (TCP-IP)
Cellular LTE modem, GPRS/3G/4G
Communication
CAN, PLC, OCPP 1.6 JSON
Application place Indoor/Outdoor
Working temperature -30 °C – +55 °C
Working humidity 5% – 95% non-condensation
Altitude < 2000m
Protection grade IP54
Cooling Fan cooling
Compliance EN 61851-1:2010, EN 61851-1:2017, IEC 61851-21-2:2018, EN 61851-23:2014, EN 61851-24:2014

ARK 30KW 40KW 40A DC Fast EV Charger Electric Vehicle Car EV Charging Stations 7ARK 30KW 40KW 40A DC Fast EV Charger Electric Vehicle Car EV Charging Stations 8




Features



The modular power unit is single-person operated, so it can be easily replaced in the field for faster maintenance and improved uptime
Two charging lines, to meet the charging needs of different electric vehicles
Ideal for any environment, it thrives in temperatures ranging from -30 °C to +55°C
Safety engineering, including hazard reduction standard cable management
Access to real-time data
Brand and Logo customization





Application

Retail and mall parking spaces
Fleet charging stations
Highway service areas
Workplaces
Residences, etc.




Company Introduction

Ark Tech is a manufacturer specializing in electric vehicle charging products. In addition to the factory, the company also has design, research and development, customer service and other departments. The main products are AC charging stations and DC charging stations. In order to better adapt to different market preferences and needs, we not only provide standard products, but also customized according to requirements.




FAQ

1. Why choose us as your preferred EV Charger supplier?

I. The professional technical team and long-term vision of the industry ensure that we are always in the industry leading position. We offer a wide range of product options: charging stations for various charging standards, international standardization design, and smart back-end services.

II. Our products have passed various application scenarios and laboratory standard tests. You can buy our charging station products without any concerns and receive our professional service support.

III. The only Chinese EV Charger vendor who is willing and able to achieve CE and UL certificate currently.

IV. Our team members are the first batch of sales and engineers who is working in developing and selling global standard EV DC Charger which ensure we have plenty of experience implement global EV DC charger projects and have the foresight to lead EV charger products.



2. Is there any experience in implementing overseas charging station projects?

Yes, actually we are the first to implement the overseas charging project. Until now, we cooperate with British power company, electric car chargers integrated pv system, and we install many electric vehicle charging operators dc charging machine along the highway from Los Angeles to San Francisco, and general motors manufacturer provide dc fast charging their bolt electric vehicle fleet, and some fees.



3. What are the advantages of your products?

I. Telecom level product design and production.

II. Multiple charging standards support including CCS-1/2, CHAdeMO and GB/T, which means we can offer you all standards EV DC charger you want.

III. Quality comes first with wider input & output voltage range, lower voltage output range, better temperature adapted, higher protection grade, a longer technical foresight and most advanced modular design.

IV. Fast customer response, prefessional technical support and more solutions come out.



4. Can you explain the differences of global DC fast charging standards?

Till now, there are 5 kinds of DC fast charging standards: CCS-1, CCS-2. CHAdeMO, GB/T and Tesla.

CCS-1: DC fast charging standard for North America. Typical charging EVs: Chevy Bolt.

CCS-2: DC fast charging standard for Europe. Typical charging EVs: BMW i3, VW e-Golf, Porsche Mission-e.

CHAdeMO: DC fast charging standard for Japan. Typical charging EVs: Nissan Leaf.

GB/T: DC fast charging standard for China. Typical charging EVs: BYD, JAC, BAIC.

Tesla: DC fast charging standard for Tesla only. Typical charging EVs: Tesla Model S, Model X, Model 3.



5. Does the higher the charging station output power mean the faster the charging speed?

No, it doesn't. Due to the limited power of the car battery at this stage, when the output power of the DC charger reaches a certain upper limit, the larger power does not bring a faster charging speed.

However, the significance of high-power DC charger is that it can support dual connectors and simultaneously output high power to charge two electric vehicles at the same time, and in the future, when the electric vehicle battery is improved to support higher power charging, it is not necessary to invest money again to upgrade the charging station.
