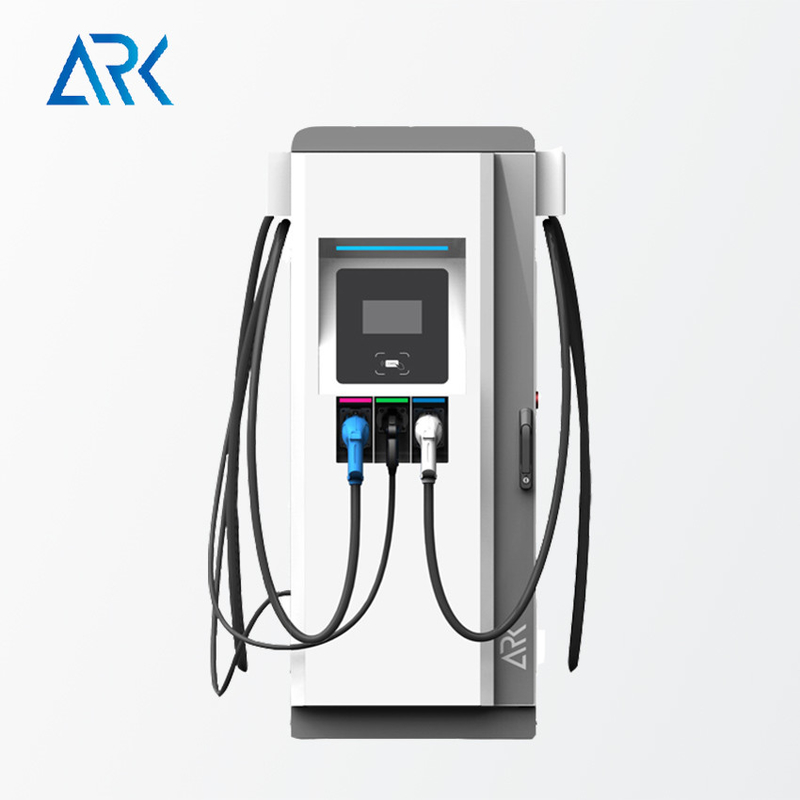

IP54 Type 2 DC Fast EV Charger 400V 60kw

IP54 Type 2 DC Fast EV Charger 400V 60kw

  • High Light

    IP54 Type2 DC Fast EV Charger

    ,

    DC Fast EV Charger 400V

  • Warranty
    24 Months
  • Input Voltage Range
    400V, 3-phase
  • Housing Material
    Metal Shell
  • Output Power
    150kw
  • Efficiency
    >94% At Rated Output
  • Charging Standards
    CCS & CHAdeMO
  • Working Humidity
    5%-95%
  • Material
    Steel
  • Place of Origin
    Jiangsu,China
  • Brand Name
    ARK or OEM
  • Certification
    CE
  • Model Number
    EF160CJ082
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    wooden box
  • Delivery Time
    45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    200 sets per month

IP54 Type 2 DC Fast EV Charger 400V 60kw

EV Car Charger Station 60kw Type 2 Electric Vehicle Charging Stations DC Fast EV Charge



Product Introduction



ARK's EF160 DC charger is easy to install, own and operate. Able to charge all electric vehicles on the market, this charger is an economical solution for a range of industries looking for a high power, efficient charge to get the car back on the road quickly.
It features a high quality and robust housing with anticorrosion protection equivalent to stainless steel to ensure extended equipment life. You can also personalize it with custom graphics, logos, and colors to get the overall look of your brand.

IP54 Type 2 DC Fast EV Charger 400V 60kw 0

IP54 Type 2 DC Fast EV Charger 400V 60kw 1




Product Parameters



System
Housing material Metal enclosure
Dimension (H x W x D) 1900 x 700 x 700mm
Installation method Ground mount
Cable routing Bottom inlet, top outlet wiring
Weight 355kgs
Charging standard CCS combo-1/2, CHAdeMO & AC IEC 61851
Charging outlet CHAdeMO JEVS G105, CCS Combo-2, IEC 62196 Type-2
Outlet number 3
Input
Input voltage 400Vac +/-10%, 3-phase
Input frequency 50Hz/60Hz
Power factor 0.99
Output
Rated output power CCS: 60kW, CHAdeMO: 60kW, AC: 22kW CCS: 120kW, CHAdeMO: 60kW, AC:22kW
Measuring accuracy Level 0.5
Output voltage range 150 – 1000V DC constant output @ above 300V, 400V AC
Output current range 0 - 200A DC, 32A AC 0 - 400A DC, 32A AC
Efficiency > 94% at rated output
General
Charging type Mode 4
User Interface RFID, 7” touch screen, Emergency button
Ethernet 10/100 BaseTX (TCP-IP)
Cellular LTE modem, GPRS/3G/4G
Communication CAN, PLC, PWM, OCPP 1.6 JSON
Application place Indoor/Outdoor
Working temperature -30 °C – +55 °C
Working humidity 5% – 95% non-condensation
Altitude < 2000m
Protection grade IP54
Cooling Fan cooling
Security design Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection



IP54 Type 2 DC Fast EV Charger 400V 60kw 2IP54 Type 2 DC Fast EV Charger 400V 60kw 3




Features



The modular power unit is single-person operated, so it can be easily replaced in the field for faster maintenance and improved uptime
Three cables charge three electric cars simultaneously
Ideal for any environment, it thrives in temperatures ranging from -30 °C to +55°C
Safety engineering, including hazard reduction standard cable management
Access to real-time data
Custom brand





Company Details



Ark Technologies offers innovative, cost effective products for quick charging. Our team of power electronics experts has years of experience in improving and introducing compact, highly available inverter systems with power outputs of up to 150 kW. Our team of professionals enables us to offer customised products to our customers.



IP54 Type 2 DC Fast EV Charger 400V 60kw 4






FAQ

1. Why choose us as your preferred EV Charger supplier?

I. The professional technical team and long-term vision of the industry ensure that we are always in the industry leading position. We offer a wide range of product options: charging stations for various charging standards, international standardization design, and smart back-end services.

II. Our products have passed various application scenarios and laboratory standard tests. You can buy our charging station products without any concerns and receive our professional service support.

III. The only Chinese EV Charger vendor who is willing and able to achieve CE and UL certificate currently.

IV. Our team members are the first batch of sales and engineers who is working in developing and selling global standard EV DC Charger which ensure we have plenty of experience implement global EV DC charger projects and have the foresight to lead EV charger products.



2. Is there any experience in implementing overseas charging station projects?

Yes, actually we are the pioneers in implementing overseas charger projects. Till now, we cooperate with UK power company to integrate EV charger with PV system, with US charging operator to install dozens of EV DC charger along the Freeway from LA to San Francisco, with GM automaker to provide DC fast charging service to their Bolt EV fleet and several charging projects.



3. What are the advantages of your products?

I. Design and production of carrier-grade products.

II. Support CCS-1/2, CHADEMO, GB/T and other charging standards, to provide you with all kinds of standard EV DC chargers you want.

III. Quality first, wider input/output voltage range, lower voltage output range, better temperature adaptation, higher protection level, longer technical predictability and the most advanced modular design.

IV. fast customer response, professional technical support, to provide more solutions.



4. If we purchase your EV DC charger, how to get your after-sales support?

Under normal circumstances, we will provide comprehensive after-sales technical training, including providing written training materials, training videos or inviting customers' technical personnel to face-to-face training to help customers master parts replacement and basic maintenance work.

When encountering an urgent situation, we will also send professional technicians to provide on-site support.



5. Does the higher the charging station output power mean the faster the charging speed?

No, it doesn't. Due to the limited power of the car battery at this stage, when the output power of the DC charger reaches a certain upper limit, the larger power does not bring a faster charging speed.

However, the significance of high-power DC charger is that it can support dual connectors and simultaneously output high power to charge two electric vehicles at the same time, and in the future, when the electric vehicle battery is improved to support higher power charging, it is not necessary to invest money again to upgrade the charging station.
