40KW DC Fast EV Charger

40KW DC Fast EV Charger

  • High Light

    40KW DC Fast EV Charger

    ,

    IEC 61851 DC Fast EV Charger

    ,

    400V dc car charging stations

  • Rated Output Power
    CCS: 40kW, CHAdeMO: 40kW
  • Charging Standard
    IEC 61851, CHAdeMO
  • Charging Outlet
    CHAdeMO JEVS G105, CCS Combo 1/2
  • Input Voltage
    400Vac +/-10%, 3-phase
  • Charging Type
    Mode 3
  • Cellular
    LTE Modem, GPRS/3G/4G
  • Efficiency
    > 94% At Rated Output
  • Place of Origin
    Jiangsu,China
  • Brand Name
    ARK or OEM
  • Certification
    CE
  • Model Number
    EF040CJ030
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    wooden box
  • Delivery Time
    20-45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    200 units per month

40KW DC Fast EV Charger

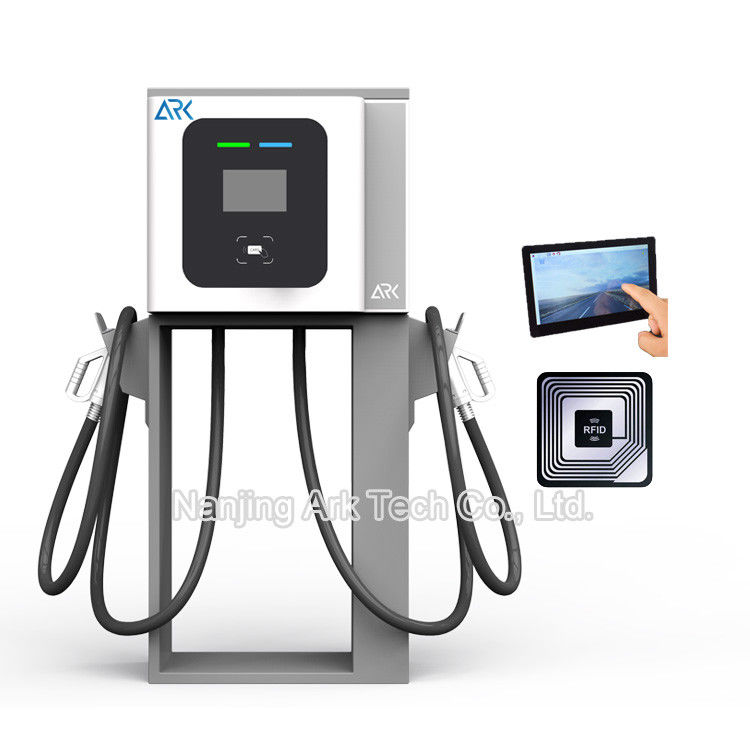

Ark Tech OCPP 1.6 Charging System Technology 40kW CCS 1 / 2 and CHAdeMO Double Standards Fast EV DC Charger



Product Introduction


The eFelx DC fast charging station is a dual DC outlets (CHAdeMO and CCS) fast charger that can be configured to meet different charging needs of both European and North American customers. It complies with the OCPP1.6J protocol, allowing it to be connected and operated with the global EV charging management platform.





Product Parameters

Technical specifications EF040CJ030
System
Housing material Metal enclosure
Dimension (H x W x D) 600 x 700 x 363mm, 1500 x 700 x 363mm (pedestal mount)
Installation method Wall mount, pedestal mount (optional)
Cable routing Bottom inlet, bottom outlet wiring
Weight N.W.: 95kgs, 120kgs (pedestal mount)
Charging standard IEC 61851, CHAdeMO
Charging outlet CHAdeMO JEVS G105, CCS Combo-2
Outlet number 2
Input
Input voltage 400Vac +/-10%, 3-phase
Input frequency 50Hz/60Hz
Power factor 0.99
Output
Rated output power CCS: 30kW, CHAdeMO: 30kW
Measuring accuracy Level 0.5
Output voltage range CCS: 150 – 1000V, CHAdeMO: 150 – 500V, DC constant rated output @ above 300V
Output current range 0 - 100A
Efficiency > 94% at rated output
General
Charging type Mode 4
User Interface RFID, 7” touch screen, Emergency button
Ethernet 10/100 BaseTX (TCP-IP)
Cellular LTE modem, GPRS/3G/4G
Communication
CAN, PLC, OCPP 1.6 JSON
Application place Indoor/Outdoor
Working temperature -30 °C – +55 °C
Working humidity 5% – 95% non-condensation
Altitude < 2000m
Protection grade IP54
Cooling Fan cooling
Compliance EN 61851-1:2010, EN 61851-1:2017, IEC 61851-21-2:2018, EN 61851-23:2014, EN 61851-24:2014

40KW DC Fast EV Charger 040KW DC Fast EV Charger 1




Features



Charging management function, HMI can display charging mode, charging current, charging voltage, charging time and account information.

The charger can dynamically adjust the charging mode according to BMS charging voltage and current character.

Intelligent power distribution function, in case of fault of individual module, the module can be separated without of affecting the normal operation of the charger.

The charger has been equipped with robust protection functions of overload, surge, overvoltage, undervoltage, short circuit, earthing, overheat, lightening, emergency stop, etc to avoid damages by accident caused by abnormal weather or grid.





Application

Retail and mall parking spaces
Fleet charging stations
Highway service areas
Workplaces
Residences, etc.




Company Introduction

Cooperating with numerous clients globally, Ark Tech is well-experienced on product customization and understands customers' preferences by providing with various products and solutions to each customer across the world.
To solve EV charging issues for our customers empowers us to work harder with timely, effective and caring service.



FAQ



Q: Do your charger support the OCPP function?

Yes, our charger support the OCPP 1.6, it can be connected to Internet via Ethernet, 3G/4G.



Q: How about the quality and warranty about the charger?

All of our chargers are CE certificated. We supply 12 months warranty for the charger, what'more, we supply whole life techinical support.



NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
