32A Wallbox Electric Car Charger

32A Wallbox Electric Car Charger

  • High Light

    32A Wallbox Electric Car Charger

    ,

    7kw Wallbox Electric Car Charger

    ,

    400V wallbox dc fast charger

  • Input Voltage
    3-phase
  • Output Voltage
    400V +/-10%
  • Housing Material
    Metal Shell
  • Rated Output Power
    22kW
  • Warranty
    2 Years
  • Cooling
    Natural Cooling
  • Place of Origin
    Jiangsu,China
  • Brand Name
    ARK or OEM
  • Certification
    CE
  • Model Number
    AKEV22
  • Minimum Order Quantity
    1 set
  • Price
    negotiable
  • Packaging Details
    carton
  • Delivery Time
    25-45days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000 units per month

32A Wallbox Electric Car Charger

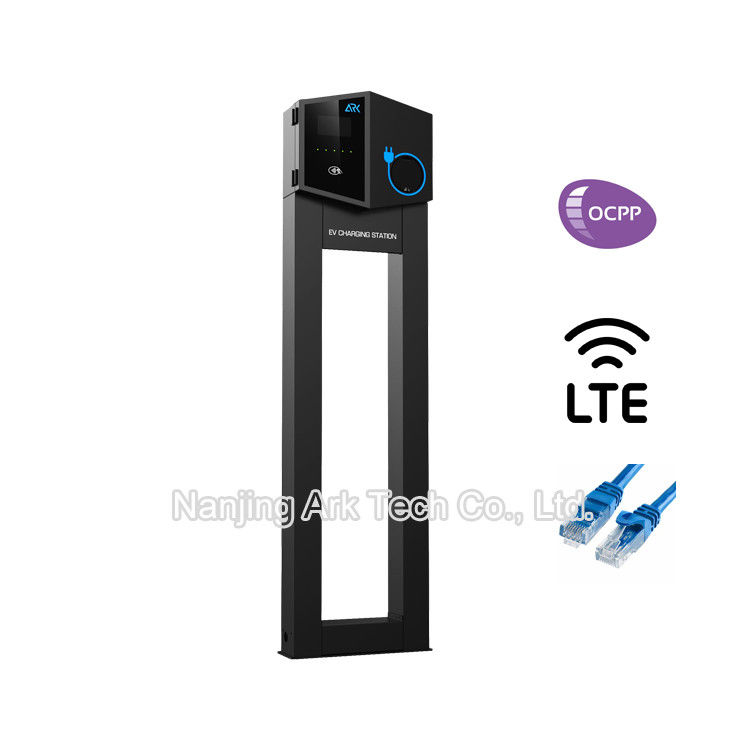

Evse Commercial Wallbox Level 2 Fast Charging 7kw 32a Type 2 Ev Charger With App

Product Introduction



AKEV22 charger adopts modern design, which conforms to the aesthetics of European and American customers.With RFID, Ethernet and LTE functions, it is suitable for charging applications in shopping malls and companies. It supports the OCPP1.6J protocol, which enables it to be connected and run with the global EV charging management platform.



Product Parameters




Technical specifications AKEV22
System
Housing material Metal enclosure
Dimension (H x W x D) 300*450*160mm, 1200*450*160mm (pedestal mount)
Installation method Wall mount, pedestal mount (optional)
Cable routing Bottom inlet wiring
Weight N.W.: 11kg
Charging standard IEC 61851-22
Charging outlet Type-2 socket or connector
Outlet number 1
Input
Input voltage 230Vac +/-10% 1-phase 400Vac +/-10%, 3-phase
Input frequency 50Hz/60Hz
Output
Max output power 7kW 22kW
Measuring accuracy Level 0.5
Output voltage range 230Vac +/-10% 1-phase 400Vac +/-10%, 3-phase
Output current range 32A
RCCB Type-B, sensitivity: 30mA
General
Charging type Mode 3
User Interface RFID, LCD Display
AC connector type IEC 62196 Type-2
Communication PWM, Ethernet, LTE, OCPP 1.6J
Application place Indoor/Outdoor
Working temperature -30 °C – +50 °C
Working humidity 5% – 95% non-condensation
Altitude <2000m
Protection grade IP55
Cooling Natural cooling
Safety standard Compliant with CE, EN 61851-1-2001; EN 61851-21-2001; EN 61851-22-2001
Security design Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection



32A Wallbox Electric Car Charger 032A Wallbox Electric Car Charger 1



Features

Compact design
7KW, 11KW and 22KW AC quick charge
Easy to install or refit in different locations
Sunlight readable 4.3 "full color touch screen display
Open Charging Point Protocol (OCPP)

Application

Shopping mall
Company charging
Parking lot
Supermarket

Company Introduction


Nanjing Ark Tech specializing in customized EV charging station related products development. We focus on providing a full range of services and solutions.For EV charging station products, we have a full range series of AC and DC charging stations, which support Chinese national standard, European IEC standard, American SAE standard and Japanese CHAdeMo standard. The company's core competitiveness is the ability to gain customer loyalty and customer satisfaction. We insist on creating value for our customers as the starting point and the first gist of our business activities. Achieve our corporate value while helping our customers succeed and achieve customer value.



32A Wallbox Electric Car Charger 2


FAQ

1. Why choose us as your preferred EV Charger supplier?

I. The professional technical team and long-term vision of the industry ensure that we are always in the industry leading position. We offer a wide range of product options: charging stations for various charging standards, international standardization design, and smart back-end services.

II. Our products have passed various application scenarios and laboratory standard tests. You can buy our charging station products without any concerns and receive our professional service support.

III. The only Chinese EV Charger vendor who is willing and able to achieve CE and UL certificate currently.

IV. Our team members are the first batch of sales and engineers who is working in developing and selling global standard EV DC Charger which ensure we have plenty of experience implement global EV DC charger projects and have the foresight to lead EV charger products.



2. Is there any experience in implementing overseas charging station projects?

Yes, actually we are the pioneers in implementing overseas charger projects. Till now, we cooperate with UK power company to integrate EV charger with PV system, with US charging operator to install dozens of EV DC charger along the Freeway from LA to San Francisco, with GM automaker to provide DC fast charging service to their Bolt EV fleet and several charging projects.



3. What are the advantages of your products?

I. Telecom level product design and production.

II. Multiple charging standards support including CCS-1/2, CHAdeMO and GB/T, which means we can offer you all standards EV DC charger you want.

III. Quality comes first with wider input & output voltage range, lower voltage output range, better temperature adapted, higher protection grade, a longer technical foresight and most advanced modular design.

IV. Fast customer response, prefessional technical support and more solutions come out.



4. Does the higher the charging station output power mean the faster the charging speed?

No, it doesn't. Due to the limited power of the car battery at this stage, when the output power of the DC charger reaches a certain upper limit, the larger power does not bring a faster charging speed.

However, the significance of high-power DC charger is that it can support dual connectors and simultaneously output high power to charge two electric vehicles at the same time, and in the future, when the electric vehicle battery is improved to support higher power charging, it is not necessary to invest money again to upgrade the charging station.



5. If we purchase your EV DC charger, how to get your after-sales support?

Under normal circumstances, we will provide comprehensive after-sales technical training, including providing written training materials, training videos or inviting customers' technical personnel to face-to-face training to help customers master parts replacement and basic maintenance work. When encountering an urgent situation, we will also send professional technicians to provide on-site support.
