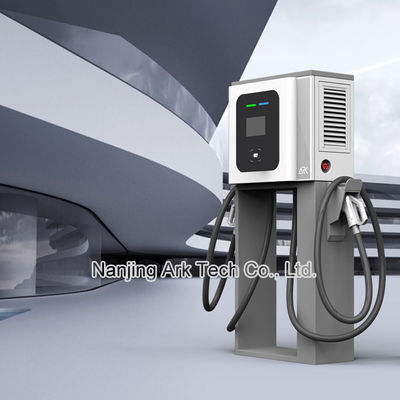

CCS CHAdeMO IEC 61851 150-750V 30KW DC Fast EV Charger

CCS CHAdeMO IEC 61851 150-750V 30KW DC Fast EV Charger

  • High Light

    30KW DC Fast EV Charger

    ,

    750V DC Fast EV Charger

    ,

    150V dc charger for electric car

  • Rated Output Power
    CCS: 30kW, CHAdeMO: 30kW
  • Charging Standard
    IEC 61851, CHAdeMO
  • Charging Outlet
    CHAdeMO JEVS G105, CCS Combo-2
  • Input Voltage
    400Vac +/-10%, 3-phase
  • Charging Type
    Mode 3
  • Cellular
    LTE Modem, GPRS/3G/4G
  • Efficiency
    > 94% At Rated Output
  • Place of Origin
    Jiangsu,China
  • Brand Name
    ARK or OEM
  • Certification
    CE
  • Model Number
    EF040CJ030
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    wooden box
  • Delivery Time
    20-45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    200 units per month

CCS CHAdeMO IEC 61851 150-750V 30KW DC Fast EV Charger

Ark CCS CHAdeMO Integrated DC Fast EV Charger with 30KW DC Output 150-750V Voltage

Product Introduction


eFlex 40kW DC charger is the top choice for charging electric vehicles today. It is designed for quick charging in both commercial and private locations, such as retail and mall parking spaces, fleet charging stations, highway service areas, workplaces, residences, etc.





Product Parameters

Technical specifications EF040CJ030
System
Housing material Metal enclosure
Dimension (H x W x D) 600 x 700 x 363mm, 1500 x 700 x 363mm (pedestal mount)
Installation method Wall mount, pedestal mount (optional)
Cable routing Bottom inlet, bottom outlet wiring
Weight N.W.: 95kgs, 120kgs (pedestal mount)
Charging standard IEC 61851, CHAdeMO
Charging outlet CHAdeMO JEVS G105, CCS Combo-2
Outlet number 2
Input
Input voltage 400Vac +/-10%, 3-phase
Input frequency 50Hz/60Hz
Power factor 0.99
Output
Rated output power CCS: 30kW, CHAdeMO: 30kW
Measuring accuracy Level 0.5
Output voltage range CCS: 150 – 1000V, CHAdeMO: 150 – 500V, DC constant rated output @ above 300V
Output current range 0 - 100A
Efficiency > 94% at rated output
General
Charging type Mode 4
User Interface RFID, 7” touch screen, Emergency button
Ethernet 10/100 BaseTX (TCP-IP)
Cellular LTE modem, GPRS/3G/4G
Communication
CAN, PLC, OCPP 1.6 JSON
Application place Indoor/Outdoor
Working temperature -30 °C – +55 °C
Working humidity 5% – 95% non-condensation
Altitude < 2000m
Protection grade IP54
Cooling Fan cooling
Compliance EN 61851-1:2010, EN 61851-1:2017, IEC 61851-21-2:2018, EN 61851-23:2014, EN 61851-24:2014

CCS CHAdeMO IEC 61851 150-750V 30KW DC Fast EV Charger 0CCS CHAdeMO IEC 61851 150-750V 30KW DC Fast EV Charger 1




Features



● The 7-inch display and unique UI offer good user display requirements for charging.

● The lit LED beacons allow users to quickly identify the current charging status.

● Mobile app integration provides users remote operation and real-time reminders.

● Its metal casing and semi-gross coating ensure the long-term outdoor use.

● OCPP 1.6 compliance enables connection to the global EV charging platform.

● Wall-mounted and pedestal-mounted optional installation methods.

● CCS, CHAdeMO dual-connector output to charge all kinds EVs.

● Remote upgrade and local upgrade the charger software locally or remotely.





Application

Retail and mall parking spaces
Fleet charging stations
Highway service areas
Workplaces
Residences, etc.




Company Introduction

The Ark Tech team has a great vision to provide you with stable and reliable DC charging solutions and services. With extensive experience and knowledge of electrical and digital power supply, we provide you with the most professional and practical project implementation guidance.Our products have passed various application scenarios and laboratory standard tests. You can buy our charging station products without any concerns and receive our professional service support.





FAQ

1. Why choose us as your preferred EV Charger supplier?

I. The professional technical team and long-term vision of the industry ensure that we are always in the industry leading position. We offer a wide range of product options: charging stations for various charging standards, international standardization design, and smart back-end services.

II. Our products have passed various application scenarios and laboratory standard tests. You can buy our charging station products without any concerns and receive our professional service support.

III. The only Chinese EV Charger vendor who is willing and able to achieve CE and UL certificate currently.

IV. Our team members are the first batch of sales and engineers who is working in developing and selling global standard EV DC Charger which ensure we have plenty of experience implement global EV DC charger projects and have the foresight to lead EV charger products.



2. What are the advantages of your products?

I. Telecom level product design and production.

II. Multiple charging standards support including CCS-1/2, CHAdeMO and GB/T, which means we can offer you all standards EV DC charger you want.

III. Quality comes first with wider input & output voltage range, lower voltage output range, better temperature adapted, higher protection grade, a longer technical foresight and most advanced modular design.

IV. Fast customer response, prefessional technical support and more solutions come out.



3. Can you explain the differences of global DC fast charging standards?

Till now, there are 5 kinds of DC fast charging standards: CCS-1, CCS-2. CHAdeMO, GB/T and Tesla.

CCS-1: DC fast charging standard for North America. Typical charging EVs: Chevy Bolt.

CCS-2: DC fast charging standard for Europe. Typical charging EVs: BMW i3, VW e-Golf, Porsche Mission-e.

CHAdeMO: DC fast charging standard for Japan. Typical charging EVs: Nissan Leaf.

GB/T: DC fast charging standard for China. Typical charging EVs: BYD, JAC, BAIC.

Tesla: DC fast charging standard for Tesla only. Typical charging EVs: Tesla Model S, Model X, Model 3.



4. If we purchase your EV DC charger, how to get your after-sales support?

Under normal circumstances, we will provide comprehensive after-sales technical training, including providing written training materials, training videos or inviting customers' technical personnel to face-to-face training to help customers master parts replacement and basic maintenance work. When encountering an urgent situation, we will also send professional technicians to provide on-site support.
