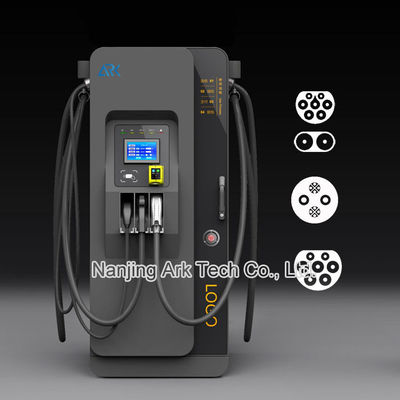

Ground Mount 120KW 400A Electric Car Dc Fast Charger

Ground Mount 120KW 400A Electric Car Dc Fast Charger

  • High Light

    IP54 ark 400A electric car dc fast charger


    IP54 ark 120KW electric car dc fast charger


    IP54 ark Ground Mount dc rapid charger

  • Warranty
    24 Months
  • Input Voltage Range
    400V, 3-phase
  • Housing Material
    Metal Shell
  • Output Power
  • Efficiency
    >94% At Rated Output
  • Charging Standard
    CCS, CHAdeMO & AC
  • Place of Origin
  • Brand Name
    ARK or OEM
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 unit
  • Price
  • Packaging Details
    wooden box
  • Delivery Time
    45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    200 sets per month

Ground Mount 120KW 400A Electric Car Dc Fast Charger

ARK 120KW AC And DC Fast EV Charging Station With 150-750V DC Constant Output With RFID And OCPP


Product Introduction


ARK's EF160's groundbreaking modular and extensible architecture ensures that you are always at the forefront of DC rapid charging technology. The power module can be easily replaced in the field, ensuring high uptime and quick maintenance.



Product Parameters


Housing material Metal enclosure
Dimension (H x W x D) 1900 x 700 x 700mm
Installation method Ground mount
Cable routing Bottom inlet, top outlet wiring
Weight 355kgs
Charging standard CCS combo-1/2, CHAdeMO & AC IEC 61851
Charging outlet CHAdeMO JEVS G105, CCS Combo-2, IEC 62196 Type-2
Outlet number 3
Input voltage 400Vac +/-10%, 3-phase
Input frequency 50Hz/60Hz
Power factor 0.99
Rated output power CCS: 60kW, CHAdeMO: 60kW, AC: 22kW CCS: 120kW, CHAdeMO: 60kW, AC:22kW
Measuring accuracy Level 0.5
Output voltage range 150 – 750V DC constant output @ above 300V, 400V AC
Output current range 0 - 200A DC, 32A AC 0 - 400A DC, 32A AC
Efficiency > 94% at rated output
Charging type Mode 4
User Interface RFID, 7” touch screen, Emergency button
Ethernet 10/100 BaseTX (TCP-IP)
Cellular LTE modem, GPRS/3G/4G
Communication CAN, PLC, PWM, OCPP 1.6 JSON
Application place Indoor/Outdoor
Working temperature -20 °C – +70 °C
Working humidity 5% – 95% non-condensation
Altitude < 2000m
Protection grade IP54
Cooling Fan cooling
Security design Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection


Ground Mount 120KW 400A Electric Car Dc Fast Charger 0Ground Mount 120KW 400A Electric Car Dc Fast Charger 1




It charges between 0% and 80% in 30 minutes
Compatible with CHADEMO, CCS and AC Type-2
DC and AC are charged simultaneously

High reliability
High efficiency > 94%
High power factor 0.99



Company Details


As a supplier of DC /AC electric car chargers, we have developed a very flexible supply chain with in-house production capabilities. We leverage these assets to design quality, highly available solutions and produce them with significant cost efficiency. As a player in the automotive industry, our technical support and end-to-end quality management meet the industry's stringent standards.


Ground Mount 120KW 400A Electric Car Dc Fast Charger 2




1. Why choose us as your preferred EV Charger supplier?

I. Professional technical team and long-term industry vision ensure that we are always in the leading position in the industry. We offer a wide selection of products: charging stations of various charging standards, internationally standardized designs, intelligent back-end services.

II. Our products have passed various application scenarios and laboratory standard tests. You can rest assured to buy our charging station products, and get our professional service support.

III. The only EV charger supplier in China that is willing and able to obtain CE and UL certification.

IV. Our team members are the first group of sales and engineers who develop and sell global standard electric vehicle DC chargers. They have rich experience in the implementation of global electric vehicle DC chargers and have the vision to lead electric vehicle charger products.


2. Is there any experience in implementing overseas charging station projects?

Yes, actually we are the pioneers in implementing overseas charger projects. Till now, we cooperate with UK power company to integrate EV charger with PV system, with US charging operator to install dozens of EV DC charger along the Freeway from LA to San Francisco, with GM automaker to provide DC fast charging service to their Bolt EV fleet and several charging projects.


3. What are the advantages of your products?

I. Telecom level product design and production.

II. Multiple charging standards support including CCS-1/2, CHAdeMO and GB/T, which means we can offer you all standards EV DC charger you want.

III. Quality comes first with wider input & output voltage range, lower voltage output range, better temperature adapted, higher protection grade, a longer technical foresight and most advanced modular design.

IV. Fast customer response, prefessional technical support and more solutions come out.


4. If we purchase your EV DC charger, how to get your after-sales support?

Under normal circumstances, we will provide comprehensive after-sales technical training, including providing written training materials, training videos or inviting customers' technical personnel to face-to-face training to help customers master parts replacement and basic maintenance work.

When encountering an urgent situation, we will also send professional technicians to provide on-site support.


5. Does the higher the charging station output power mean the faster the charging speed?

No, it doesn't. Due to the limited power of the car battery at this stage, when the output power of the DC charger reaches a certain upper limit, the larger power does not bring a faster charging speed.

However, the significance of high-power DC charger is that it can support dual connectors and simultaneously output high power to charge two electric vehicles at the same time, and in the future, when the electric vehicle battery is improved to support higher power charging, it is not necessary to invest money again to upgrade the charging station.
