Mobile 30KW IP54 Electric Vehicle DC Fast Charger Fan Cooling

Mobile 30KW IP54 Electric Vehicle DC Fast Charger Fan Cooling

  • High Light

    IP54 electric vehicle dc fast charger

    ,

    IP54 ARK Mobile electric vehicle dc fast charger

    ,

    IP54 30KW mobile dc fast charger

  • Rated Output Power
    CCS And CHAdeMO
  • Charging Standard
    CHAdeMO
  • Charging Outlet
    CHAdeMO, CCS Combo-2
  • Input Voltage
    400Vac +/-10%,
  • Power Factor
    0.99
  • Cellular
    GPRS/3G/4G
  • Efficiency
    > 94%
  • Place of Origin
    Jiangsu,China
  • Brand Name
    ARK or OEM
  • Certification
    CE
  • Model Number
    EF040CJ030
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    wooden box
  • Delivery Time
    20-45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    200 units per month

Mobile 30KW IP54 Electric Vehicle DC Fast Charger Fan Cooling

ARK CCS And ChademoTwo Plugs 30kw Mobile DC Ev Charging Station With LTE Modem

Product Introduction


ARK CCS And ChademoTwo Plugs 30kw Mobile DC Ev Charging Station With LTE Modem is the top choice for charging electric vehicles today. It is designed for quick charging in both commercial and private locations.





Product Parameters

Technical specifications EF040CJ030
System
Housing material Metal enclosure

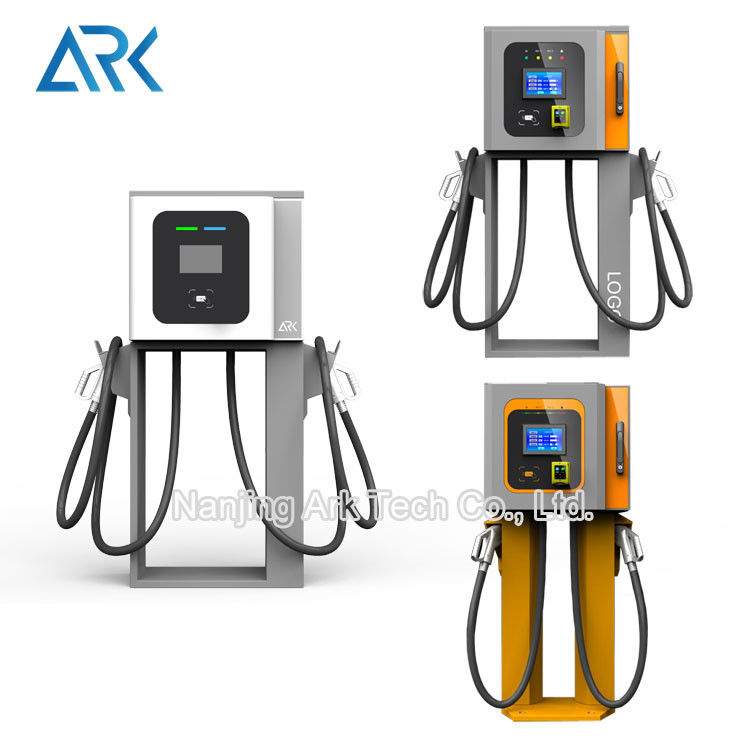

Dimension (H x W x D) 600 x 700 x 363mm, 1500 x 700 x 363mm (pedestal mount)

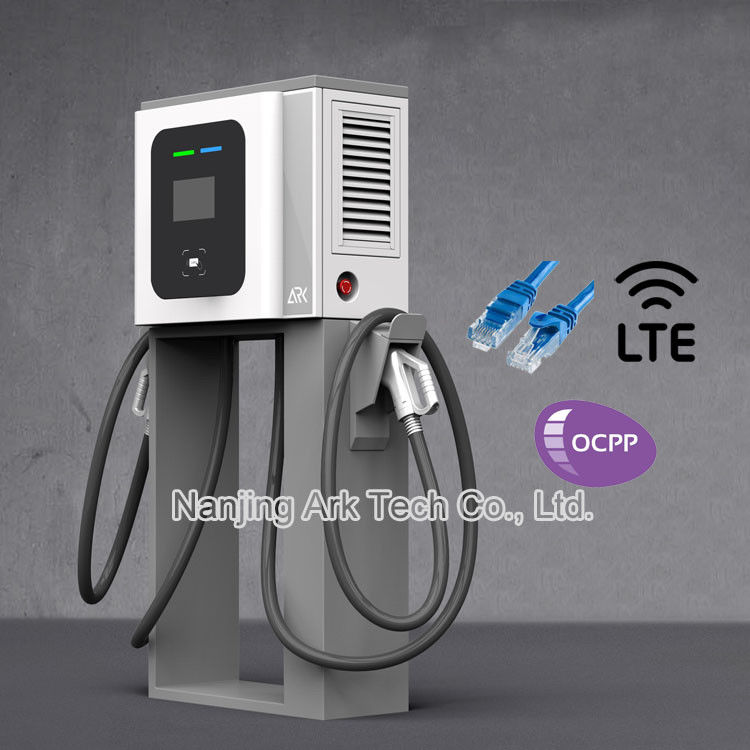

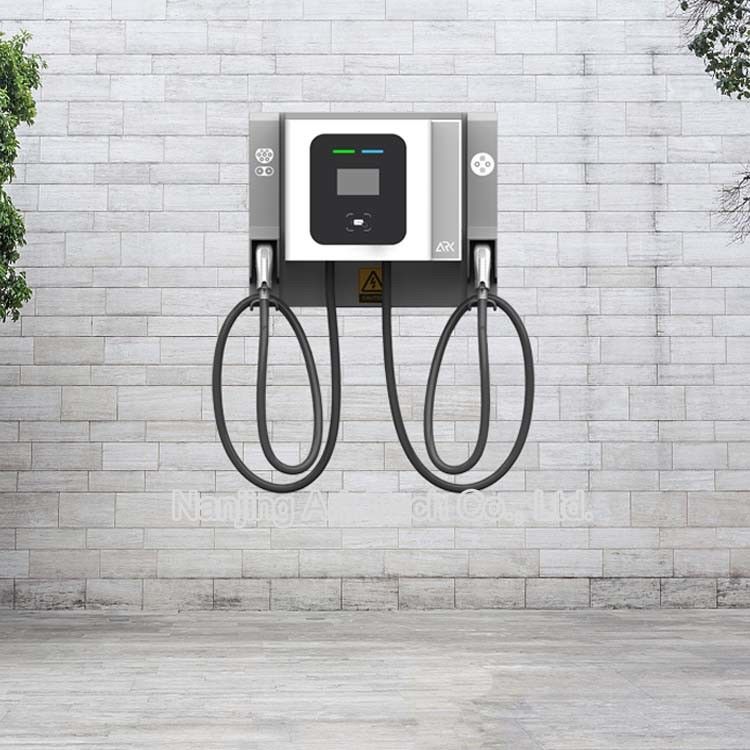

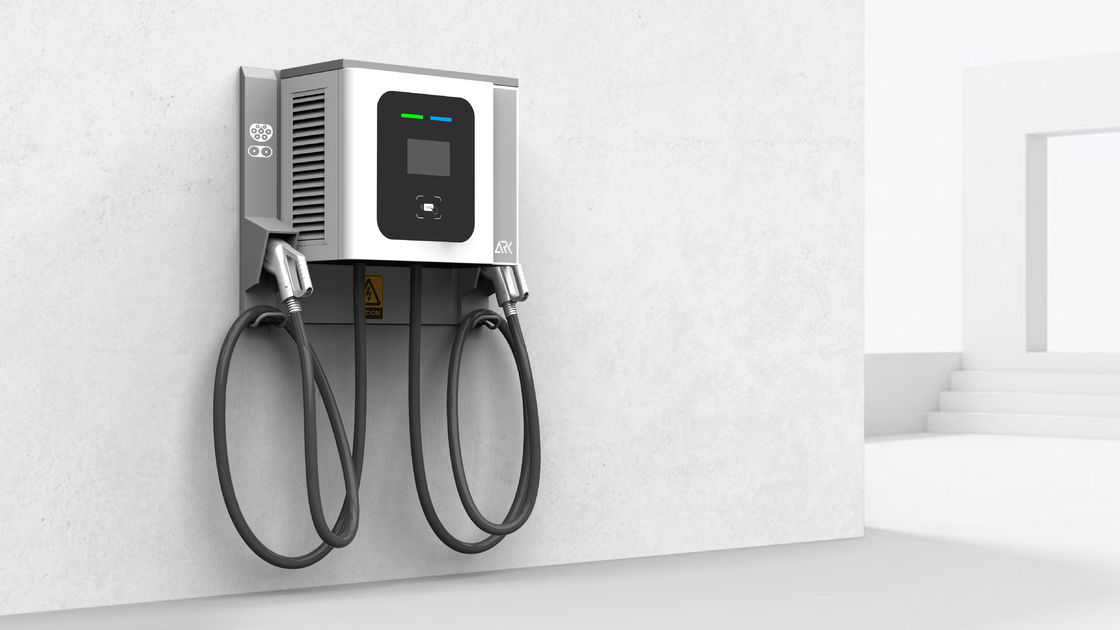

Installation method Wall mount, pedestal mount (optional)
Cable routing Bottom inlet, bottom outlet wiring
Weight N.W.: 95kgs, 120kgs (pedestal mount)
Charging standard IEC 61851, CHAdeMO
Charging outlet CHAdeMO JEVS G105, CCS Combo-2
Outlet number 2
Input
Input voltage 400Vac +/-10%, 3-phase
Input frequency 50Hz/60Hz
Power factor 0.99
Output
Rated output power CCS: 30kW, CHAdeMO: 30kW
Measuring accuracy Level 0.5
Output voltage range CCS: 150 – 1000V, CHAdeMO: 150 – 500V, DC constant rated output @ above 300V
Output current range 0 - 100A
Efficiency > 94% at rated output
General
Charging type Mode 4

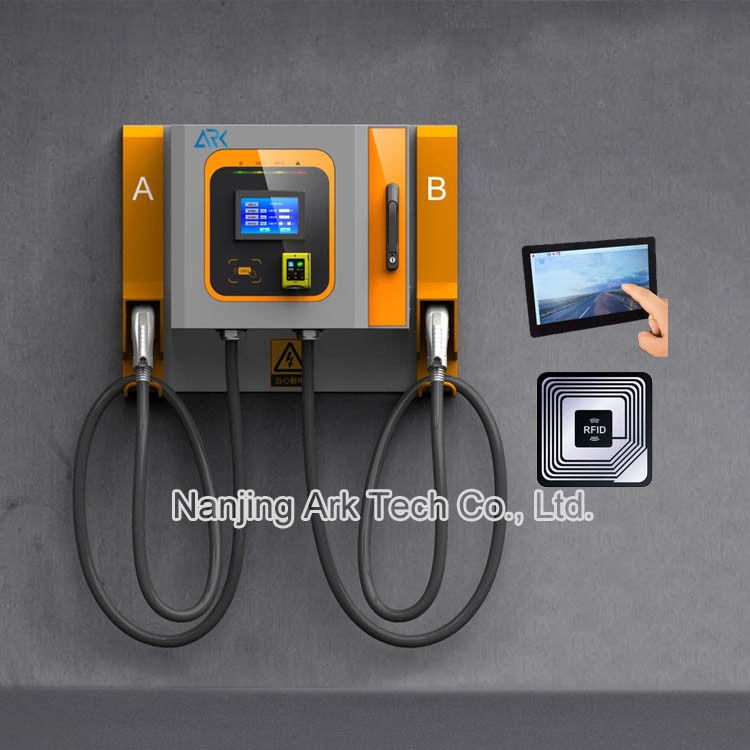

User Interface RFID, 7” touch screen, Emergency button
Ethernet 10/100 BaseTX (TCP-IP)

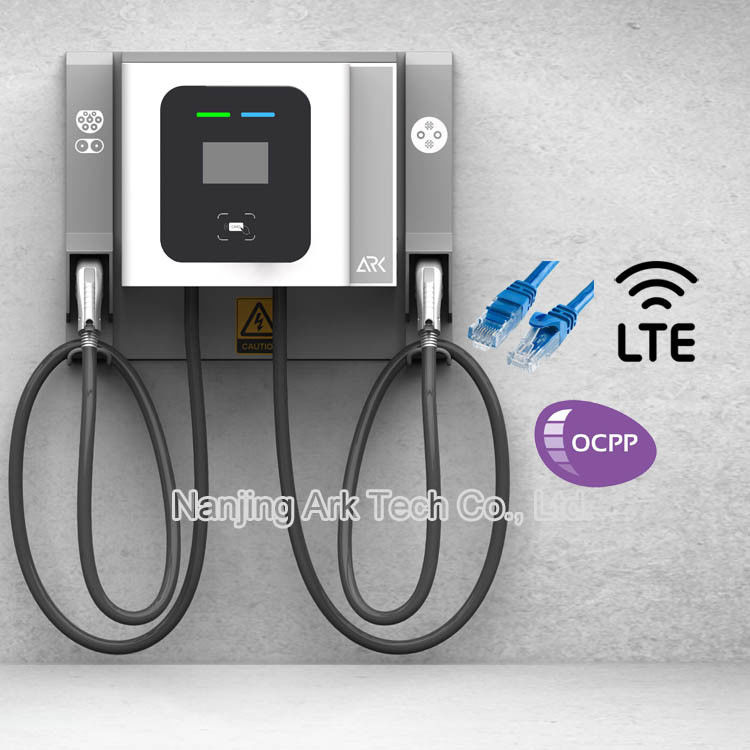

Cellular LTE modem, GPRS/3G/4G
Communication
CAN, PLC, OCPP 1.6 JSON
Application place Indoor/Outdoor
Working temperature -30 °C – +55 °C
Working humidity 5% – 95% non-condensation
Altitude < 2000m
Protection grade IP54
Cooling Fan cooling
Compliance EN 61851-1:2010, EN 61851-1:2017, IEC 61851-21-2:2018, EN 61851-23:2014, EN 61851-24:2014

Mobile 30KW IP54 Electric Vehicle DC Fast Charger Fan Cooling 0Mobile 30KW IP54 Electric Vehicle DC Fast Charger Fan Cooling 1




Features



Charging management function, HMI can display charging mode, charging current, charging voltage, charging time and charging information.

The charger can dynamically adjust the charging mode according to the charging voltage and current characteristics of BMS.

Intelligent power distribution function, when the failure of individual modules, modules can be separated without affecting the normal operation of the charger.

The charger has powerful overload, surge, overvoltage, undervoltage, short circuit, grounding, overheating, lightning, emergency shutdown and other protection functions, to avoid the accident damage caused by abnormal weather or power grid.





Application

Retail and mall parking spaces
Fleet charging stations
Workplaces
Residences, etc.




Company Introduction

Ark technology team's foresight can provide you with stable and reliable DC charging solutions and services. With rich experience and knowledge in the electrical and digital power fields, we will provide you with the most professional and practical project implementation guide. Our products have been tested to a variety of application scenarios and laboratory standards. You can rest assured to buy our charging station products, and get our professional service support.




FAQ

1. Why choose us as your preferred EV Charger supplier?

I. Professional technical team and long-term industry vision ensure that we are always in the leading position in the industry. We offer a wide selection of products: charging stations of various charging standards, internationally standardized designs, intelligent back-end services.

II. Our products have passed various application scenarios and laboratory standard tests. You can rest assured to buy our charging station products, and get our professional service support.

III. The only EV charger supplier in China that is willing and able to obtain CE and UL certification.

IV. Our team members are the first group of sales and engineers who develop and sell global standard electric vehicle DC chargers. They have rich experience in the implementation of global electric vehicle DC chargers and have the vision to lead electric vehicle charger products.



2. Is there any experience in implementing overseas charging station projects?

Yes, actually we are the pioneers in implementing overseas charger projects. Till now, we cooperate with UK power company to integrate EV charger with PV system, with US charging operator to install dozens of EV DC charger along the Freeway from LA to San Francisco, with GM automaker to provide DC fast charging service to their Bolt EV fleet and several charging projects.



3. What are the advantages of your products?

I. Telecom level product design and production.

II. Multiple charging standards support including CCS-1/2, CHAdeMO and GB/T, which means we can offer you all standards EV DC charger you want.

III. Quality comes first with wider input & output voltage range, lower voltage output range, better temperature adapted, higher protection grade, a longer technical foresight and most advanced modular design.

IV. Fast customer response, prefessional technical support and more solutions come out.



4. Can you explain the differences of global DC fast charging standards?

Till now, there are 5 kinds of DC fast charging standards: CCS-1, CCS-2. CHAdeMO, GB/T and Tesla.

CCS-1: DC fast charging standard for North America. Typical charging EVs: Chevy Bolt.

CCS-2: DC fast charging standard for Europe. Typical charging EVs: BMW i3, VW e-Golf, Porsche Mission-e.

CHAdeMO: DC fast charging standard for Japan. Typical charging EVs: Nissan Leaf.

GB/T: DC fast charging standard for China. Typical charging EVs: BYD, JAC, BAIC.

Tesla: DC fast charging standard for Tesla only. Typical charging EVs: Tesla Model S, Model X, Model 3.



5. Does the higher the charging station output power mean the faster the charging speed?

No, it doesn't. Due to the limited power of the car battery at this stage, when the output power of the DC charger reaches a certain upper limit, the larger power does not bring a faster charging speed.

However, the significance of high-power DC charger is that it can support dual connectors and simultaneously output high power to charge two electric vehicles at the same time, and in the future, when the electric vehicle battery is improved to support higher power charging, it is not necessary to invest money again to upgrade the charging station.
