|Housing material||Metal enclosure|
|Dimension (H x W x D)||300*450*160mm, 1200*450*160mm (pedestal mount)|

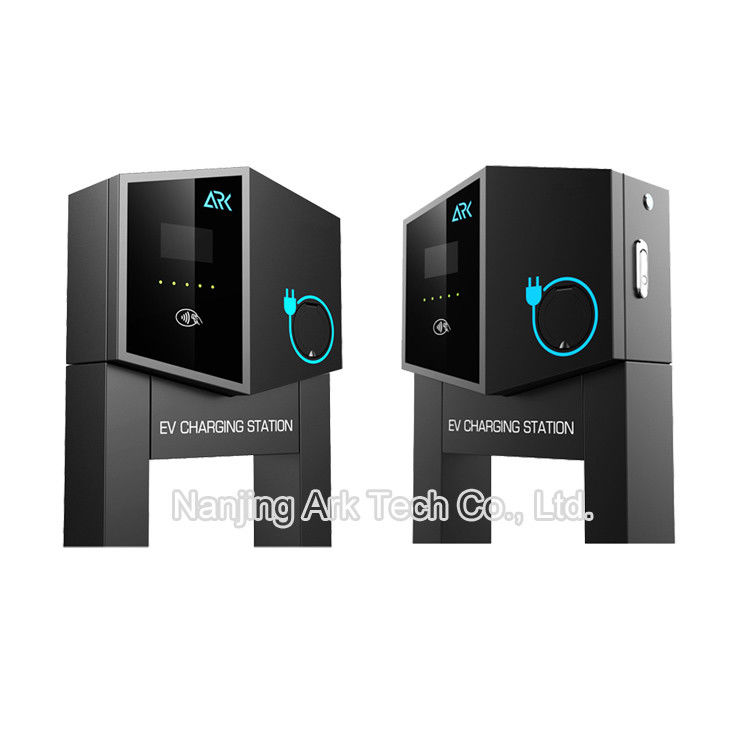

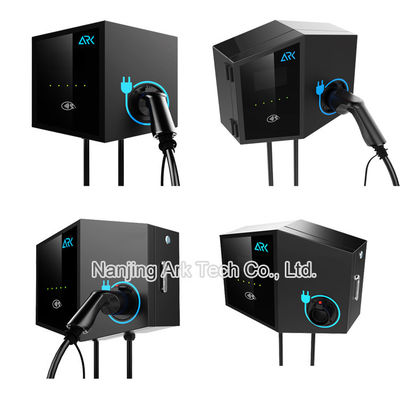

|Installation method||Wall mount, pedestal mount (optional)|
|Cable routing||Bottom inlet wiring|
|Charging standard||IEC 61851-22|
|Charging outlet||Type-2 socket or connector|
|Input voltage||230Vac +/-10% 1-phase||400Vac +/-10%, 3-phase|
|Max output power||7kW||22kW|
|Measuring accuracy||Level 0.5|
|Output voltage range||230Vac +/-10% 1-phase||400Vac +/-10%, 3-phase|
|Output current range||32A|
|RCCB||Type-B, sensitivity: 30mA|
|Charging type||Mode 3|
|User Interface||RFID, LCD Display|
|AC connector type||IEC 62196 Type-2|
|Communication||PWM, Ethernet, LTE, OCPP 1.6J|
|Working temperature||-30 °C – +50 °C|
|Working humidity||5% – 95% non-condensation|
|Safety standard||Compliant with CE, EN 61851-1-2001; EN 61851-21-2001; EN 61851-22-2001|
|Security design||Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection|
Ark technology team has a great vision, to provide you with stable and reliable DC charging solutions and services. With rich experience and knowledge of electrical and digital power supply, we will provide you with the most professional and practical project implementation guidance.
Our products have been tested to a variety of application scenarios and laboratory standards. You can rest assured to buy our charging station products, and get our professional service support.
I. The professional technical team and long-term vision of the industry ensure that we are always in the industry leading position. We offer a wide range of product options: charging stations for various charging standards, international standardization design, and smart back-end services.
II. Our products have passed various application scenarios and laboratory standard tests. You can buy our charging station products without any concerns and receive our professional service support.
III. The only Chinese EV Charger vendor who is willing and able to achieve CE and UL certificate currently.
IV. Our team members are the first batch of sales and engineers who is working in developing and selling global standard EV DC Charger which ensure we have plenty of experience implement global EV DC charger projects and have the foresight to lead EV charger products.
2. Is there any experience in implementing overseas charging station projects?
Yes, actually we are the first to implement the overseas charging project. Until now, we cooperate with British power company, electric car chargers integrated pv system, and we install many electric vehicle charging operators dc charging machine along the highway from Los Angeles to San Francisco, and general motors manufacturer provide dc fast charging their bolt electric vehicle fleet, and some fees.
3. What are the advantages of your products?
I. Telecom level product design and production.
II. Multiple charging standards support including CCS-1/2, CHAdeMO and GB/T, which means we can offer you all standards EV DC charger you want.
III. Quality comes first with wider input & output voltage range, lower voltage output range, better temperature adapted, higher protection grade, a longer technical foresight and most advanced modular design.
IV. Fast customer response, prefessional technical support and more solutions come out.
4. If we purchase your EV DC charger, how to get your after-sales support?
Under normal circumstances, we will provide comprehensive after-sales technical training, including providing written training materials, training videos or inviting customer's technical staff for face-to-face training to help customers master parts replacement and basic maintenance work. In case of emergency, we will also send professional and technical personnel to provide on-site support.
5. Does the higher the charging station output power mean the faster the charging speed?
No, it doesn't. Due to the limited power of the car battery at this stage, when the output power of the DC charger reaches a certain upper limit, the larger power does not bring a faster charging speed.
However, the significance of high-power DC charger is that it can support dual connectors and simultaneously output high power to charge two electric vehicles at the same time, and in the future, when the electric vehicle battery is improved to support higher power charging, it is not necessary to invest money again to upgrade the charging station.
