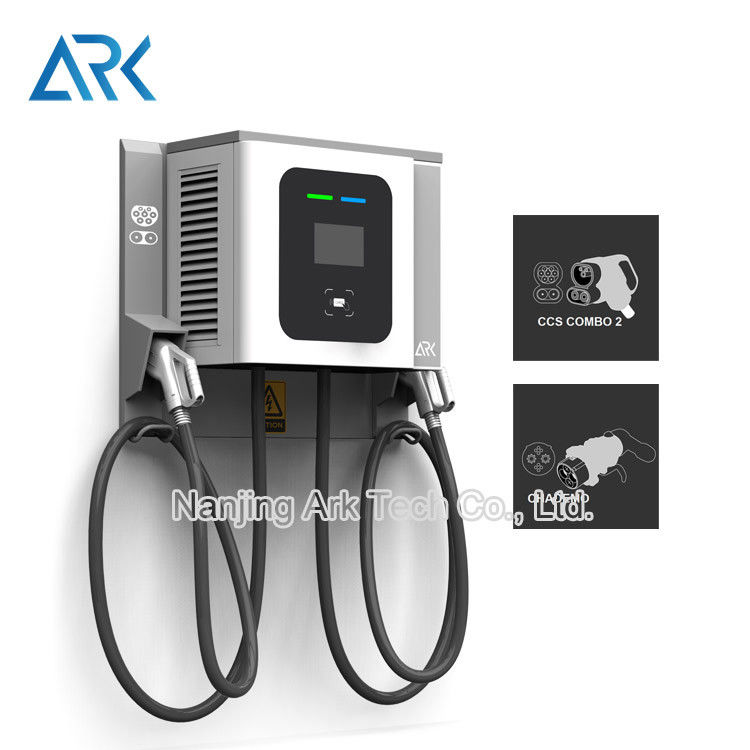

EF040CJ030 30kW DC fast EV charging station for electric vehicles, with CCS CHAdeMO dual connector and OCPP, can be used in commercial and private places (such as retail and shopping mall parking lots, fleet charging stations, highway service areas, workplaces, Residential) for fast charging, etc.
|Housing material||Metal enclosure|
|Dimension (H x W x D)||600 x 700 x 363mm, 1500 x 700 x 363mm (pedestal mount)|
|Installation method||Wall mount, pedestal mount (optional)|
|Cable routing||Bottom inlet, bottom outlet wiring|
|Weight||N.W.: 95kgs, 120kgs (pedestal mount)|
|Charging standard||IEC 61851, CHAdeMO|
|Charging outlet||CHAdeMO JEVS G105, CCS Combo-2|
|Input voltage||400Vac +/-10%, 3-phase|
|Rated output power||CCS: 30kW, CHAdeMO: 30kW|
|Measuring accuracy||Level 0.5|
|Output voltage range||CCS: 150 – 1000V, CHAdeMO: 150 – 500V, DC constant rated output @ above 300V|
|Output current range||0 - 100A|
|Efficiency||> 94% at rated output|
|Charging type||Mode 4|
|User Interface||RFID, 7” touch screen, Emergency button|
|Ethernet||10/100 BaseTX (TCP-IP)|
|Cellular||LTE modem, GPRS/3G/4G|
|Communication||CAN, PLC, OCPP 1.6 JSON|
|Working temperature||-30 °C – +55 °C|
|Working humidity||5% – 95% non-condensation|
|Compliance||EN 61851-1:2010, EN 61851-1:2017, IEC 61851-21-2:2018, EN 61851-23:2014, EN 61851-24:2014|
The 4.3 inch display and unique UI.
The LED status display.
Ethernet and LTE network
Wall mount and pedestal mount optional
Socket and cable outlet optional
OEM and branding service
I. The professional technical team and long-term vision of the industry ensure that we are always in the industry leading position. We offer a wide range of product options: charging stations for various charging standards, international standardization design, and smart back-end services.
II. Our products have passed various application scenarios and laboratory standard tests. You can buy our charging station products without any concerns and receive our professional service support.
III. The only Chinese EV Charger vendor who is willing and able to achieve CE and UL certificate currently.
IV. Our team members are the first batch of sales and engineers who is working in developing and selling global standard EV DC Charger which ensure we have plenty of experience implement global EV DC charger projects and have the foresight to lead EV charger products.
2. Is there any experience in implementing overseas charging station projects?
Yes, actually we are the pioneers in implementing overseas charger projects. Till now, we cooperate with UK power company to integrate EV charger with PV system, with US charging operator to install dozens of EV DC charger along the Freeway from LA to San Francisco, with GM automaker to provide DC fast charging service to their Bolt EV fleet and several charging projects.
3. What are the advantages of your products?
I. Telecom level product design and production.
II. Multiple charging standards support including CCS-1/2, CHAdeMO and GB/T, which means we can offer you all standards EV DC charger you want.
III. Quality comes first with wider input & output voltage range, lower voltage output range, better temperature adapted, higher protection grade, a longer technical foresight and most advanced modular design.
IV. Fast customer response, prefessional technical support and more solutions come out.
4. Can you explain the differences of global DC fast charging standards?
Till now, there are 5 kinds of DC fast charging standards: CCS-1, CCS-2. CHAdeMO, GB/T and Tesla.
CCS-1: DC fast charging standard for North America. Typical charging EVs: Chevy Bolt.
CCS-2: DC fast charging standard for Europe. Typical charging EVs: BMW i3, VW e-Golf, Porsche Mission-e.
CHAdeMO: DC fast charging standard for Japan. Typical charging EVs: Nissan Leaf.
GB/T: DC fast charging standard for China. Typical charging EVs: BYD, JAC, BAIC.
Tesla: DC fast charging standard for Tesla only. Typical charging EVs: Tesla Model S, Model X, Model 3.
5. Does the higher the charging station output power mean the faster the charging speed?
No, it doesn't. Due to the limited power of the car battery at this stage, when the output power of the DC charger reaches a certain upper limit, the larger power does not bring a faster charging speed.
However, the significance of high-power DC charger is that it can support dual connectors and simultaneously output high power to charge two electric vehicles at the same time, and in the future, when the electric vehicle battery is improved to support higher power charging, it is not necessary to invest money again to upgrade the charging station.
6. If we purchase your EV DC charger, how to get your after-sales support?
Under normal circumstances, we will provide comprehensive after-sales technical training, including providing written training materials, training videos or inviting customers' technical personnel to face-to-face training to help customers master parts replacement and basic maintenance work. When encountering an urgent situation, we will also send professional technicians to provide on-site support.
