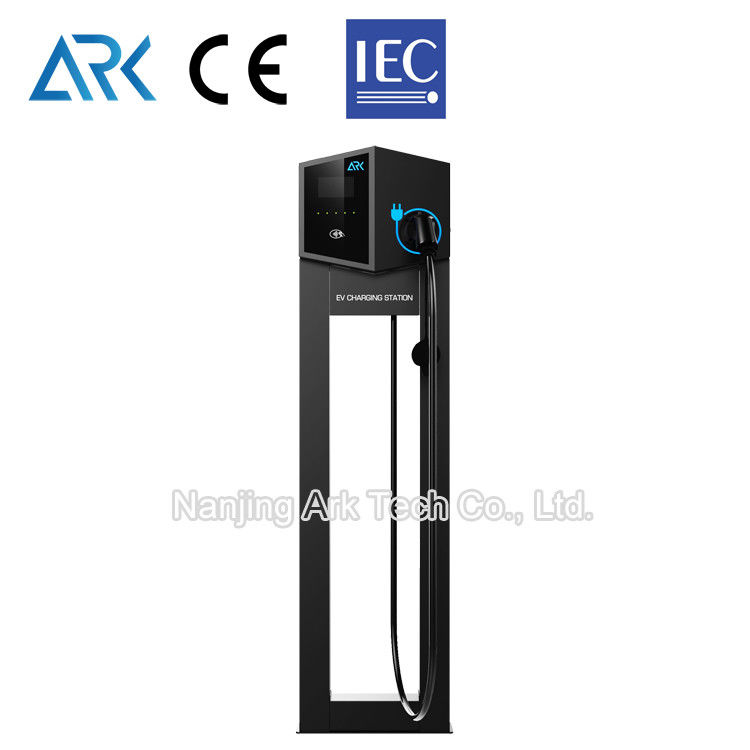

CE 32 Amp 400V Three Phase Commercial EV Charger

CE 32 Amp 400V Three Phase Commercial EV Charger

  • High Light

    Three Phase Commercial EV Charger

    ,

    400V Commercial EV Charger

    ,

    32A electric car charging stations

  • Housing Material
    Metal Enclosure
  • Input Voltage Range
    400Vac +/-10%, 3-phase
  • Installation Method
    Wall Mount, Pedestal Mount (optional)
  • Output Voltage Range
    400Vac +/-10%, 3-phase
  • Max Output Power
    22kw
  • Output Current Range
    32A
  • Input Frequency
    50Hz/60Hz
  • RCCB
    Type-B, Sensitivity: 30mA
  • Place of Origin
    Jiangsu,China
  • Brand Name
    ARK or OEM
  • Certification
    CE
  • Model Number
    AEEV22
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    Carton
  • Delivery Time
    45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000 units per month

CE 32 Amp 400V Three Phase Commercial EV Charger

CE Approved 22KW Electric Vehicle Charger Station Car Charging Station For EV

Product Introduction



With a modern design, the AKEV22 AC charger can be used for commercial and public charging. Embedded RFID, Ethernet and LTE capabilities are best suited for charging applications in malls and companies. It complies with OCPP1.6J protocol and can be connected to the global electric vehicle charging management platform.




Product Parameters




Technical specifications AKEV22
System
Housing material Metal enclosure
Dimension (H x W x D) 300*450*160mm, 1200*450*160mm (pedestal mount)
Installation method Wall mount, pedestal mount (optional)
Cable routing Bottom inlet wiring
Weight N.W.: 11kg
Charging standard IEC 61851-22
Charging outlet Type-2 socket or connector
Outlet number 1
Input
Input voltage 230Vac +/-10% 1-phase 400Vac +/-10%, 3-phase
Input frequency 50Hz/60Hz
Output
Max output power 7kW 22kW
Measuring accuracy Level 0.5
Output voltage range 230Vac +/-10% 1-phase 400Vac +/-10%, 3-phase
Output current range 32A
RCCB Type-B, sensitivity: 30mA
General
Charging type Mode 3
User Interface RFID, LCD Display
AC connector type IEC 62196 Type-2
Communication PWM, Ethernet, LTE, OCPP 1.6J
Application place Indoor/Outdoor
Working temperature -30 °C – +50 °C
Working humidity 5% – 95% non-condensation
Altitude <2000m
Protection grade IP55
Cooling Natural cooling
Safety standard Compliant with CE, EN 61851-1-2001; EN 61851-21-2001; EN 61851-22-2001
Security design Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection



CE 32 Amp 400V Three Phase Commercial EV Charger 0CE 32 Amp 400V Three Phase Commercial EV Charger 1




Features

Support outlet of connector and socket to meet
different customer requirements. Socket outlet in
the front ensures that customers can easily
charging even if it is wall-mounted

The self-reset function of the leakage protection
built in the charger eliminates the need for
operators to go to the site for maintenance. Improve
operation efficiency and reduce extra labor waste.




Application

Residential
Shopping mall
Company charging




Company Introduction

Since our team was founded in 2016, we have always been committing to the issue of convenient charging. We hope to provide the best performance charging solution for electric vehicle owners around the world and provide easy and convenient guarantee for electric vehicle travel.
With our team's deep experience in electric vehicle charging solutions, we can provide global full-standard AC and DC EV charging solutions and cloud management platform. We have the ability to provide our global customers with reliable and compatible EV charging equipment solutions and a management system that allows electric vehicles to access charging equipment easily.
To provide easy and convenient guarantee for electric vehicle travel, we will always be on the road!




FAQ

1. Why choose us as your preferred EV Charger supplier?

I. The professional technical team and long-term vision of the industry ensure that we are always in the industry leading position. We offer a wide range of product options: charging stations for various charging standards, international standardization design, and smart back-end services.

II. Our products have passed various application scenarios and laboratory standard tests. You can buy our charging station products without any concerns and receive our professional service support.

III. The only Chinese EV Charger vendor who is willing and able to achieve CE and UL certificate currently.

IV. Our team members are the first batch of sales and engineers who is working in developing and selling global standard EV DC Charger which ensure we have plenty of experience implement global EV DC charger projects and have the foresight to lead EV charger products.



2. Is there any experience in implementing overseas charging station projects?

Yes, actually we are the pioneers in implementing overseas charger projects. Till now, we cooperate with UK power company to integrate EV charger with PV system, with US charging operator to install dozens of EV DC charger along the Freeway from LA to San Francisco, with GM automaker to provide DC fast charging service to their Bolt EV fleet and several charging projects.



3. What are the advantages of your products?

I. Telecom level product design and production.

II. Multiple charging standards support including CCS-1/2, CHAdeMO and GB/T, which means we can offer you all standards EV DC charger you want.

III. Quality comes first with wider input & output voltage range, lower voltage output range, better temperature adapted, higher protection grade, a longer technical foresight and most advanced modular design.

IV. Fast customer response, prefessional technical support and more solutions come out.



4. Can you explain the differences of global DC fast charging standards?

Till now, there are 5 kinds of DC fast charging standards: CCS-1, CCS-2. CHAdeMO, GB/T and Tesla.

CCS-1: DC fast charging standard for North America. Typical charging EVs: Chevy Bolt.

CCS-2: DC fast charging standard for Europe. Typical charging EVs: BMW i3, VW e-Golf, Porsche Mission-e.

CHAdeMO: DC fast charging standard for Japan. Typical charging EVs: Nissan Leaf.

GB/T: DC fast charging standard for China. Typical charging EVs: BYD, JAC, BAIC.

Tesla: DC fast charging standard for Tesla only. Typical charging EVs: Tesla Model S, Model X, Model 3.



5. Does the higher the charging station output power mean the faster the charging speed?

No, it doesn't. Due to the limited power of the car battery at this stage, when the output power of the DC charger reaches a certain upper limit, the larger power does not bring a faster charging speed.

However, the significance of high-power DC charger is that it can support dual connectors and simultaneously output high power to charge two electric vehicles at the same time, and in the future, when the electric vehicle battery is improved to support higher power charging, it is not necessary to invest money again to upgrade the charging station.



6. If we purchase your EV DC charger, how to get your after-sales support?

Under normal circumstances, we will provide comprehensive after-sales technical training, including providing written training materials, training videos or inviting customers' technical personnel to face-to-face training to help customers master parts replacement and basic maintenance work. When encountering an urgent situation, we will also send professional technicians to provide on-site support.
