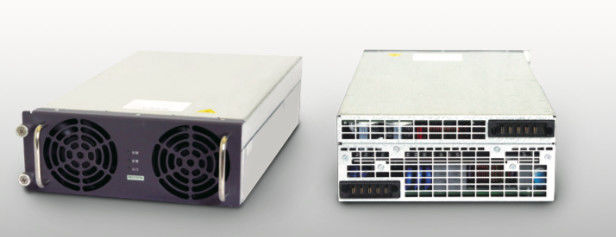

AC DC Converter 15KW 150-550V CCS CHAdeMO EV Power Module

AC DC Converter 15KW 150-550V CCS CHAdeMO EV Power Module

  • High Light

    CHAdeMO EV Power Module

    ,

    CCS EV Power Module

    ,

    550V ev charger power module

  • Input Voltage
    260V To 530V
  • Output Voltage
    150-550V
  • Type
    AC/DC Converters
  • Output Type
    Single
  • Output Current
    0 To 37.5A
  • Weight
    <11kg
  • Communication
    CAN BUS
  • Cooling
    Fan Cooling
  • Certificate
    CE TUV
  • Place of Origin
    China
  • Brand Name
    ARK
  • Certification
    CE
  • Model Number
    AREG50040G
  • Minimum Order Quantity
    5unit
  • Price
    1100USD/unit
  • Packaging Details
    Carton
  • Delivery Time
    15 days
  • Payment Terms
    T/T
  • Supply Ability
    1000 units per month

AC DC Converter 15KW 150-550V CCS CHAdeMO EV Power Module

Product Introduction

Ark AREG50040 EV DC Charging Module Power Supply AC/DC Converter with 15KW Output, CAN Communication and CCS CHAdeMO Compliant

Ark AREG50040 EV DC Charging Module Power Supply AC/DC Converter with 15KW Output, CAN Communication and CCS CHAdeMO Compliant is specially developed for the electrical vehicle DC fast charging. It has high efficiency, power factor, high energy density, and good reliability advantages. 3 phase without neutral AC input, DC output voltage range from 150 to 550VDC, 15kW output power, compliant with CE safety requirements, EMC standard EN55022 CLASS A, it is an advanced international level charging rectifier and converter.



Unique Functions:
(1) Wider output voltage range: 150-550VDC, suitable for all EVs
(2) More power output in low voltage, 25% bigger than others
(3) A patent intelligent discharge circuit inside, improve the system reliability and simplify the system design
(4) High temperature adapted: full power output at 55 ℃
(5) High efficiency in all level load, full load efficiency above 95.5%
(6) Low standby power consumption, less than 10W



Main Features:
(1) 3-phase without neutral input, eliminate the large neutral current risk
(2) 3-phase active power factor correction technology, reduce the harmonic interface to the grid
(3) Dual DSP design, achieve the full digital control, fewer components means higher reliability
(4) Widest input voltage range in the industry: 260-530VAC, operates in most grid, even the poor ones
(5) Wider range of operation temperature: -40 ℃-+75 ℃
(6) Considering salt fog resistance, moisture and mildew resistant design, achieve strong environmental adaptability
(7) Hot plug-in design, easy to install

Product Parameters
Specification
Model
AREG50040
Structure
Application scenes
DC fast EV charging
Housing material
Metal case
Dimension
226 x 395 x 84mm (LxWxH)
Installation method
Pluggable type
Cables
AREG15KW1 cables/black 1.8m 10AWG power cable-input and output
Weight
≤ 10kg
Electrical specifications
Input voltage
260 - 530Vac 3-phase
Input frequency
45 - 65Hz
Rated power
15kW
Output voltage
150 - 550Vdc
Output current
0 - 37.5Aac
Efficiency
≥ 95.5%
Power factor
≥ 0.99
Function design
User interface
Green led: normal operation, Yellow led: alarm, Red led: failure
Charging standards
CCS-1/2, CHAdeMO, GB/T
Communication
CAN BUS
Environment condition
Application place
Indoor/Outdoor
Working temperature
-20°C ~ +75°C, above 55°C output derating
Working humidity
5% ~ 95% without condensation
Altitude
<2000m
Storage temperature
-40°C ~ +75°C
Cooling
Fan cooling
MTBF
>500,000h
Safety standards
CE, TUV

Performance index curve:
